User Manual for CHAUVET DJ Freedom Flex H4 IP Kit with Six Lights and Charging Case Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Freedom Flex H4 IP
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ Freedom Flex H4 IP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|
Product description - Freedom Flex H4 IP X6 by CHAUVET DJ

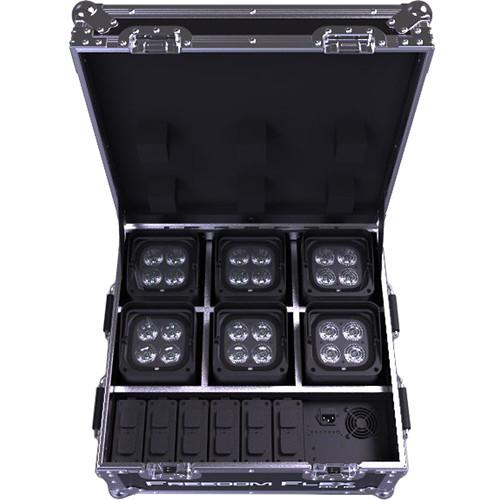

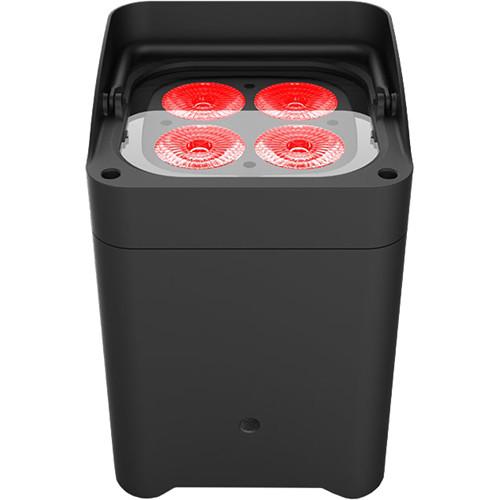

The Freedom Flex H4 IP Kit includes six Freedom Flex H4 IP fixtures, six quick-change battery packs, and a rugged road case with built-in charger. The fixtures are 100% wireless, battery-operated pars with built-in D-Fi transceivers. They have hex-color (RGBAW + UV) LED technology for unlimited color mixing capabilities. The fixtures are outdoor-rated and have a robust housing that repels water, snow, dirt, and sand for all-weather applications. Freedom Flex H4 IP has multiple wireless triggering and control options via the FlareCON Air and the FlareCON app, and it works in master/slave mode with any Freedom Par. - Swappable battery pack ensures the fixture is always ready to go

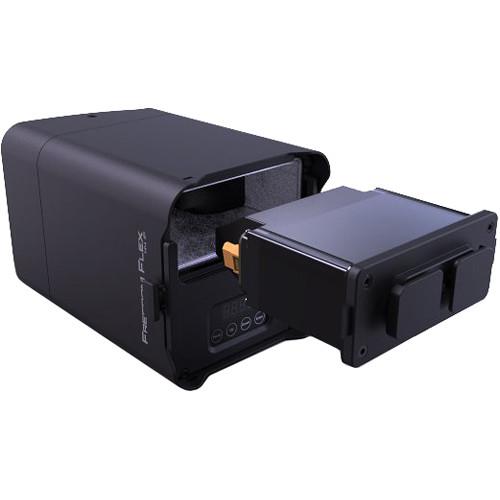

- Charging road case simultaneously charges and holds six batteries
- Shine light where it is needed using the built-in adjustable kickstand
- Convenient, wireless non-DMX control using the IRC-6 remote
- Achieve smooth LED fading with built-in dimming curves
- Compact and lightweight design easily integrates into TRUSST setups
UPC: 781462217297 In the Box CHAUVET DJ Freedom Flex H4 IP Kit with Six Lights and Charging Case 6 x Freedom Flex Battery zdqzrdc Power Cord IRC-6 Infrared Remote Control 6 Charging Road Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Freedom Flex H4 IP Kit with Six Lights and Charging Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Freedom Flex H4 IP Specs | DMX Channels | 6, 8, or 12 | | Light Source | 4 x LEDs (hex-color RGBAW + UV) 10 W, 2 A | | LED Life Expectancy | 50,000 hours | | Max Distance | 600' / 182.9 m | | Strobe Rate | 0 to 30 Hz | | PWM Frequency | 1.2 kHz | | Beam Angle | 23° | | Field Angle | 34° | | Recharge Time | 6 hours | | Illuminance | 2163 lux at 6.6' / 2 m | | Maximum Runtime | Single Color: Up to 20 hours
All Colors On: Up to 8 hours | | Temperature | Startup: 32 to 122°F / 0 to 50°C
Operating: -4 to 140°F / -20 to 60°C | | Bracket Mounting | M12 hole | | IP Rating | IP54 | | Approvals | CE, FCC | | Wheel Size | Road Case Wheel: 3" / 76.2 mm | | Dimensions | LED Fixture: 5.7 x 5.4 x 8.0" / 14.5 x 13.8 x 20.4 cm
Road Case: 60.3 x 58.6 x 11.7" / 153.2 x 148.8 x 30.0 cm | | Weight | LED Fixture: 8.8 lb / 4 kg
Road Case: 51.4 lb / 23.3 kg | | | | Package Weight | 100.0 lb | | Box Dimensions (LxWxH) | 22.0 x 20.0 x 12.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
