Product description - CHAUVET DJ Freedom H1 in White

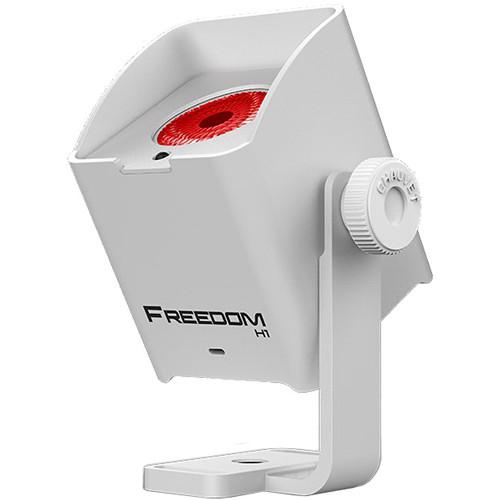

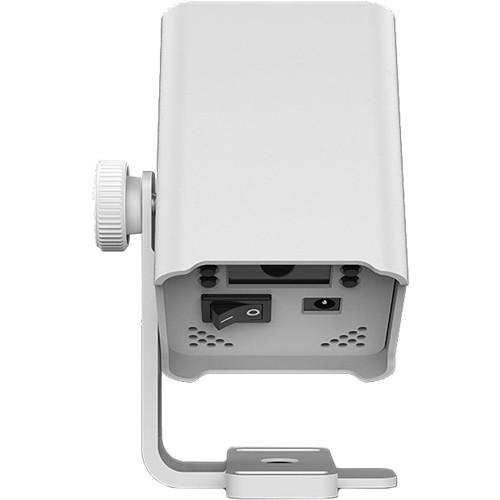

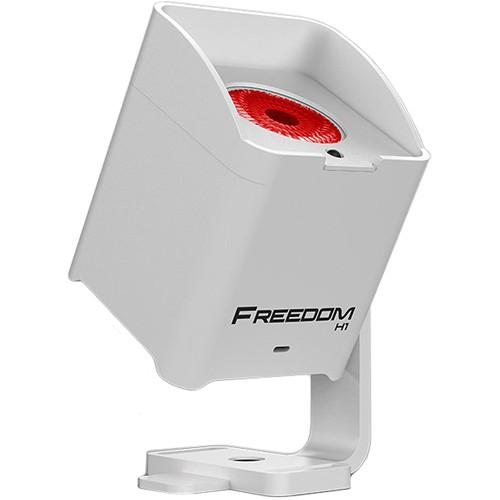

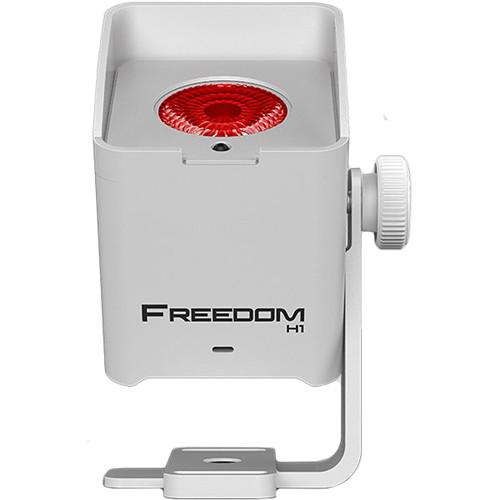

The CHAUVET DJ Freedom H1 is a battery-powered, true-wireless LED wash light system designed for uplighting, downlighting, and accent lighting applications, in clubs, event spaces, and more. It comprises four 10W, single-Hex RGBAW+UV (red, green, blue, amber, white + ultraviolet) LED fixtures with white housings, four diffusers with magnetic gel holders, a multi charger, an IRC-6 wireless remote, and a bag to conveniently store and carry the system to your gig or event. Lightweight (at 1.4 lb) and compact, the fixtures are easy to set up. With a rechargeable, built-in battery that lasts up to 8 hours on a full charge, a built-in wireless D-Fi transceiver, and a magnetic base that allows for quick mounting to most metal surfaces, mobile DJs can quickly position their washes anywhere in the venue without running DMX cables and regardless of power-outlet availability. The Freedom H1 can be used as a standalone controlled via the LED display with 4-button menu or using the IRC-6 wireless remote. Wireless DMX control is also available with three channel modes. - Key Features
-
- 4 x 100% true-wireless, battery-operated, H1 LED wash light fixtures
- 4 x diffusers
- Multi charger

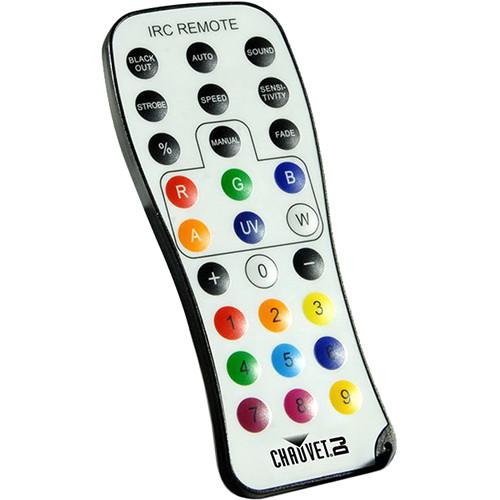

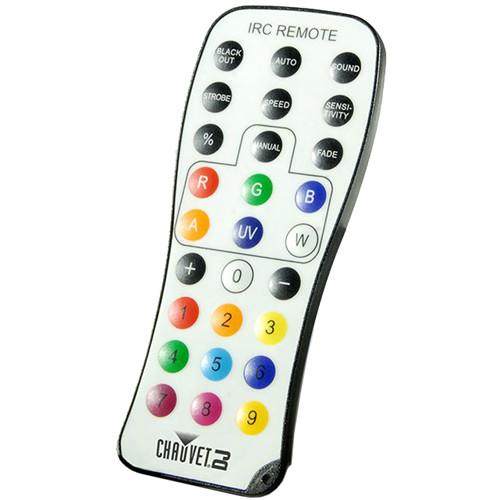

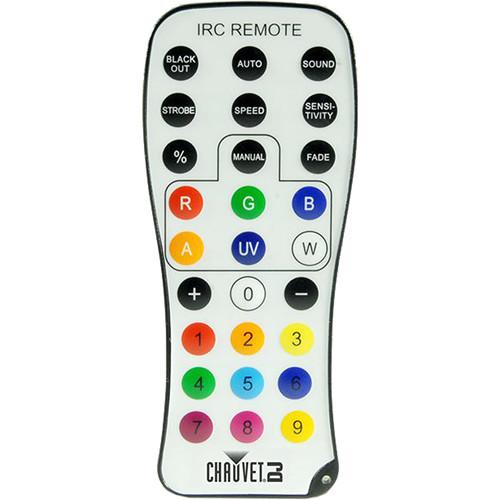

- IRC-6 wireless remote
- Carry bag
- One 10W (6-in-1) RGBAW+UV (red, green, blue, amber, white, ultraviolet) Hex LED per fixture
- Compact size provides effortless transport and set-up
- Magnetic base to easily mount light to most metal surfaces
- Quick swapping of filters and gradients with the included magnetic gel holder
- Multiple control options include standalone, wireless DMX, and IR remote
- Built-in D-Fi transceiver
- Digital display for easy control and adjustment of all settings
- Built-in Kensington security slot prevents theft
UPC: 781462218201 In the Box CHAUVET DJ Freedom H1 Battery-Powered Wireless LED Wash Light System (4 Fixtures, White Housing) 4 x Freedom H1 LED Wash Lights 4 x Diffusers Multi Charger IRC-6 Infrared Remote Control 6 tqyaczqqezwttwwsxaxaacfbxzw Carry Bag Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Freedom H1 Battery-Powered Wireless LED Wash Light System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Freedom H1 Specs | Light Source | 1 x 10 W RGBAW+UV (6-in-1) Hex LED (red, green, blue, amber, white, UV), 3 A
50,000-hour life expectancy | | Beam Angle | 21° | | Field Angle | 32° | | Illuminance | With Filter: 268 lux at 6.6' / 2 m
Without Filter: 314 lux at 6.6' / 2 m | | Operating Frequency | 2.412 to 2.484 GHz | | DMX Channels | 6, 8, or 12 | | Strobe Rate | 0 to 25 Hz | | Input Voltage | 8.4 VDC, 1.5 A
External Power Supply: 100-240 VAC, 50/60 Hz | | Battery | Maximum Run Time:
8 hours (all on)
20 hours (single color)
Recharge Time:
7 hours | | Housing | White | | Bracket Mounting | M12 hole | | Approvals | CE, FCC | | Dimensions | 3.8 x 3.0 x 8.5" / 9.7 x 7.6 x 21.6 cm | | Weight | 1.4 lb / 0.6 kg | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 20.0 x 13.5 x 5.0" |
