Product description - Freedom Par Hex-4 by CHAUVET DJ

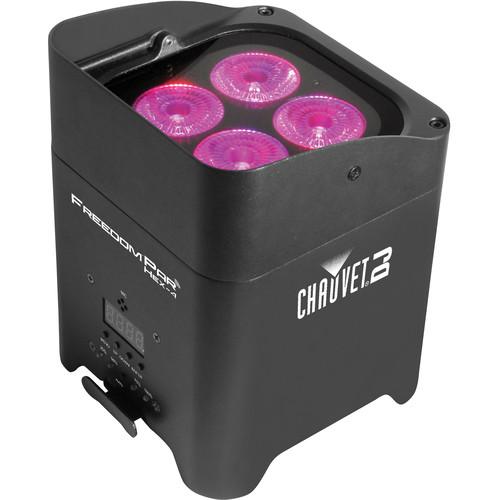

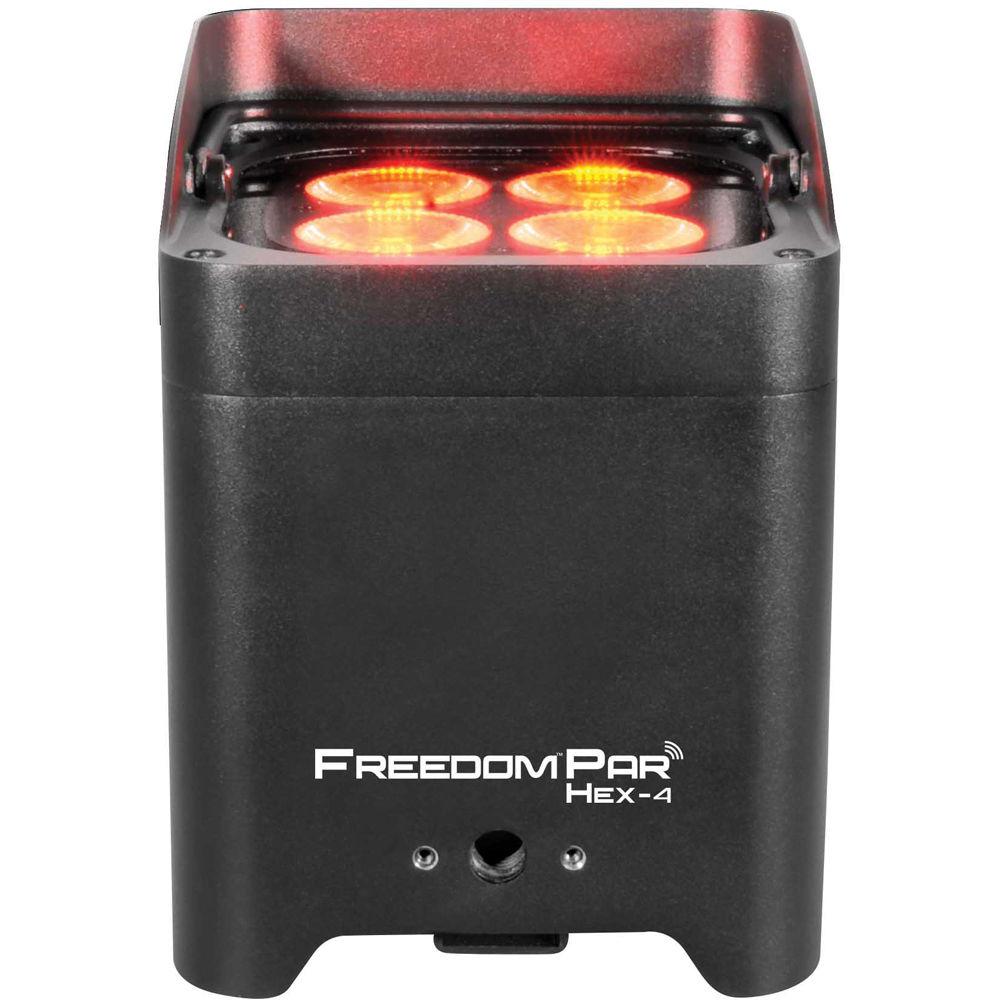

The black battery-powered Freedom Par-Hex 4 LED Light from Chauvet is the most colorful model in the next generation of the Freedom Par family. It has four 5.7W RGBAW+UV LEDs for that extra punch and the special effects that white and UV add to color mixing and a 23° beam angle. Remote control is possible via DMX or the included wireless remote control. The Freedom Par Hex-4 has a special limiter option for extending battery life for longer shows when you use more than 4 colors. Up to 26 units can be power-linked to reduce cabling. - Benefits
-
- 100% True wireless, battery-operated, hex-color (RGBAW+UV) LED Par with built-in D-Fi transceiver
- Multiple wireless triggering and control options via the FlareCON Air and the FlareCON app
- Works in Master/Slave with first-generation Freedom Pars

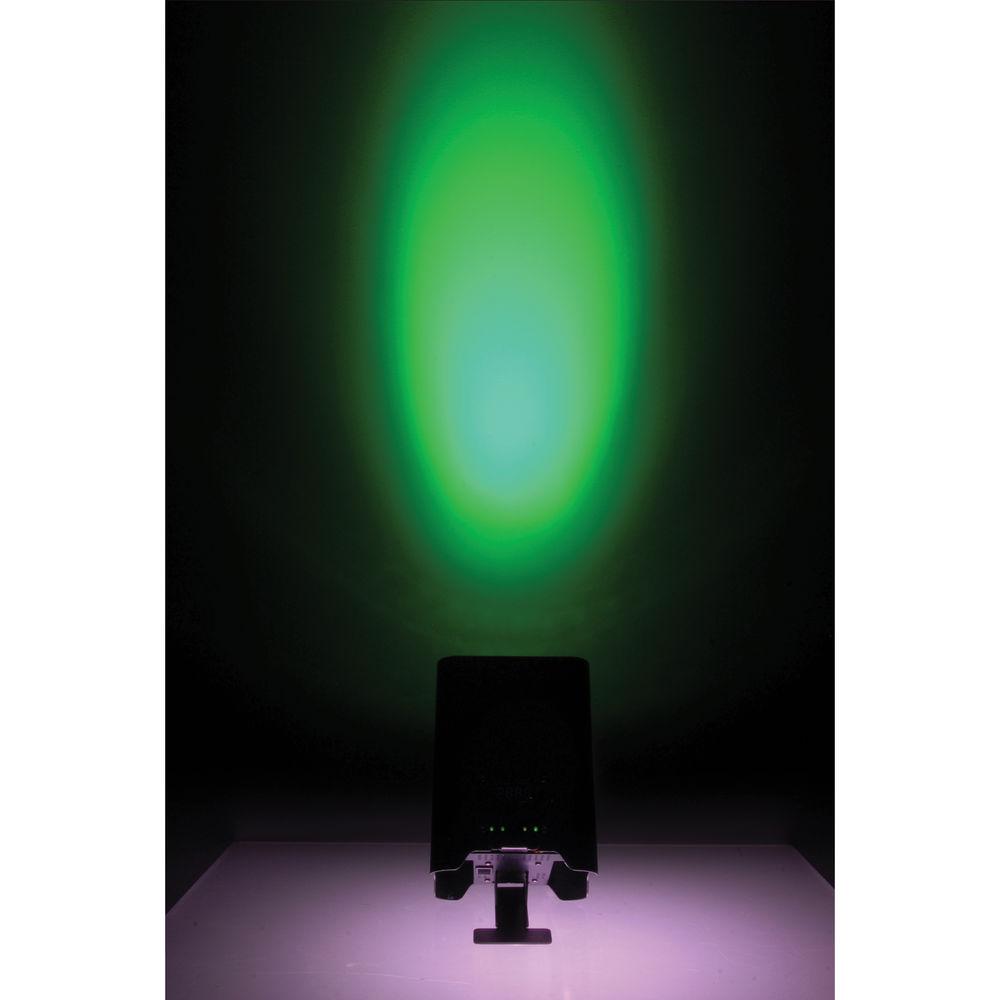

- Shine light where it is needed using the built-in adjustable kickstand
- Built-in glare shield prevents light spillage
- Extend the battery's lifespan with built-in discharge protection
- Convenient, wireless non-DMX control using the IRC-6 remote
- Create customized colors using the built-in LED display
- Achieve smooth LED fading with built-in dimming curves
- Safely store and transport your fixtures from gig to gig in the optional CHS-FR4 carry bag
- Compact and lightweight design easily fits inside sticks of TRUSST members
- Increase battery run time with built-in limiter circuitry that conserves energy when over 4 colors are in use simultaneously
UPC: 781462212230 In the Box CHAUVET DJ Freedom Par-Hex 4 LED Light (Black) Power Cord IRC-6 Infrared Remote Control 6 Quick Reference Guide Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Freedom Par-Hex 4 LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Freedom Par Hex-4 Specs | Light Source | 4 LEDs (hex-color RGBAW+UV) 5.7 W, (2.3 A), 50,000 hours life expectancy | | DMX Interface | DMX channels modes: 6, 8, 12

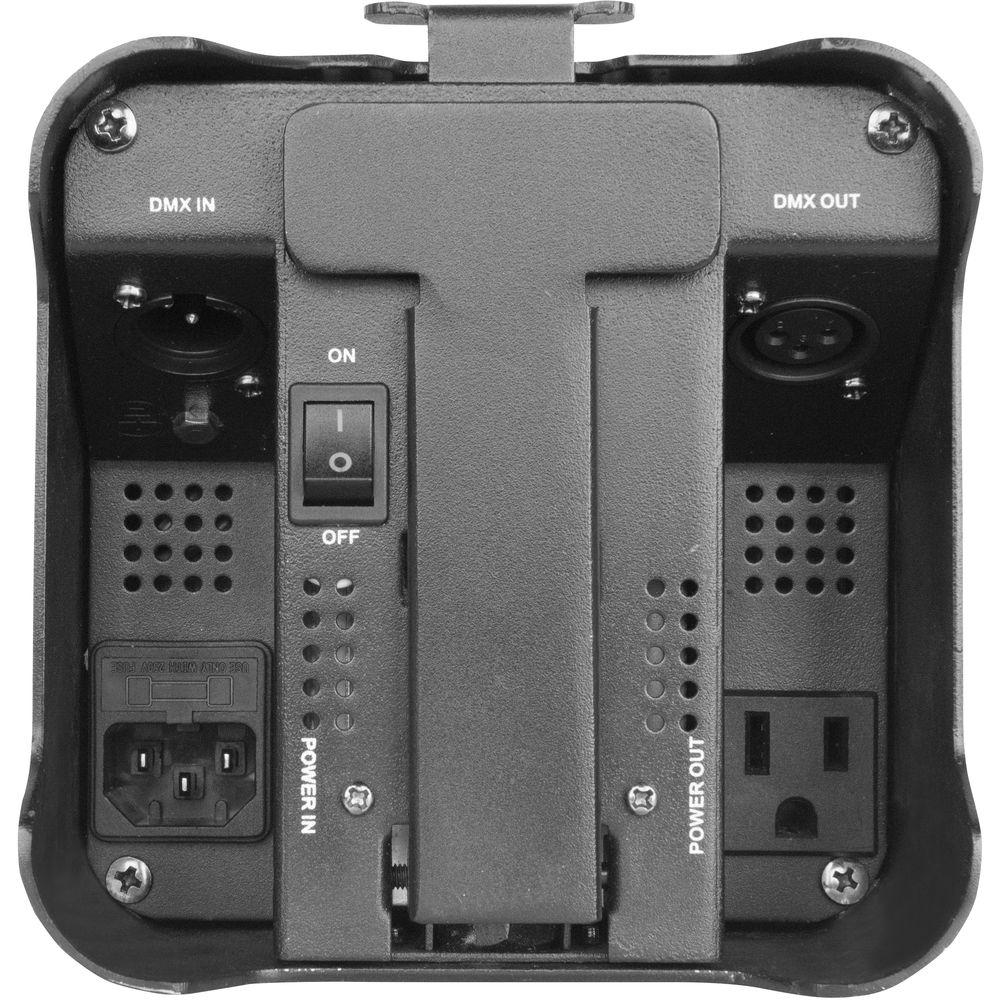

DMX connectors: 3-pin XLR | | Programs | No | | Beam and Field Angle | Beam angle: 23°
Field angle: 34° | | Operating Frequency | 2.433 to 2.481 GHz | | Light Intensity | 1,272 lux @ 6.56' (2.0 m) | | Dimming | Yes | | Strobe Rate | 0 to 25 Hz, electronic | | Connectors | Edison plug | | Power Linking | 26 Units @ 120 VAC
50 units @ 230 VAC | | Power Requirements | Auto-switching 100-240 VAC, 50/60 Hz (charging) | | Battery | Charge time: 6.0 hr
Run time: 8.0 hr with all colors on, 20 hr with single color | | Power and Current | At 120 VAC, 60 Hz: 35 W, 0.3 A
At 230 VAC, 50 Hz: 34 W, 0.2 A | | Approvals | CE, FCC | | Dimensions | 7.2 x 5.7 x 5.4" (184 x 145 x 138 mm) | | Weight | 6.2 lb (2.8 kg) | | | | Package Weight | 7.45 lb | | Box Dimensions (LxWxH) | 9.6 x 8.9 x 7.8" |
