Product description - Freedom Par Tri-6 and Freedom Par Quad-4 by CHAUVET DJ

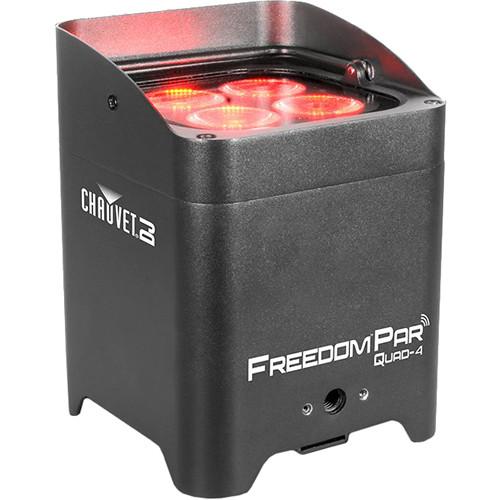

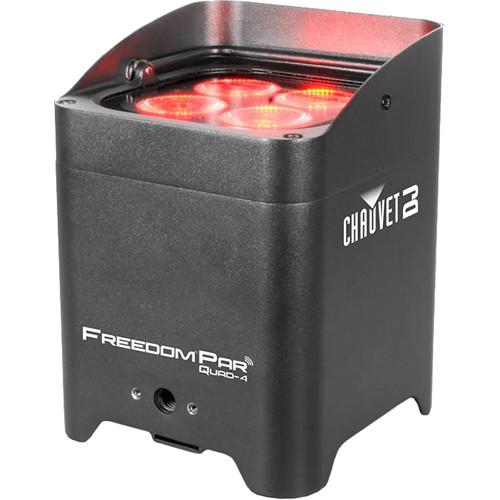

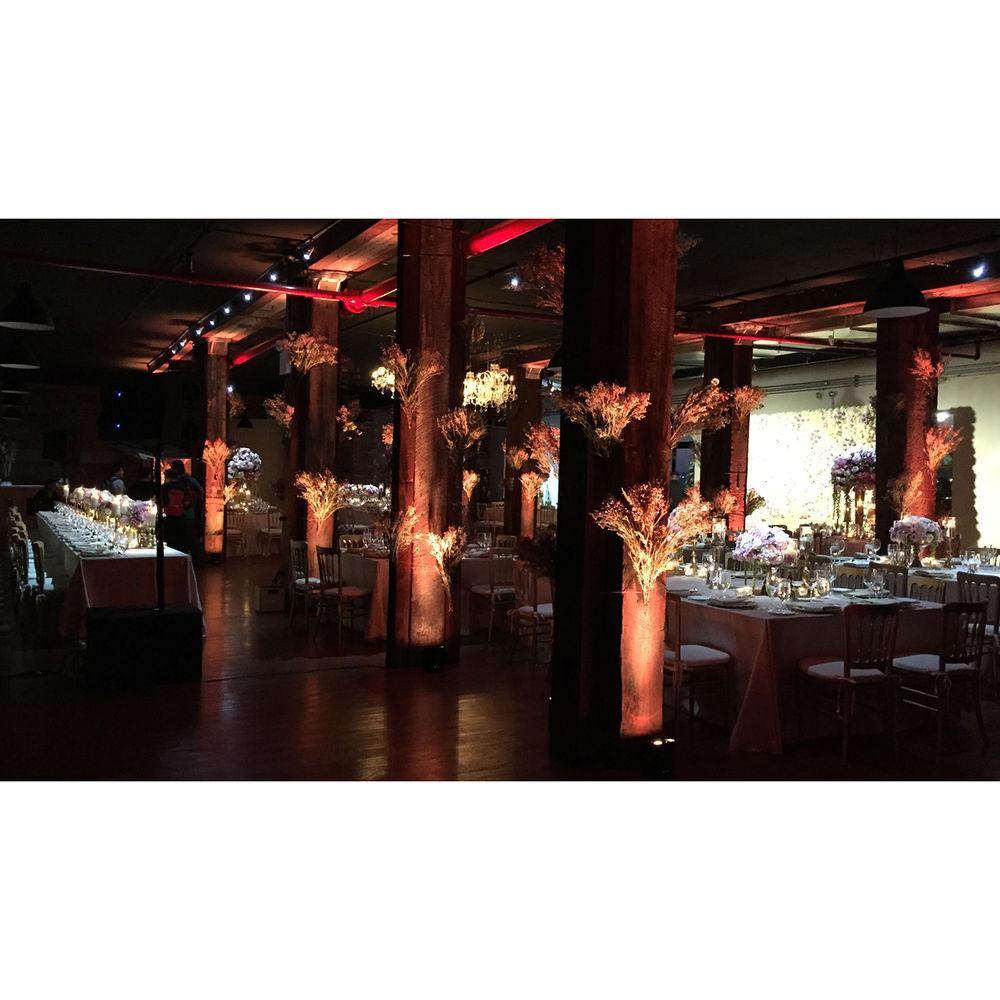

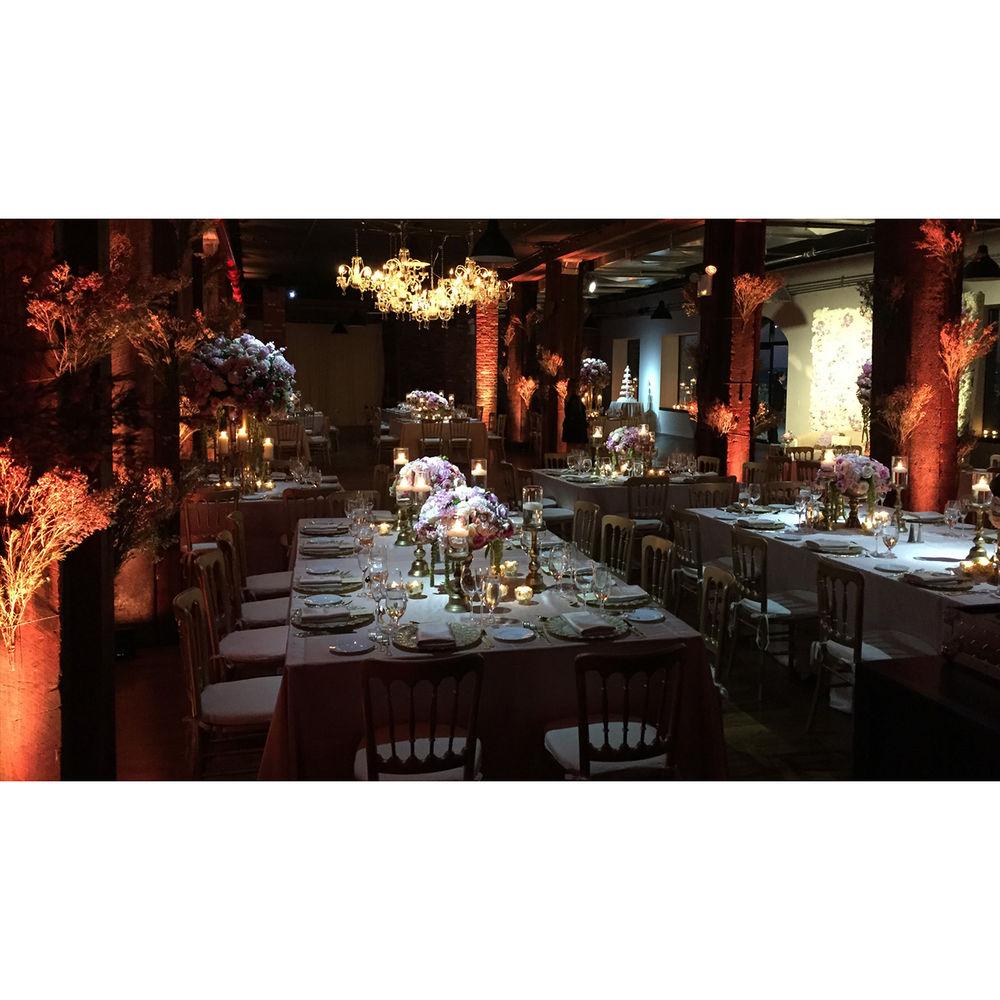

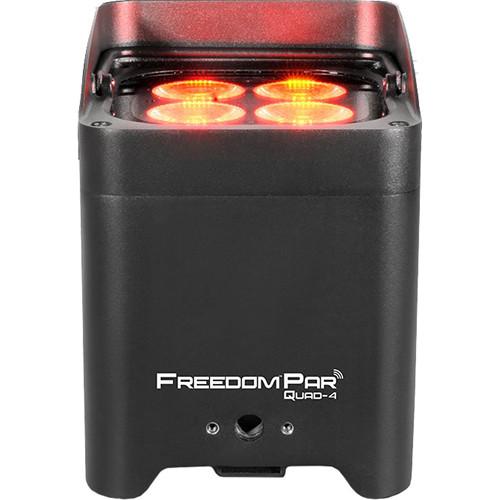

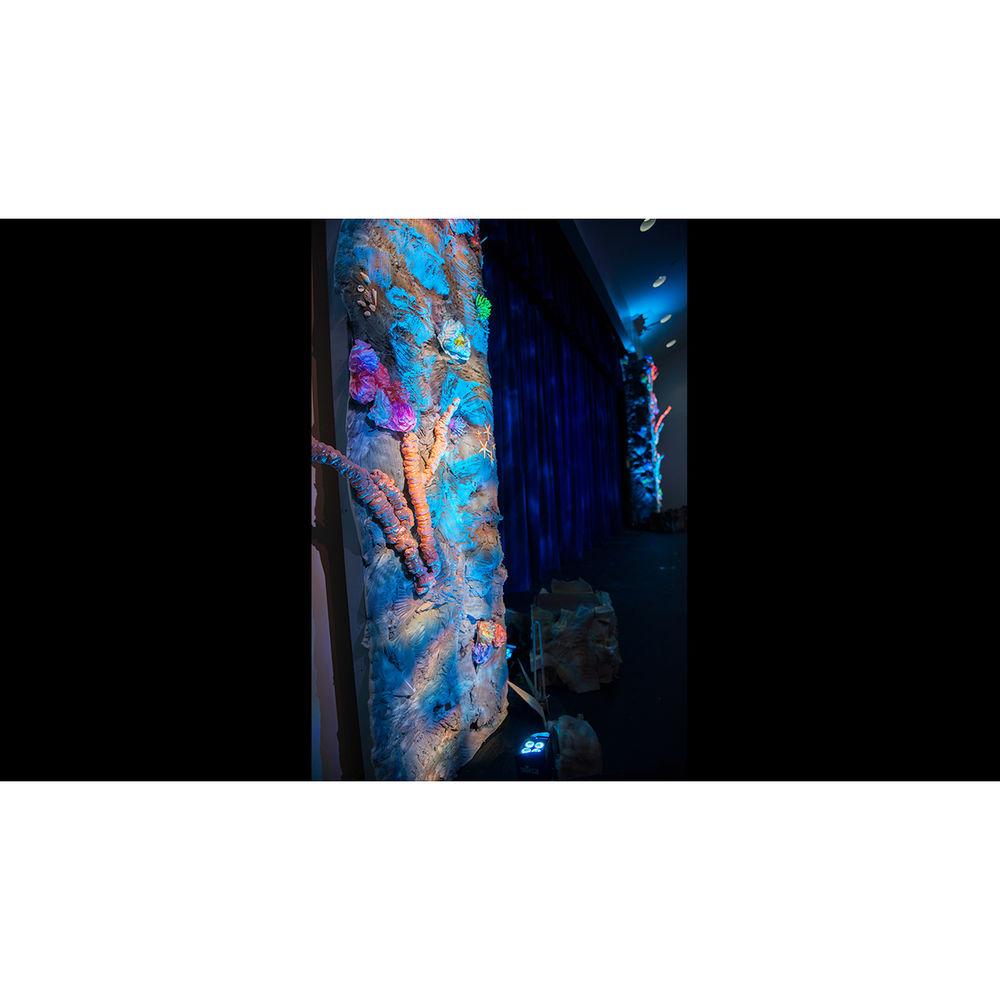

The battery-powered CHAUVET DJ Freedom Par Quad-4 is an RGBA (red, green, blue, amber) LED PAR fixture with a built-in D-Fi wireless DMX transceiver. Designed to produce rich, amber-infused color washes for venue uplighting or dance-floor color washing, mobile DJs can quickly position the fixture anywhere in the venue without running DMX cables and regardless of power-outlet availability.The Freedom Par Quad-4 is equipped with four 5W quad-color LEDs which produce a 15° beam angle, and a built-in battery that lasts up to 20 hours for single-color use on a full charge. The fixture can be used on the floor with a built-in kickstand that lets you adjust the direction of the uplight or suspend it overhead. Its compact design makes it easy to mount inside a 12" box truss.The Freedom Par Quad-4 can be used as a standalone with dynamic effects including electronic dimming, color macros, variable-strobe, and built-in automated programs. It can also be controlled via DMX or used in a master/slave configuration to coordinate multiple fixtures without the need for a controller. The D-Fi transceiver allows for wireless master/slave control of unlimited fixtures.The unit can be wirelessly controlled via the IRC-6 remote (included), the FlareCON Air wireless transmitter, or any mobile phone/tablet running the FlareCON mobile app (both available separately). - Key Features
-
- 4 x 5W quad-color RGBA LEDs (red, green, blue, amber), for bright color washes
- Built-in D-Fi transceiver for 100% wireless DMX
- Control fixture from the FlareCON Air wireless transmitter and any mobile phone or tablet running the FlareCON mobile app (both available separately)
- Rechargeable battery lasts up to 20 hours (single color) on a full charge
- 15° beam angle, 29° field angle
- 3 x DMX channel modes: 4, 6, or 10
- Achieve smooth LED fading with built-in dimming curves
- Color macros
- Built-in automated programs
- LED pulse and strobe effect
- Wireless master/slave control of unlimited Freedom Par Quad-4 fixtures
- Easily check the battery status with the built-in battery-life indicator
- Built-in glare shield prevents light spillage
- Extend the battery's lifespan with built-in discharge protection
- Convenient, non-DMX wireless control using the IRC-6 remote (included)

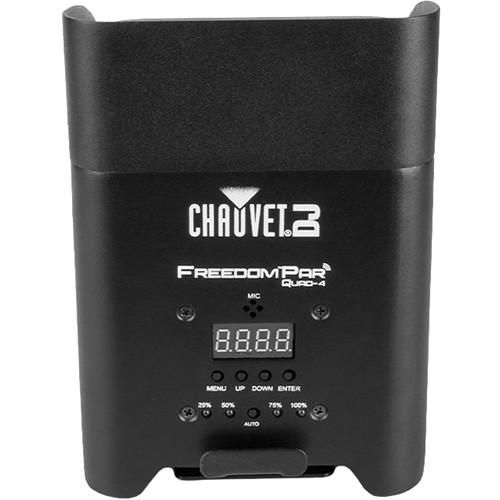

- Create customized colors using the built-in LED display
- Shine light where it is needed using the built-in adjustable kickstand
- Attaches to 35mm truss without the need for a bracket, using M12 threaded rig point
- Compact design easily fits inside 12" box truss
- Lightweight, with carry handle for easy transportation
- Daisy-chain power for up to 15 units at 120V
- Multi-voltage operation: 100-240 VAC, auto-ranging
UPC: 781462211615 In the Box CHAUVET DJ Freedom Par Quad-4 Battery-Powered RGBA LED PAR with Wireless DMX Power Cord IRC-6 Infrared Remote Control 6 Stickers Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Freedom Par Quad-4 Battery-Powered RGBA LED PAR with Wireless DMX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Freedom Par Quad-4 Specs | Light Source | 4 x 5 W quad-color RGBA LEDs (red, green, blue, amber)
Current: 2 A
Life Expectancy: 50,000 hours | | Beam and Field Angle | Beam Angle: 15°
Field Angle: 29° | | Illuminance | 2300 lux at 6.5' (2 m) | | PWM Frequency | 1200 Hz | | Rechargeable Battery | Charging Time: 6 hours
Run Time: Up to 8 hours (all colors on), up to 20 hours (single color on)
| | Operating Modes | DMX
Master/slave
Standalone, Sound-Active | | Wireless Control | Built-in D-Fi transceiver for wireless DMX control (requires FlareCON Air or FlareCON app - available separately)
IRC-6 wireless remote (included) | | Effects | Electronic dimming: 0-100%, with dimming curves
Auto-programs
Color macros

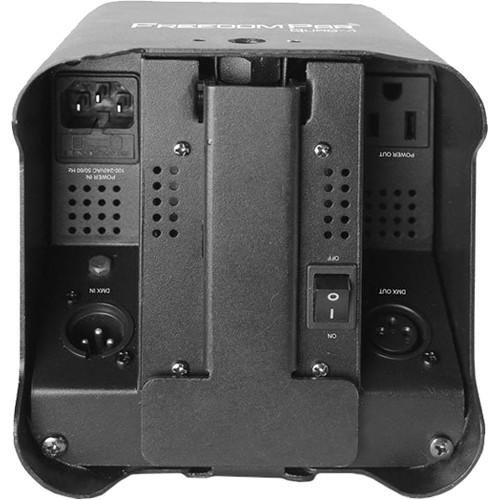

Variable strobe: 0 to 17 Hz | | DMX Channel Modes | 4, 6, or 10 | | DMX Connectors | 3-pin XLR, in/out | | Power Linking | 15 units, 8 A at 120 VAC
28 units, 8 A at 230 VAC | | Power Requirements | 100-240 VAC, 50/60 Hz, auto-ranging | | Power Connectors | Input: 1 x IEC
Output: 1 x Edison | | Power and Current | 120 VAC, 60 Hz: 35 W, 0.5 A
230 VAC, 50 Hz: 33 W, 0.3 A | | Mounting | M12 threaded rig point
Built-in adjustable kickstand | | Maximum Operating Temperature | 104°F / 40°C
Cooling System: Convection | | Approvals | CE, FCC | | Dimensions (L x W x H) | 5.4 x 5.7 x 7.2" / 144.7 x 109.2 x 182.8 mm | | Weight | 6.2 lb / 2.8 kg | | | | Package Weight | 7.75 lb | | Box Dimensions (LxWxH) | 9.5 x 8.7 x 7.2" |
