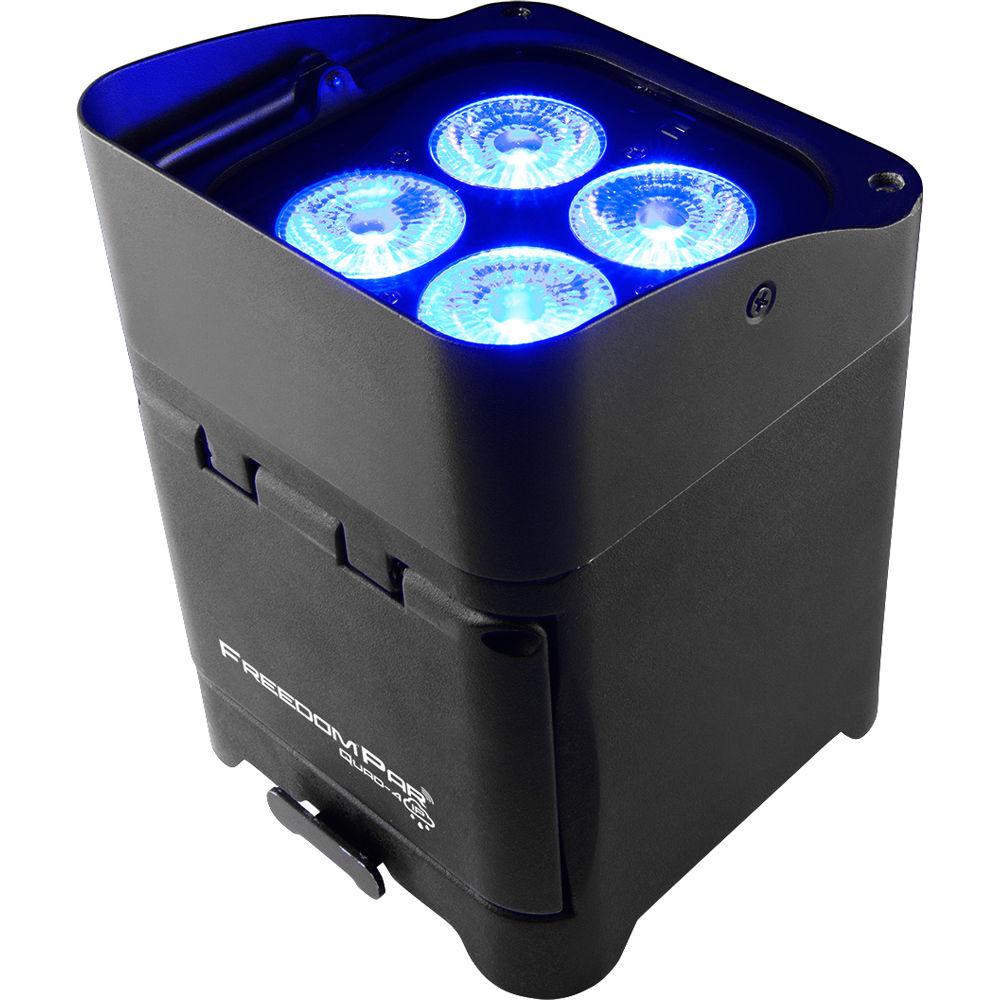

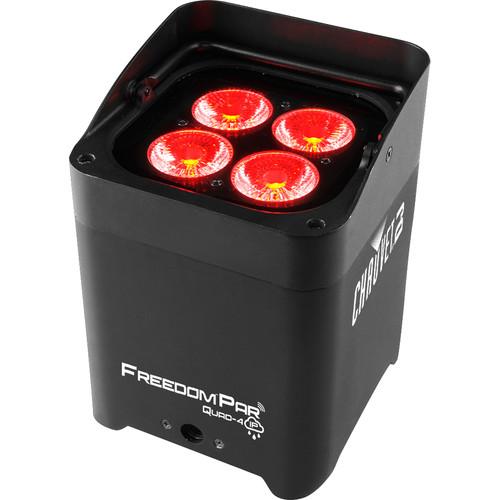

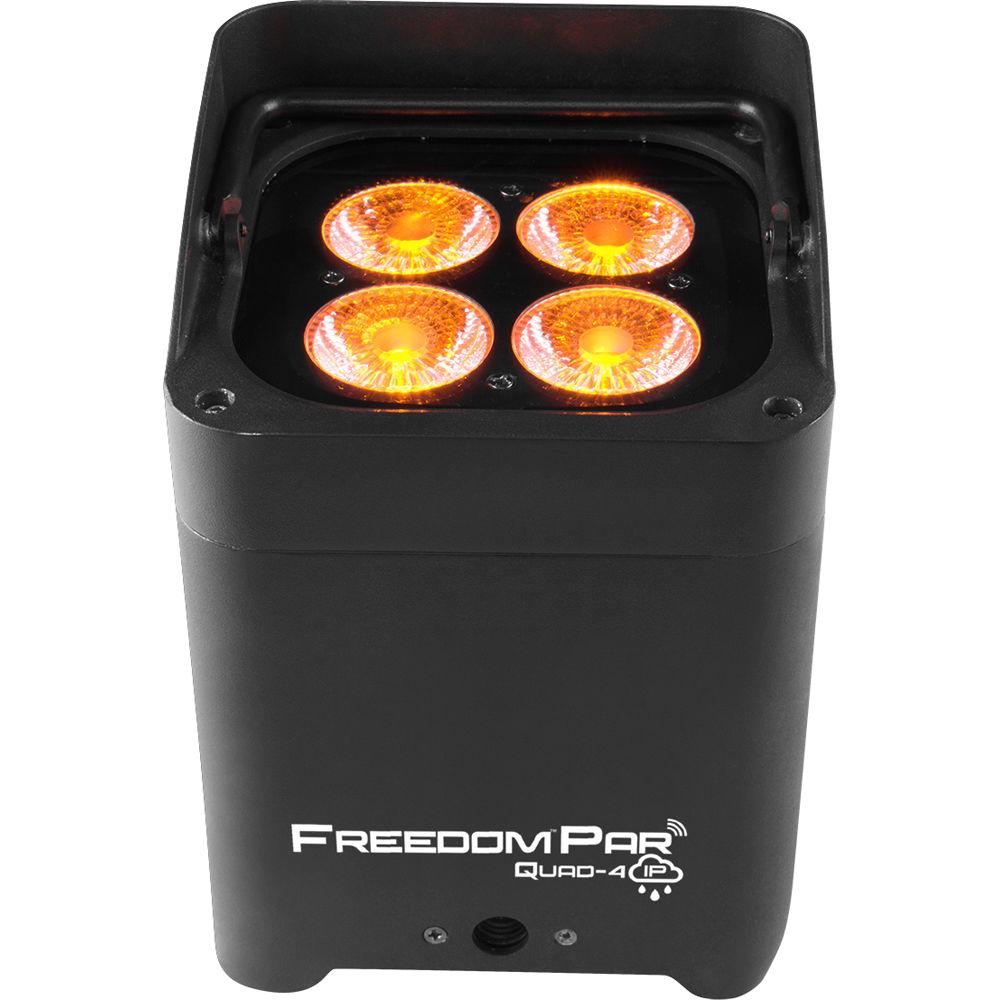

Product description The black Freedom Par Quad-4 IP from Chauvet DJ features a true wireless, battery-operated, quad-color (RGBA) LED designed with a built-in D-Fi transceiver. Its temporary outdoor-rated, durable housing repels water, snow, dirt, and sand, allowing you to use the PAR in all-weather applications. It offers a master/slave mode for pairing with first-generation Freedom Pars as well as multiple wireless triggering and control options using the FlareCON Air and the FlareCON app. Convenient, wireless non-DMX control is available using the included IRC-6 remote control, and customized colors can be created using the built-in LED display. An adjustable kickstand enables you to shine light directly where it is needed, and a glare shield is provided for preventing light spillage. Built-in dimming curves achieve smooth LED fading, and discharge protection extends the battery's lifespan for long usage. - Temporary outdoor-rated, durable housing repels water, snow, dirt, and sand for all-weather applications
- True wireless, battery-operated, quad-color (RGBA) LED PAR with built-in D-Fi transceiver
- Multiple wireless triggering and control options using the FlareCON Air and the FlareCON app
- Functions in Master/Slave configurations with first-generation Freedom Pars
- Built-in adjustable kickstand allows you to shine the light directly where it is needed
- Extend the battery's lifespan with built-in discharge protection
- Convenient, wireless, non-DMX control using the included IRC-6 remote control
- Built-in glare shield prevents light spillage
- Create customized colors using the built-in LED display
- Achieve smooth LED fading with built-in dimming curves
UPC: 781462213824 In the Box CHAUVET DJ Freedom Par Quad-4 IP with IRC-6 Remote Control (Black) IRC-6 Infrared Remote Control 6 xxrebvycczvcsvyaevxxbtwbvfswdy Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Freedom Par Quad-4 IP with IRC-6 Remote Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Freedom Par Quad-4 IP Specs | DMX Channels | 4, 6, 10 | | Light Source | 4 x LEDs (quad-color RGBA)
5 W, 2 A | | LED Life Expectancy | 50,000 hours | | Strobe Rate | 0 to 25 Hz | | PWM Frequency | 1,200 Hz | | Beam Angle | 9.5° | | Field Angle | 29° | | Operating Frequency | 2.412 to 2.484 GHz | | Illuminance | 2,464 lux @ 6.56' / 2 m | | Run Time | All Lights On: up to 8 hours
Single Color: up to 20 hours | | Recharge Time | 7 hours | | IP Rating | IP54 | | Input Voltage | 100 to 240 VAC, 50/60 Hz (Auto-ranging) | | Power and Current | 43 W, 0.6 A @ 120 V, 60 Hz
40 W, 0.3 A @ 230 V, 50 Hz | | Fuse | T 2 A, 250 V | | Approvals and Certifications | CE, FCC | | Dimensions | 5.7 x 5.4 x 7.5" / 14.5 x 13.8 x 19.1 cm | | Weight | 8.0 lb / 3.6 kg | | | | Package Weight | 9.2 lb | | Box Dimensions (LxWxH) | 9.6 x 8.8 x 7.8" |
