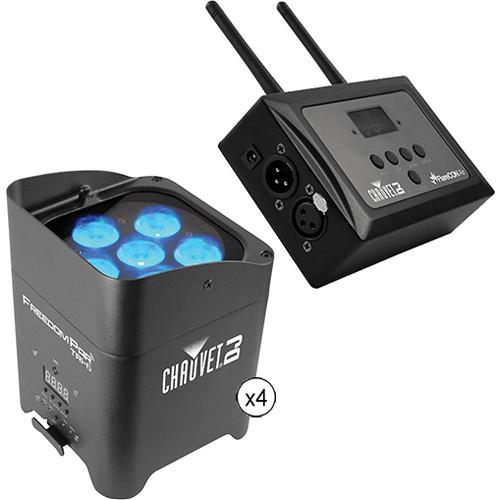

User Manual for CHAUVET DJ Freedom Par Tri-6 - 4-Light Kit with FlareCON Air Wireless Transmitter Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Freedom Par Tri-6 -
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
|
User manual for the CHAUVET DJ Freedom Par Tri-6 - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|
Product description B&H has put together the Chauvet Freedom PAR Tri-6 – 4-Light Kit with FlareCON Air Wireless Transmitter to give entertainers a complete setup with wireless DMX functionality, all in one kit. Freedom Par Tri-6 LED LightThe Freedom Par Tri-6 LED Light is a bright, wireless fixture with a 15° beam angle, rechargeable battery, and a built-in D-Fi transceiver. It has 18W of RGB color mixing and can be operated with the control panel, the included Chauvet DJ IRC-6 remote, or from any mobile phone or tablet running the FlareCON mobile app. The Freedom Par Tri-6 fits neatly inside TRUSST or any other 12" box truss. Up to 17 units can be power-linked @ 120VAC to reduce cabling.FlareCON Air Wireless TransmitterThe FlareCON Air Wireless Transmitter from Chauvet utilizes cell phones and tablets and turns them into wireless DMX controllers. It works with all CHAUVET DJ Freedom series fixtures as well as all D-Fi products for versatile control over your rig.The FlareCON app is available for both Android and iOS in both phone and tablet versions. The FlareCON Air can also connect directly to a DMX controller to send wireless signals out to an unlimited number of D-Fi lights or receivers. FlareCON Air is fully FCC and RTTE compliant. - 4 x CHAUVET DJ Freedom Par Tri-6 Battery Powered RGB LED PAR with Wireless DMX
- Freedom Par Tri-6 and Freedom Par Quad-4 by CHAUVET DJ
The battery-powered CHAUVET DJ Freedom Par Tri-6 is an RGB (red, green, blue) LED PAR fixture with a built-in D-Fi wireless DMX transceiver. Designed to produce rich color washes for venue uplighting or dance-floors, mobile DJs can quickly position the fixture anywhere in the venue without running DMX cables and regardless of power-outlet availability.The Freedom Par Tri-6 is equipped with six, 3W tri-color LEDs that have a beam angle of 15°. It has a built-in battery that lasts up to 20 hours on a full charge in single-color mode or 8 hours with all colors on. The fixture can be positioned on the floor using the built-in kickstand, which lets you adjust the direction of the uplight. Its compact design makes it easy to mount inside a 12" box truss or suspend overhead.The Freedom Par Tri-6 can operate as a standalone with dynamic effects including electronic dimming, color macros, variable-strobe, and built-in automated programs. It can also be controlled via DMX or used in a master/slave configuration to coordinate multiple fixtures without the need for a controller.The unit can be wirelessly controlled via the IRC-6 remote (included), the FlareCON Air wireless transmitter, or any mobile phone/tablet running the FlareCON mobile app (both available separately). - Key Features
-
- 6 x 3W tri-color RGB LEDs (red, green, blue), for bright color washes
- Built-in D-Fi transceiver for 100% wireless DMX
- Multiple wireless triggering and control options via FlareCON Air wireless transmitter and any mobile phone or tablet running the FlareCON mobile app (both available separately)
- Rechargeable battery lasts up to 20 hours (single-color) on a full charge
- 15° beam angle, 29° field angle
- 4 x DMX channel modes: 3, 4, 5, or 9
- Achieve smooth LED fading with built-in dimming curves
- Color macros
- Built-in automated programs
- LED strobe effect
- Easily check the battery status with the built-in battery-life indicator
- Built-in glare shield prevents light spillage
- Extend the battery's lifespan with built-in discharge protection
- Convenient, non-DMX wireless control using the IRC-6 remote (included)
- Works in Master/Slave mode with first-generation Freedom Pars
- Shine light where it is needed using the built-in adjustable kickstand
- Attaches to 35mm truss without the need for a bracket, using M12 threaded rig point
- Compact design easily fits inside a 12" box truss
- Lightweight, with carry handle for easy transportation
- Daisy-chain power for up to 17 units at 120V, or 30 units at 230V
- Multi-voltage operation: 100-240 VAC, auto-ranging
UPC: 781462211608 - CHAUVET DJ FlareCON Air Wireless Transmitter
- Freedom Par Tri-6 and Freedom Par Quad-4 by CHAUVET DJ
Turn your cellphones and tablets into wireless DMX controllers with the FlareCON Air Wireless Transmitter from Chauvet.The FlareCON works with all CHAUVET DJ Freedom series fixtures as well as all D-Fi products for versatile control over your rig.
The built-in Wi-Fi transmitter connects with cellphones and tablets running the free FlareCON app. The app allows the user to control connected lighting fixtures. Your FlareCON Air then converts the Wi-Fi signal from the phone or tablet into D-Fi and wirelessly transmits those signals to an unlimited number of receivers.
The FlareCON app is available for both Android and iOS in both phone and tablet versions. The FlareCON Air can also connect directly to a DMX controller. FlareCON Air is fully FCC and RTTE compliant. Users will appreciate the simple navigation, text readout and OLED digital display. Numerous mounting options include – a built-in hook and loop fastener strap, keyhole mounting holes, and M10/M12 threaded holes for direct mounting to a truss. - Benefits and Attributes
-
- FlareCON App is available for download for Android and iOS
- Compact, easy-to-use Wi-Fi receiver and wireless D-Fi transmitter in a single unit
- Compatible with Android operating system and Mac iOS on both smartphones and tablets
- Output can be used in wireless D-Fi or wired DMX protocols
- Wirelessly synchronize an unlimited number of D-Fi-ready fixtures and receivers simultaneously
- Built-in options include manual or automatic channel selection
- Simple navigation and text readout using the OLED digital display
- Mounting options include a built-in hook and loop fastener strap, keyhole mounting holes, M10 and M12 threaded holes for direct mounting to truss
- Fully FCC/RTTE compliant
UPC: 781462211639 In the Box - 4 x Freedom Par Tri-6 Battery Powered RGB LED PAR with Wireless DMX bbrtcdtveeyzcturuyaatudcuxztvebzswetq
- IRC-6 Infrared Remote Control 6
- Stickers
- Power Cord
- Limited 2-Year Warranty
- FlareCON Air Wireless Transmitter
Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Freedom Par Tri-6 - 4-Light Kit with FlareCON Air Wireless Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 4 x CHAUVET DJ Freedom Par Tri-6 Battery Powered RGB LED PAR with Wireless DMX
| Light Source | 6 x 3 W tri-color RGB LEDs (red, green, blue)
Current: 600 mA
Life Expectancy: 50,000 hours | | Illuminance | 1938 lux at 6.56' (2 m) | | Beam and Field Angle | Beam Angle: 15°
Field Angle: 29° | | PWM Frequency | 1200 Hz | | Rechargeable Battery | Charging Time: 6 hours
Run Time: Up to 8 hours (all colors), up to 20 hours (single-color) | | Operating Modes | DMX
Master/Slave
Standalone, Sound-Active | | Effects | Electronic Dimming: 0-100%, with dimming curves
Auto Programs
Color macros
Strobe: Variable from 0 to 17 Hz | | DMX Interface | DMX Channels Modes: 3, 4, 5, or 9
DMX Connectors: 3-pin XLR, in/out | | Wireless Control | Built-in D-Fi transceiver for wireless DMX control (requires FlareCON Air or FlareCON app - available separately)
IRC-6 wireless remote (included) | | Operating Frequency | 2.412 to 2.484 GHz | | Power Linking | 17 units, 8 A at 120 VAC
30 units, 8 A at 230 VAC | | Power Requirements | 100-240 VAC, 50/60 Hz, auto-ranging | | Power Connectors | Input: 1 x IEC
Output: 1 x Edison | | Power and Current | 32 W, 0.5 A @ 120 V, 60 Hz
31 W, 0.3 A @ 230 V, 50 Hz | | Fuse | T 1 A, 250 V | | Mounting | 104°F / 40°C
Cooling System: Convection | | Maximum Operating Temperature | 104°F / 40°C
Cooling System: Convection | | Approvals | CE, FCC | | Dimensions (L x W x H) | 5.4 x 5.7 x 7.2" / 138 x 145 x 184 mm | | Weight | 5.73 lb / 2.6 kg | | | | Box Dimensions (LxWxH) | 9.6 x 8.7 x 7.8" | - CHAUVET DJ FlareCON Air Wireless Transmitter
| DMX Channels | 512 | | DMX Connectors | Input: 1 x XLR 3-pin
Output: 1 x XLR 3-pin | | Operating Frequency | 2.4 GHz | | Antenna Connector | RP-SMA | | Wireless Range | Wi-Fi (Max. Unobstructed Distance): 100' (30.5 m)
D-Fi (Max. Unobstructed Distance): 600' (183 m) | | Input Voltage | 9 VDC, 500 mA
External Power Supply: 100-240 VAC, 50/60 Hz (auto-ranging) | | Power and Current | 4.0 W, 0.1 A @ 120 VAC, 60 Hz
9.0 W, 0.1 A @ 230 VAC, 50 Hz | | Approvals | CE, FCC | | Dimensions | 5.59 x 3.58 x 1.81" / 14.2 x 9.1 x 4.6 cm | | Weight | 1.2 lb / 0.54 kg | | | | Box Dimensions (LxWxH) | 10.0 x 5.0 x 3.5" |
