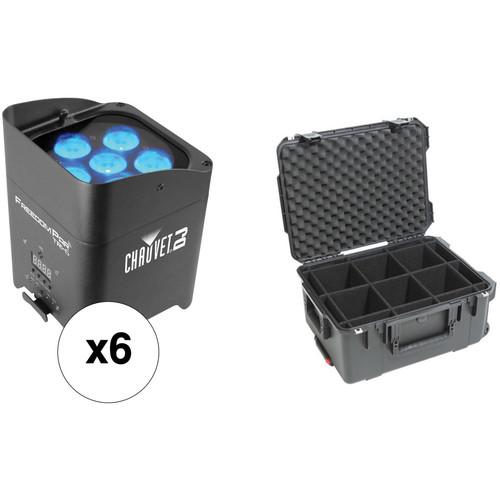

User Manual for CHAUVET DJ Freedom Par Tri-6 - 6-Light Kit with SKB Case

• Product category: DJ & Effect Lights CHAUVET DJ
• Brand: CHAUVET DJ
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for CHAUVET DJ DJ & Effect Lights

Product description

• 6 x CHAUVET DJ Freedom Par Tri-6 Battery Powered RGB LED PAR with Wireless DMX
  • Freedom Par Tri-6 and Freedom Par Quad-4 by CHAUVET DJ
  The battery-powered CHAUVET DJ Freedom Par Tri-6 is an RGB (red, green, blue) LED PAR fixture with a built-in D-Fi wireless DMX transceiver. Designed to produce rich color washes for venue uplighting or dance-floors, mobile DJs can quickly position the fixture anywhere in the venue without running DMX cables and regardless of power-outlet availability.The Freedom Par Tri-6 is equipped with six, 3W tri-color LEDs that have a beam angle of 15°. It has a built-in battery that lasts up to 20 hours on a full charge in single-color mode or 8 hours with all colors on. The fixture can be positioned on the floor using the built-in kickstand, which lets you adjust the direction of the uplight. Its compact design makes it easy to mount inside a 12" box truss or suspend overhead.The Freedom Par Tri-6 can operate as a standalone with dynamic effects including electronic dimming, color macros, variable-strobe, and built-in automated programs. It can also be controlled via DMX or used in a master/slave configuration to coordinate multiple fixtures without the need for a controller.The unit can be wirelessly controlled via the IRC-6 remote (included), the FlareCON Air wireless transmitter, or any mobile phone/tablet running the FlareCON mobile app (both available separately).
  Key Features
  • • 6 x 3W tri-color RGB LEDs (red, green, blue), for bright color washes
    • Built-in D-Fi transceiver for 100% wireless DMX
    • Multiple wireless triggering and control options via FlareCON Air wireless transmitter and any mobile phone or tablet running the FlareCON mobile app (both available separately)
    • Rechargeable battery lasts up to 20 hours (single-color) on a full charge
    • 15° beam angle, 29° field angle
    • 4 x DMX channel modes: 3, 4, 5, or 9
    • Achieve smooth LED fading with built-in dimming curves
    • Color macros
    • Built-in automated programs
    • LED strobe effect
    • Easily check the battery status with the built-in battery-life indicator
    • Built-in glare shield prevents light spillage
    • Extend the battery's lifespan with built-in discharge protection
    • Convenient, non-DMX wireless control using the IRC-6 remote (included)
    • Works in Master/Slave mode with first-generation Freedom Pars
    • Shine light where it is needed using the built-in adjustable kickstand
    • Attaches to 35mm truss without the need for a bracket, using M12 threaded rig point
    • Compact design easily fits inside a 12" box truss
    • Lightweight, with carry handle for easy transportation
    • Daisy-chain power for up to 17 units at 120V, or 30 units at 230V
    • Multi-voltage operation: 100-240 VAC, auto-ranging
  UPC: 781462211608
• SKB iSeries 3i-201510PAR Chauvet Freedom PAR Case
  • Freedom Par Tri-6 and Freedom Par Quad-4 by CHAUVET DJ
  The iSeries 3i-201510PAR Chauvet Freedom PAR Case from SKB is a sturdy polypropylene co-polymer resin case that is built to handle the rigors of the road. Designed to store and protect 6 Chauvet PAR fixtures, the case is also compatible with many other similarly sized models. The case's rugged exterior is resistant to corrosion, fungus, solvents and UV and its gasket seal makes it IP67 rated water tight. A convenient push-button release reveals a pull handle that allows use of the case's in-line wheels. The interior's ridged dividers are covered in dense PE foam to thwart impact damage to your lights. Ten pockets are positioned around the lights in the interior for cables and other accessories.
  Attributes
  • • Rigid dividers for product separation
    • Holds six PAR lights
    • 10 Accessory pockets
    • Ultra high-strength polypropylene copolymer resin
    • UV, solvent, corrosion and fungus resistant (MIL-STD-810F)
    • Complete gasket seal makes these cases absolutely watertight (MIL-STD-C-4150J)
    • Automatic ambient pressure equalization value (MIL-STD-648C and IP67)
    • Resistant to corrosion and impact damage
    • Molded-in hinges
    • Trigger-release latch system
    • Rubber overmolded cushion grip handle
    • Convenient push-button release pull handle
    • In-line wheels for easy transport
  UPC: 789270997967

• 6 x Freedom Par Tri-6 Battery Powered RGB LED PAR with Wireless DMX svxfycvcfruzasxqxcasrfszwryrfusdfe
• IRC-6 Infrared Remote Control 6
• Stickers
• Power Cord
• Limited 2-Year Warranty

• SKB - iSeries 3i-201510PAR Chauvet Freedom PAR Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 6 x CHAUVET DJ Freedom Par Tri-6 Battery Powered RGB LED PAR with Wireless DMX

  Light Source	6 x 3 W tri-color RGB LEDs (red, green, blue) Current: 600 mA Life Expectancy: 50,000 hours
  Illuminance	1938 lux at 6.56' (2 m)
  Beam and Field Angle	Beam Angle: 15° Field Angle: 29°
  PWM Frequency	1200 Hz
  Rechargeable Battery	Charging Time: 6 hours Run Time: Up to 8 hours (all colors), up to 20 hours (single-color)
  Operating Modes	DMX Master/Slave Standalone, Sound-Active
  Effects	Electronic Dimming: 0-100%, with dimming curves Auto Programs Color macros Strobe: Variable from 0 to 17 Hz
  DMX Interface	DMX Channels Modes: 3, 4, 5, or 9 DMX Connectors: 3-pin XLR, in/out
  Wireless Control	Built-in D-Fi transceiver for wireless DMX control (requires FlareCON Air or FlareCON app - available separately) IRC-6 wireless remote (included)
  Operating Frequency	2.412 to 2.484 GHz
  Power Linking	17 units, 8 A at 120 VAC 30 units, 8 A at 230 VAC
  Power Requirements	100-240 VAC, 50/60 Hz, auto-ranging
  Power Connectors	Input: 1 x IEC Output: 1 x Edison
  Power and Current	32 W, 0.5 A @ 120 V, 60 Hz 31 W, 0.3 A @ 230 V, 50 Hz
  Fuse	T 1 A, 250 V
  Mounting	104°F / 40°C Cooling System: Convection
  Maximum Operating Temperature	104°F / 40°C Cooling System: Convection
  Approvals	CE, FCC
  Dimensions (L x W x H)	5.4 x 5.7 x 7.2" / 138 x 145 x 184 mm
  Weight	5.73 lb / 2.6 kg

  Box Dimensions (LxWxH)	9.6 x 8.7 x 7.8"

• SKB iSeries 3i-201510PAR Chauvet Freedom PAR Case

  Interior Dimensions	15.5 x 20 x 10" / 39.3 x 50.8 x 25.4 cm

  Closure Type	Latch
  Material of Construction	Polypropylene
  Lid Depth	2" / 5.1 cm
  Exterior Dimensions (W x H x D)	22.9 x 18.0 x 11.6" / 58.2 x 45.6 x 29.3 cm
  Weight	20.2 lb / 9.1 kg

  Box Dimensions (LxWxH)	23.5 x 18.2 x 11.8"
