Product description - Freedom Par Tri-6 and Freedom Par Quad-4 by CHAUVET DJ

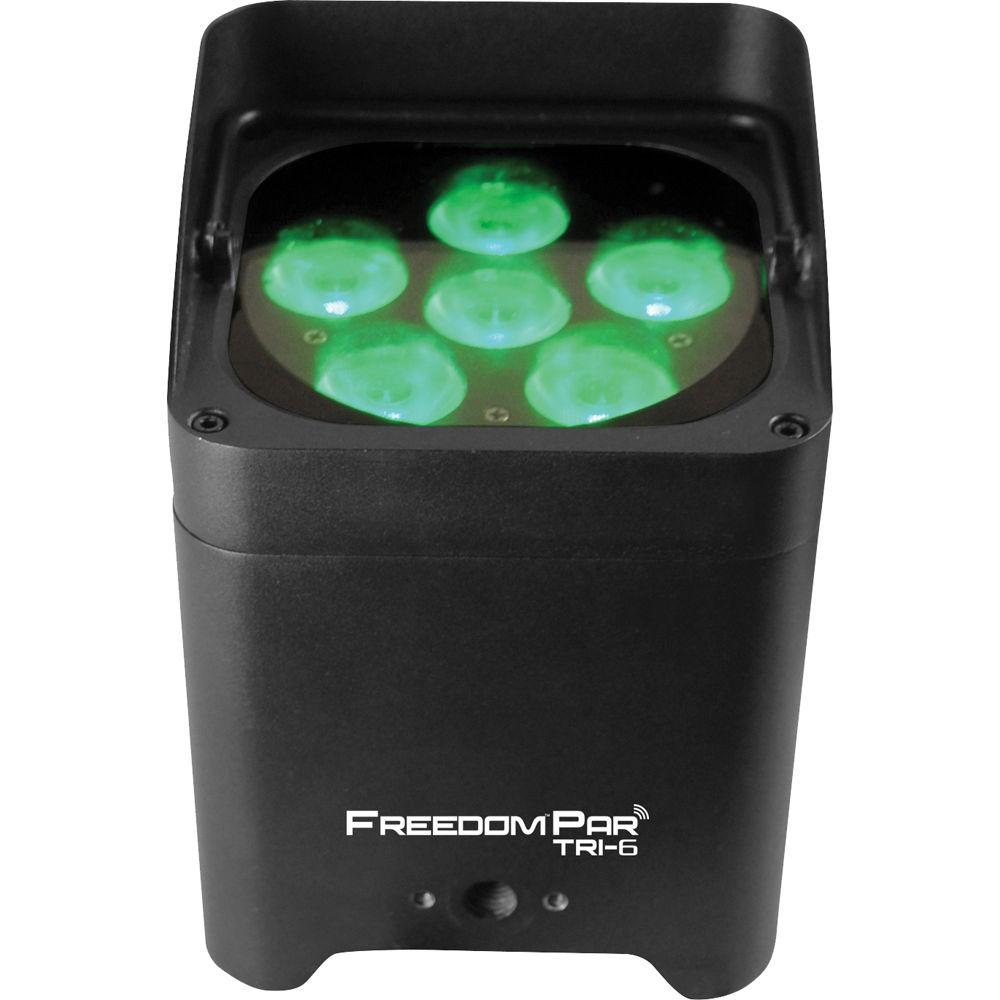

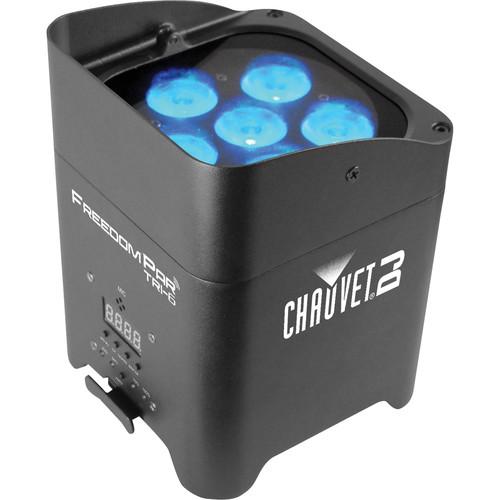

The battery-powered CHAUVET DJ Freedom Par Tri-6 is an RGB (red, green, blue) LED PAR fixture with a built-in D-Fi wireless DMX transceiver. Designed to produce rich color washes for venue uplighting or dance-floors, mobile DJs can quickly position the fixture anywhere in the venue without running DMX cables and regardless of power-outlet availability.The Freedom Par Tri-6 is equipped with six, 3W tri-color LEDs that have a beam angle of 15°. It has a built-in battery that lasts up to 20 hours on a full charge in single-color mode or 8 hours with all colors on. The fixture can be positioned on the floor using the built-in kickstand, which lets you adjust the direction of the uplight. Its compact design makes it easy to mount inside a 12" box truss or suspend overhead.The Freedom Par Tri-6 can operate as a standalone with dynamic effects including electronic dimming, color macros, variable-strobe, and built-in automated programs. It can also be controlled via DMX or used in a master/slave configuration to coordinate multiple fixtures without the need for a controller.The unit can be wirelessly controlled via the IRC-6 remote (included), the FlareCON Air wireless transmitter, or any mobile phone/tablet running the FlareCON mobile app (both available separately). - Key Features
-
- 6 x 3W tri-color RGB LEDs (red, green, blue), for bright color washes
- Built-in D-Fi transceiver for 100% wireless DMX
- Multiple wireless triggering and control options via FlareCON Air wireless transmitter and any mobile phone or tablet running the FlareCON mobile app (both available separately)
- Rechargeable battery lasts up to 20 hours (single-color) on a full charge
- 15° beam angle, 29° field angle
- 4 x DMX channel modes: 3, 4, 5, or 9
- Achieve smooth LED fading with built-in dimming curves
- Color macros
- Built-in automated programs
- LED strobe effect
- Easily check the battery status with the built-in battery-life indicator
- Built-in glare shield prevents light spillage
- Extend the battery's lifespan with built-in discharge protection
- Convenient, non-DMX wireless control using the IRC-6 remote (included)
- Works in Master/Slave mode with first-generation Freedom Pars
- Shine light where it is needed using the built-in adjustable kickstand
- Attaches to 35mm truss without the need for a bracket, using M12 threaded rig point
- Compact design easily fits inside a 12" box truss
- Lightweight, with carry handle for easy transportation
- Daisy-chain power for up to 17 units at 120V, or 30 units at 230V
- Multi-voltage operation: 100-240 VAC, auto-ranging
UPC: 781462211608 In the Box CHAUVET DJ Freedom Par Tri-6 Battery Powered RGB LED PAR with Wireless DMX IRC-6 Infrared Remote Control 6 sabwzvaseyuw Stickers Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Freedom Par Tri-6 Battery Powered RGB LED PAR with Wireless DMX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Freedom Par Tri-6 Specs | Light Source | 6 x 3 W tri-color RGB LEDs (red, green, blue)
Current: 600 mA
Life Expectancy: 50,000 hours | | Illuminance | 1938 lux at 6.56' (2 m) | | Beam and Field Angle | Beam Angle: 15°
Field Angle: 29° | | PWM Frequency | 1200 Hz | | Rechargeable Battery | Charging Time: 6 hours
Run Time: Up to 8 hours (all colors), up to 20 hours (single-color) | | Operating Modes | DMX
Master/Slave
Standalone, Sound-Active | | Effects | Electronic Dimming: 0-100%, with dimming curves
Auto Programs
Color macros
Strobe: Variable from 0 to 17 Hz | | DMX Interface | DMX Channels Modes: 3, 4, 5, or 9

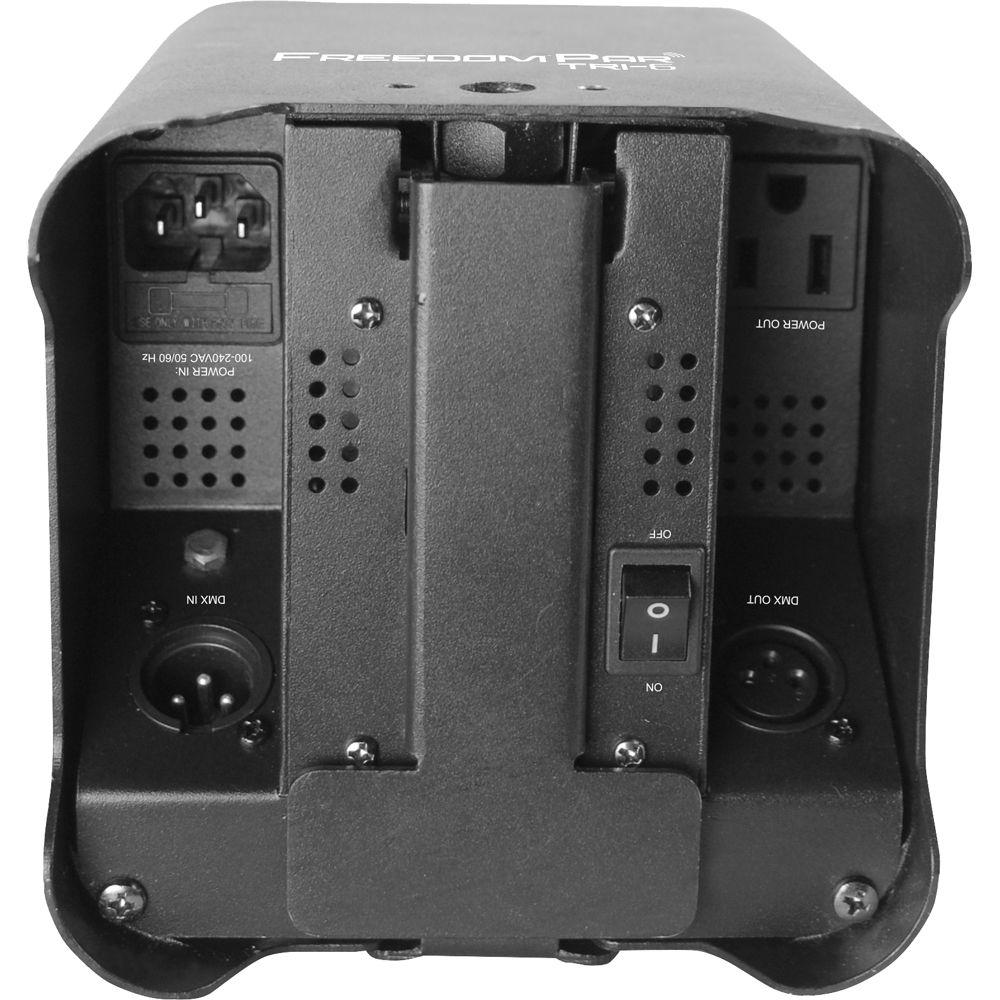

DMX Connectors: 3-pin XLR, in/out | | Wireless Control | Built-in D-Fi transceiver for wireless DMX control (requires FlareCON Air or FlareCON app - available separately)
IRC-6 wireless remote (included) | | Operating Frequency | 2.412 to 2.484 GHz | | Power Linking | 17 units, 8 A at 120 VAC
30 units, 8 A at 230 VAC | | Power Requirements | 100-240 VAC, 50/60 Hz, auto-ranging | | Power Connectors | Input: 1 x IEC
Output: 1 x Edison | | Power and Current | 32 W, 0.5 A @ 120 V, 60 Hz
31 W, 0.3 A @ 230 V, 50 Hz | | Fuse | T 1 A, 250 V | | Mounting | 104°F / 40°C
Cooling System: Convection | | Maximum Operating Temperature | 104°F / 40°C
Cooling System: Convection | | Approvals | CE, FCC | | Dimensions (L x W x H) | 5.4 x 5.7 x 7.2" / 138 x 145 x 184 mm | | Weight | 5.73 lb / 2.6 kg | | | | Package Weight | 7.1 lb | | Box Dimensions (LxWxH) | 9.6 x 8.7 x 7.8" |
