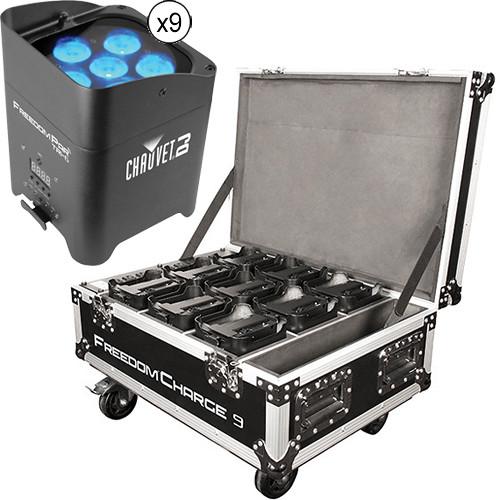

User Manual for CHAUVET DJ Freedom Par Tri-6 Kit with 9 Lights and Freedom Charge Rolling Case Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Freedom Par Tri-6 Kit
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
|
User manual for the CHAUVET DJ Freedom Par Tri-6 Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|
Product description This B&H Kit combines nine Chauvet Professional Freedom Par Tri-6 LED Lights with the Freedom Charge 9 Rolling Case to create a mobile lighting package that stores, protects, and charges the Freedom lights for use at any mobile event. - 9 x CHAUVET DJ Freedom Par Tri-6 Battery Powered RGB LED PAR with Wireless DMX
- Freedom Par Tri-6 and Freedom Par Quad-4 by CHAUVET DJ
The battery-powered CHAUVET DJ Freedom Par Tri-6 is an RGB (red, green, blue) LED PAR fixture with a built-in D-Fi wireless DMX transceiver. Designed to produce rich color washes for venue uplighting or dance-floors, mobile DJs can quickly position the fixture anywhere in the venue without running DMX cables and regardless of power-outlet availability.The Freedom Par Tri-6 is equipped with six, 3W tri-color LEDs that have a beam angle of 15°. It has a built-in battery that lasts up to 20 hours on a full charge in single-color mode or 8 hours with all colors on. The fixture can be positioned on the floor using the built-in kickstand, which lets you adjust the direction of the uplight. Its compact design makes it easy to mount inside a 12" box truss or suspend overhead.The Freedom Par Tri-6 can operate as a standalone with dynamic effects including electronic dimming, color macros, variable-strobe, and built-in automated programs. It can also be controlled via DMX or used in a master/slave configuration to coordinate multiple fixtures without the need for a controller.The unit can be wirelessly controlled via the IRC-6 remote (included), the FlareCON Air wireless transmitter, or any mobile phone/tablet running the FlareCON mobile app (both available separately). - Key Features
-
- 6 x 3W tri-color RGB LEDs (red, green, blue), for bright color washes
- Built-in D-Fi transceiver for 100% wireless DMX
- Multiple wireless triggering and control options via FlareCON Air wireless transmitter and any mobile phone or tablet running the FlareCON mobile app (both available separately)
- Rechargeable battery lasts up to 20 hours (single-color) on a full charge
- 15° beam angle, 29° field angle
- 4 x DMX channel modes: 3, 4, 5, or 9
- Achieve smooth LED fading with built-in dimming curves
- Color macros
- Built-in automated programs
- LED strobe effect
- Easily check the battery status with the built-in battery-life indicator
- Built-in glare shield prevents light spillage
- Extend the battery's lifespan with built-in discharge protection
- Convenient, non-DMX wireless control using the IRC-6 remote (included)
- Works in Master/Slave mode with first-generation Freedom Pars
- Shine light where it is needed using the built-in adjustable kickstand
- Attaches to 35mm truss without the need for a bracket, using M12 threaded rig point
- Compact design easily fits inside a 12" box truss
- Lightweight, with carry handle for easy transportation
- Daisy-chain power for up to 17 units at 120V, or 30 units at 230V
- Multi-voltage operation: 100-240 VAC, auto-ranging
UPC: 781462211608 - CHAUVET DJ Freedom Charge 9 Rolling Case (Black)
- Freedom Par Tri-6 and Freedom Par Quad-4 by CHAUVET DJ
Store, protect, and charge up to 9 Par fixtures and accessories with the black Freedom Charge 9 Rolling Case case from Chauvet Lighting. This case features nine internal outlets for keeping your lights charged and ready to go. The outlet panel connects to a standard wall outlet with the included power cord. Foam padding, and wood with metal construction helps protect your lights from dirt, dust, and bumps. Your DMX controller, cables, cords and other accessories reside inside the storage compartment on the right side of the case.
Four, space-saving, spring-loaded handles – two on each side help facilitate two people to carry the case. For secure closure, the case has two, flush-mount latches. The hinged lid has two elastic bands for holding the lid in the upright, open position. Heavy duty caster wheels, one with a safety-lock, make transporting the case easier and faster. One can even use the case as a rolling pallet for moving other gear. UPC: 781462213619 In the Box - 9 x Freedom Par Tri-6 Battery Powered RGB LED PAR with Wireless DMX tqbwszwqrbucausawedrbvvvddftsxfbdxfw
- IRC-6 Infrared Remote Control 6
- Stickers
- Power Cord
- Limited 2-Year Warranty
- Freedom Charge 9 Rolling Case (Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Freedom Par Tri-6 Kit with 9 Lights and Freedom Charge Rolling Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 9 x CHAUVET DJ Freedom Par Tri-6 Battery Powered RGB LED PAR with Wireless DMX
| Light Source | 6 x 3 W tri-color RGB LEDs (red, green, blue)
Current: 600 mA
Life Expectancy: 50,000 hours | | Illuminance | 1938 lux at 6.56' (2 m) | | Beam and Field Angle | Beam Angle: 15°
Field Angle: 29° | | PWM Frequency | 1200 Hz | | Rechargeable Battery | Charging Time: 6 hours
Run Time: Up to 8 hours (all colors), up to 20 hours (single-color) | | Operating Modes | DMX
Master/Slave
Standalone, Sound-Active | | Effects | Electronic Dimming: 0-100%, with dimming curves
Auto Programs
Color macros
Strobe: Variable from 0 to 17 Hz | | DMX Interface | DMX Channels Modes: 3, 4, 5, or 9
DMX Connectors: 3-pin XLR, in/out | | Wireless Control | Built-in D-Fi transceiver for wireless DMX control (requires FlareCON Air or FlareCON app - available separately)
IRC-6 wireless remote (included) | | Operating Frequency | 2.412 to 2.484 GHz | | Power Linking | 17 units, 8 A at 120 VAC
30 units, 8 A at 230 VAC | | Power Requirements | 100-240 VAC, 50/60 Hz, auto-ranging | | Power Connectors | Input: 1 x IEC
Output: 1 x Edison | | Power and Current | 32 W, 0.5 A @ 120 V, 60 Hz
31 W, 0.3 A @ 230 V, 50 Hz | | Fuse | T 1 A, 250 V | | Mounting | 104°F / 40°C
Cooling System: Convection | | Maximum Operating Temperature | 104°F / 40°C
Cooling System: Convection | | Approvals | CE, FCC | | Dimensions (L x W x H) | 5.4 x 5.7 x 7.2" / 138 x 145 x 184 mm | | Weight | 5.73 lb / 2.6 kg | | | | Box Dimensions (LxWxH) | 9.6 x 8.7 x 7.8" | - CHAUVET DJ Freedom Charge 9 Rolling Case (Black)
| | | Closure Type | Latch | | Carry and Transport Options | 4 x Spring-Loaded Handle | | Casters | 4 (1 Lockable) | | Material of Construction | Aluminum, Wood | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Exterior Dimensions (W x H x D) | 28.3 x 20.2 x 15.8" / 71.8 x 51.3 x 40.2 cm (with Casters) | | Weight | 55 lb / 25 kg | | | | Box Dimensions (LxWxH) | 28.0 x 20.0 x 13.0" |
