User Manual for CHAUVET DJ Freedom Stick RGB LED Fixture Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Freedom Stick RGB LED
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ Freedom Stick RGB LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

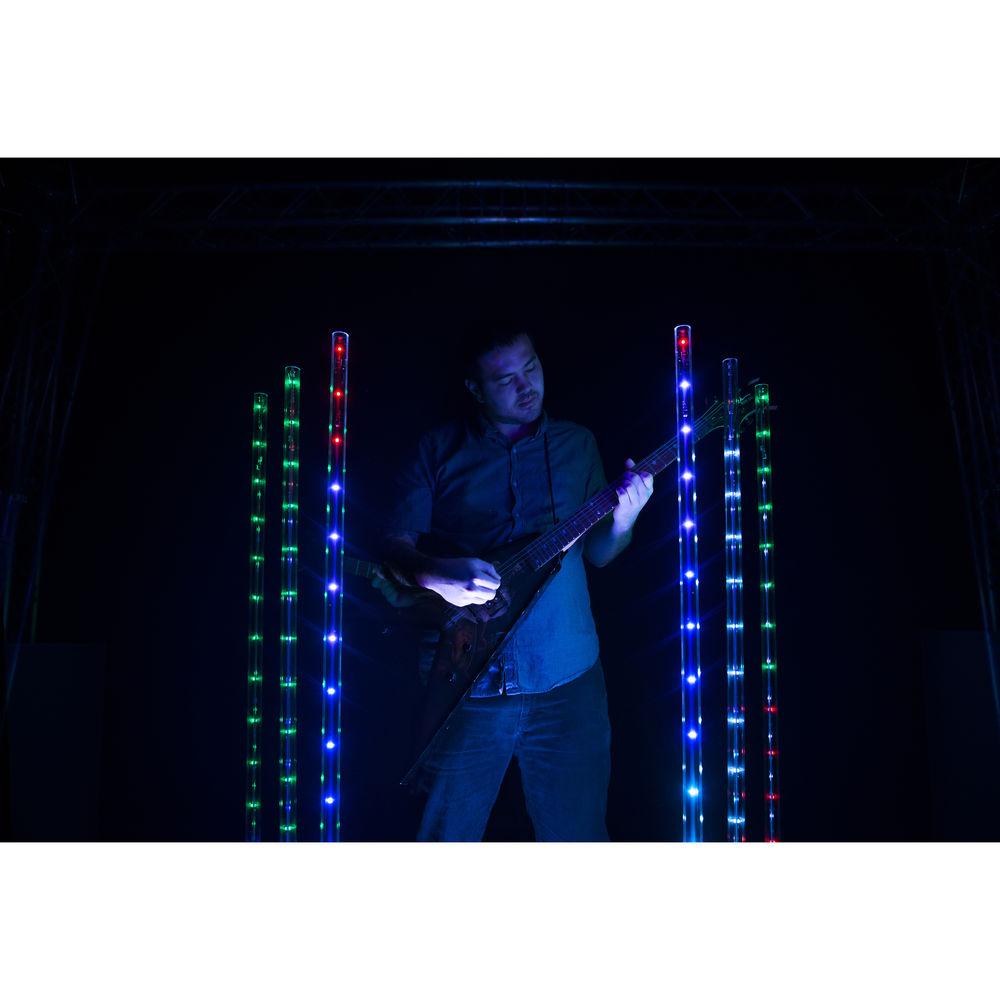

Product description The Freedom Stick from CHAUVET is a battery-powered free-standing fixture which uses 32 tri-color RGB LEDs to create dazzling multi-colored light effects. Individual pixel mapping allows for red, green, and blue color mixing of each pixel, and global control over strobe and dimming is also provided. The built-in D-Fi transceiver enables wireless DMX control of the Freedom Stick from any D-Fi-enabled controller. Four DMX channel modes (3, 8, 48, 50) give varying degrees of control over the fixture. User-customizable automated programs let you design complex looks in seconds.
Additional control options of the Freedom Stick include sound-activated programs, wireless master/slave configurations, and the optional IRC-6 remote. The Freedom Stick can be mounted in any position and almost anywhere. Keep the metal base on if you want to stand the fixture on the floor, and detach it if you want to lay it on a surface or rig it to a truss (mounting clamps not included). UPC: 781462214784 In the Box CHAUVET DJ Freedom Stick RGB LED Fixture External Power Supply Base Plate Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Freedom Stick RGB LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Freedom Stick Specs | LED Source | 32 x SMD (surface mount device) tri-color RGB LEDs; 0.2 W, 50 mA
| | LED Life Expectancy | 50,000 hours | | Color Mixing | RGB: red, green, blue (per pixel) | | Strobe Rate | 0 to 30 Hz | | Coverage Area | 360° | | Maximum Run Time | Up to 6.5 h (all on) | | Recharge Time | 4.5 h | | Built-In Programs | Yes: automatic and sound active | | Operation Modes | DMX, Master/Slave, Standalone | | DMX Channel Modes | 3, 8, 48, or 50 channels | | DMX Connectors | Input: 1 x XLR 3-pin
Output: 1 x XLR 3-pin | | Wireless Control | D-Fi Wireless DMX
IRC-6 Remote (optional) | | Power Supply | Internal: 15 VDC, 800 mA
External 100-240 VAC, 50/60 Hz (auto-ranging) | | Consumption | 35 W, 0.05 A @ 120 VAC, 60 Hz 35 W, 0.03 A @ 230 VAC, 50 Hz | | Approvals | CE, FCC | | Dimensions | 6.3 x 6.3 x 61.0" (16.1 x 16.1 x 155.0 cm) with base | | Weight | 3.5 lb (1.6 kg) | | | | Package Weight | 5.1 lb | | Box Dimensions (LxWxH) | 61.0 x 6.6 x 4.0" |
