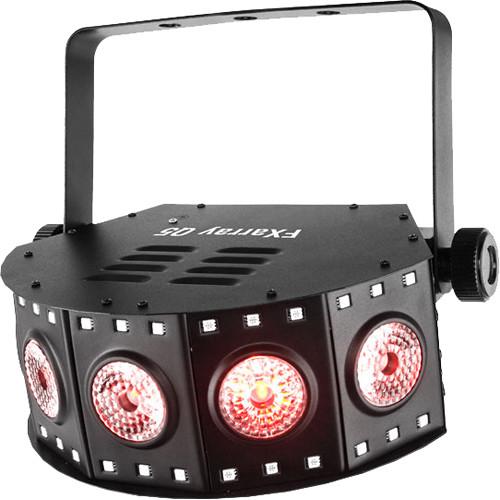

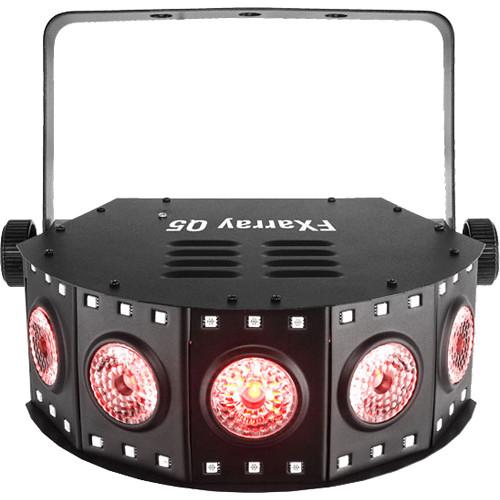

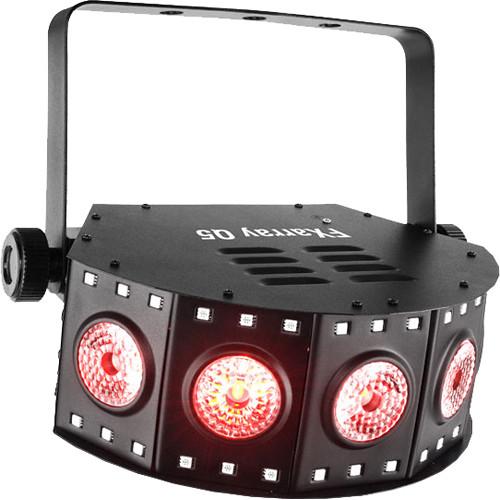

Product description Create brilliant eye candy effects with the FXarray Q5 from Chauvet, which is a versatile quad-color LED wash light featuring an array of RGB+UV LEDs to spread light evenly across the dance floor. The instrument utilizes 5 quad-color LEDs (red, green, blue, and ultraviolet) and 30 tri-colored (red, green blue) surface mount device (SMD) LEDs to generate dynamic light shows.
The unit can be operated by built-in programs, sound activation, or via DMX with settings of 3, 10, or 30 channel controls. The fixture can provide a strobe effect with a rate of 0 to 19 Hz. Up to 15 units can be power linked on a single 120V circuit (or 27 units at 230V). The FXarray Q5 ships with a hanging bracket and mounting hardware. -
- Versatile quad-color LED wash light with brilliant eye candy effects
- An array of RGB+UV LEDs spread light evenly across the dance floor
- Control the wash LEDs and the RGB SMDs separately for dynamic light shows
- Generate eye-catching effects with sound-activated and automated programs
- Stand-alone operation allows for programming without the need for DMX control
- Save time running extension cords by power linking multiple units
- Compatible with optional IRC-6 remote for flexible control over all features
- Fits in the optional CHS-40 VIP gear bag
UPC: 781462216368 In the Box CHAUVET DJ FXarray Q5 RGB+UV LED Wash Light Power Cord with Edison Plug (US/North America) Hanging Bracket with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ FXarray Q5 RGB UV LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ FXarray Q5 Specs | Light Source | 5 x RGB+UV LEDs, 6W (2.1 A)
30 x RGB SMD LEDs, 0.3 W (0.1 A) | | Life Expectancy | 50,000 hours | | Illuminance | 314 lux @ 6.56' / 2 m (per pod) | | Beam Angle | 22° | | Field Angle | 36° | | Color Mixing | RGB+UV | | Strobe Rate | 0 to 19 Hz | | Built-In Programs | Yes | | Master/Slave Support | Yes | | Sound Active | Yes | | Protocols | DMX | | DMX Connectors | Input: XLR 3-pin
Output: XLR 3-pin | | DMX Channel Modes | 3 x Modes: 3, 10, or 30 channels | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: IEC
Output: Edison | | Power Linking | 120 V: 15 units
230 V: 27 units | | Power Consumption | 34 W, 0.5 A @ 120 V, 60 Hz
32 W, 0.3 A @ 230 V, 50 Hz | | Display/Controls | LED display with 4-button control panel | | Remote Control Compatibility | IRC-6 | | Cooling | Fan-cooled | | Certifications & Approvals | CE | | Dimensions | 11.0 x 8.0 x 6.0" / 285 x 207 x 155 mm | | Weight | 3.4 lb / 1.5 kg | | | | Package Weight | 5.05 lb | | Box Dimensions (LxWxH) | 13.701 x 12.441 x 6.457" |
