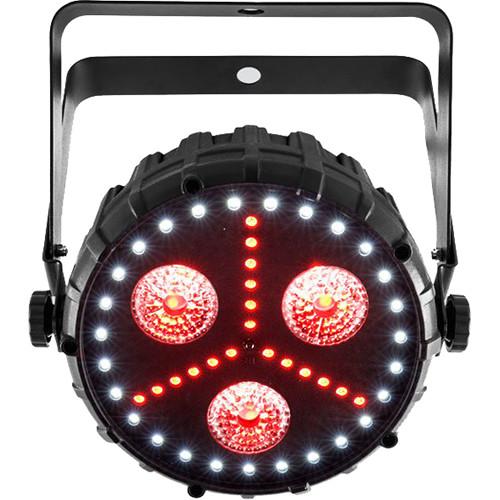

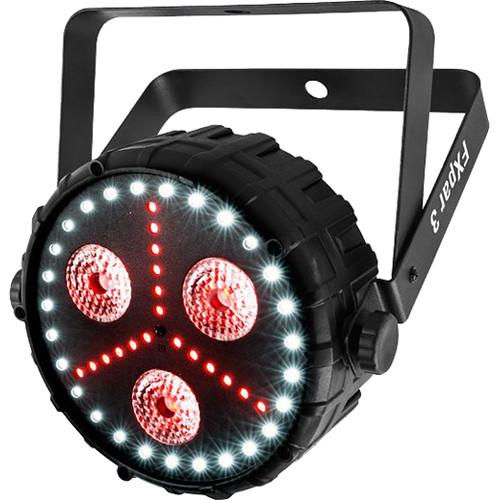

Product description The FXpar 3 from Chauvet is a compact LED effect PAR that combines three LED technologies with three quad-color LEDs, 27 white surface-mount-diode (SMD) LEDs, and 18 tri-color SMD LEDs. Control the white, tri-color, and quad-color separately for spectacular dynamic effects. The on-board display allows you to navigate through a number of functions including static colors, automatic programs, speed, dimmer, sound-activation mode, custom color mixing. The fixture offers a 3-channel or 9-channel DMX mode for flexibility in your intelligent lighting setup. The instrument also includes built-in infrared technology, offering easily controllable static colors, color mixing, and automated programs with the use of the optional IRC-6 remote. The FXpar 3 ships with a power cord. - Benefits
-
- Compact effect PAR with multiple technologies in a single fixture
- RGB + UV in center wash for increased color mixing and effects

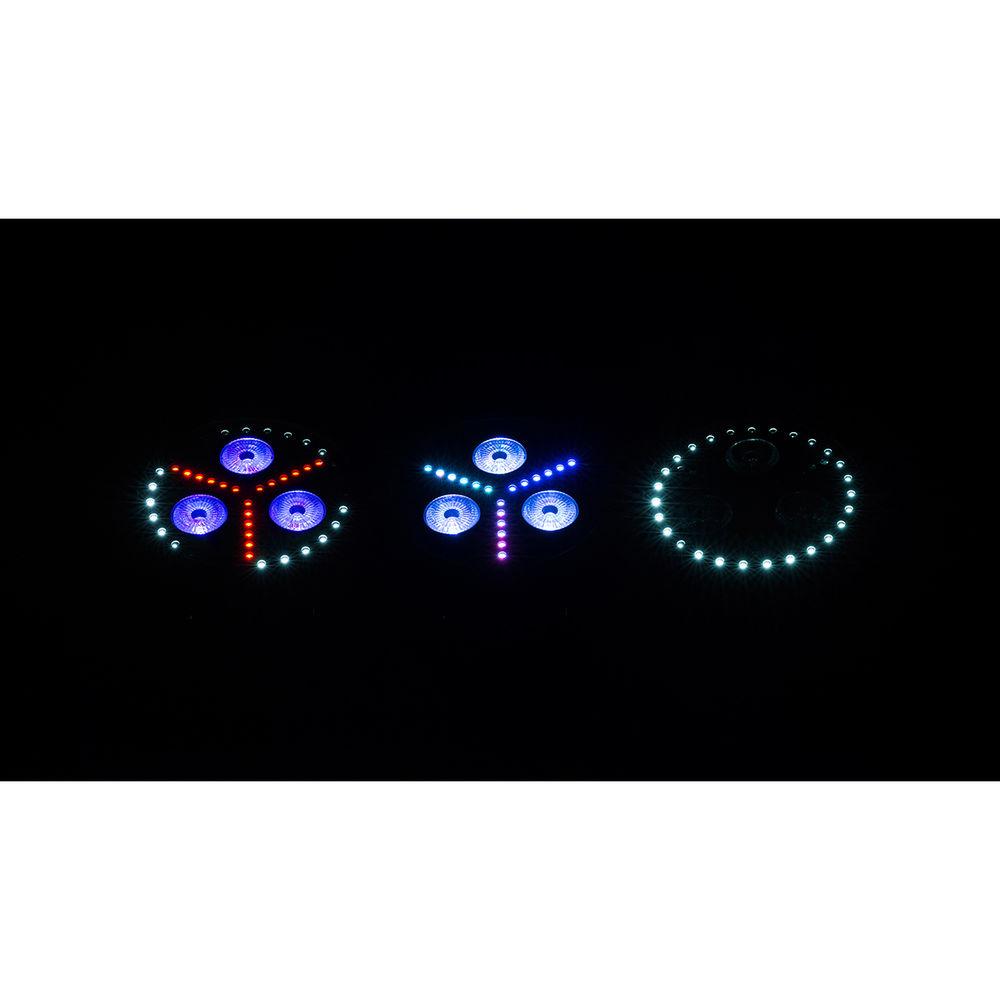

- Separate control of center LEDs, RGB SMDs and white SMD strobes for dynamic effects

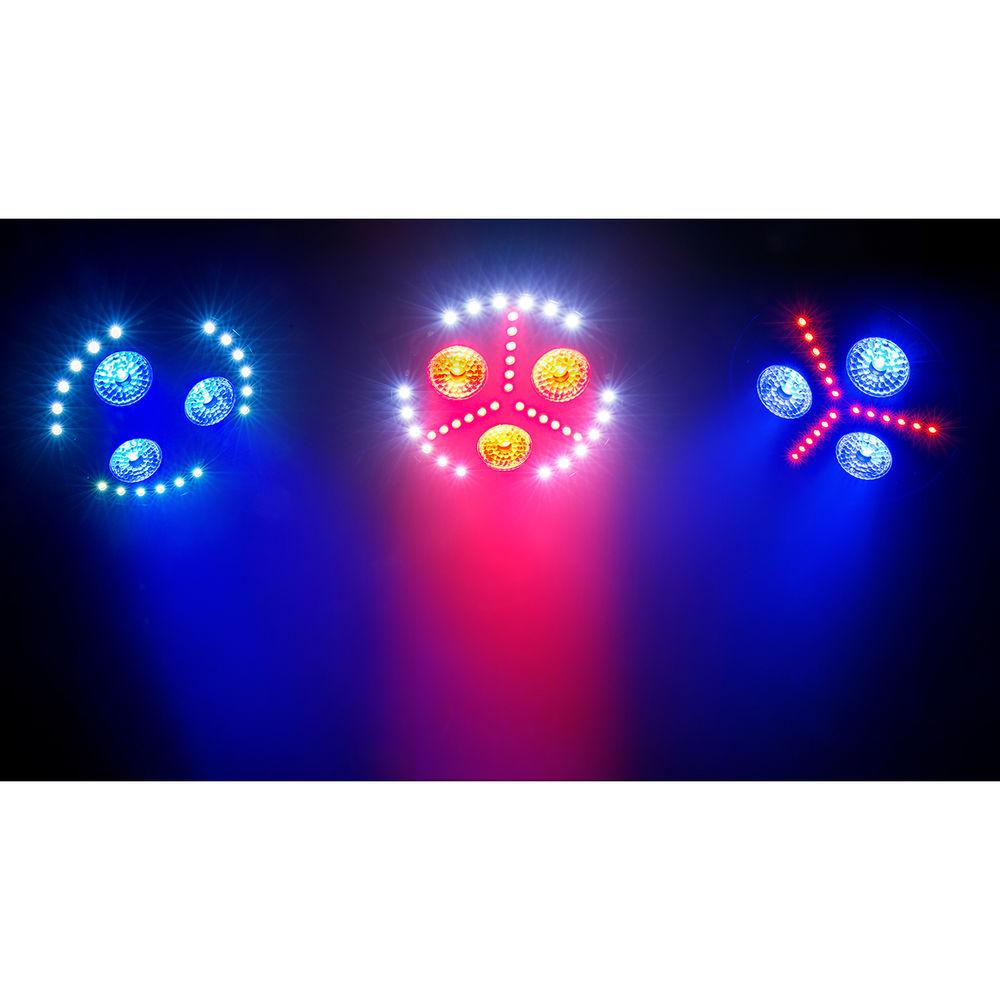

- Generate eye-catching effects with sound-activated and automated programs
- Power linking saves time setting up
- Compact design easily fits inside sticks of TRUSST
- Compatible with the optional IRC-6 for flexible control over all features
- Fits in the optional CHS-40 VIP gear bag
UPC: 781462216252 In the Box CHAUVET DJ FXpar 3 - Compact PAR Effect (RGB+UV and Strobe) Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ FXpar 3 - Compact PAR Effect in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ FXpar 3 Specs | Light Source | LED: 3 x LEDs (quad-color RGB + UV), 8 W (2.4 A)
White SMDs: 27 x LEDs (cool white), 0.5 W (0.1 A)

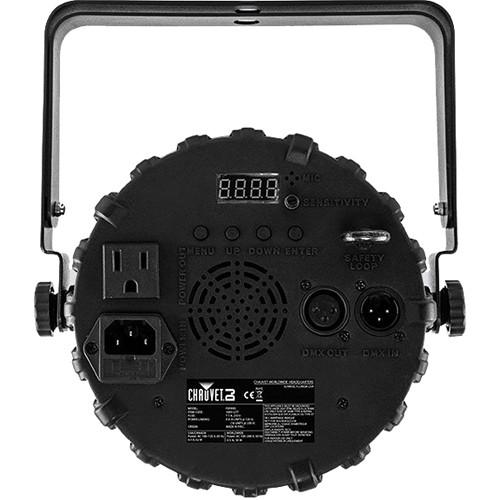

RGB SMDs: 18 x LEDs (tri-color RGB), 0.5 W (0.2 A) | | Life Expectancy | 50,000 hours | | Illuminance | 1,118 lux @ 6.56' | | Beam Angle | 22° | | Field Angle | 46° | | Shutter/Strobe | Electronic | | Strobe Rate | 0 to 20 Hz | | Color Mixing | RGB+UV | | Protocols | DMX | | DMX Connectors | Input: XLR 3-pin
Output: XLR 3-pin | | DMX Channel Modes | 3 or 9 channels | | Built-In Programs | Yes | | Master/Slave Support | Yes | | Remote Control Compatibility | IRC-6 | | Input Voltage | 100-240 VAC, 50/60 Hz (auto-ranging) | | Power Linking | 120 VAC: 9 units
230 VAC: 16 units | | Power and Current | 120 V, 60 Hz: 62 W, 0.9 A
230 V, 50 Hz: 59 W, 0.5 A | | Approvals | CE | | Dimensions | 10.3 x 8.4 x 3.0" / 264 x 214 x 76.9 mm | | Weight | 2.2 lb / 1.0 kg | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 12.0 x 10.4 x 5.3" |
