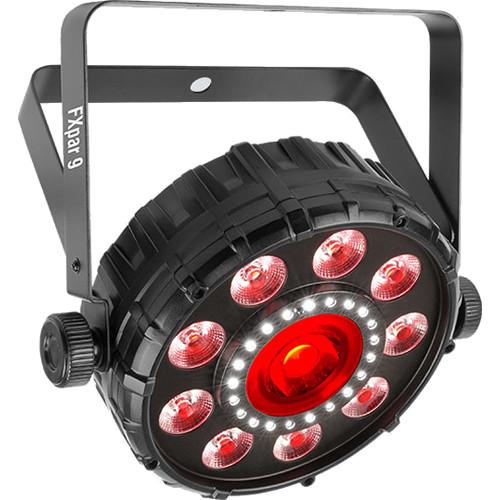

User Manual for CHAUVET DJ FXpar 9 Multi-Effects LED Fixture Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ FXpar 9 Multi-Effects LED
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ FXpar 9 Multi-Effects LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|
Product description - FXpar 9 by CHAUVET DJ
- CHAUVET DJ Gig Lab: Cool DJ Set up Concept - FXpar 9

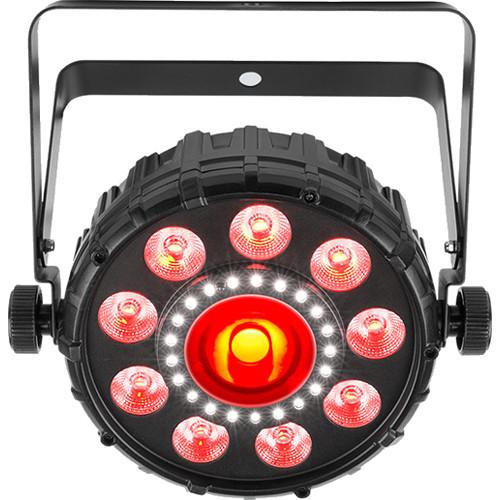

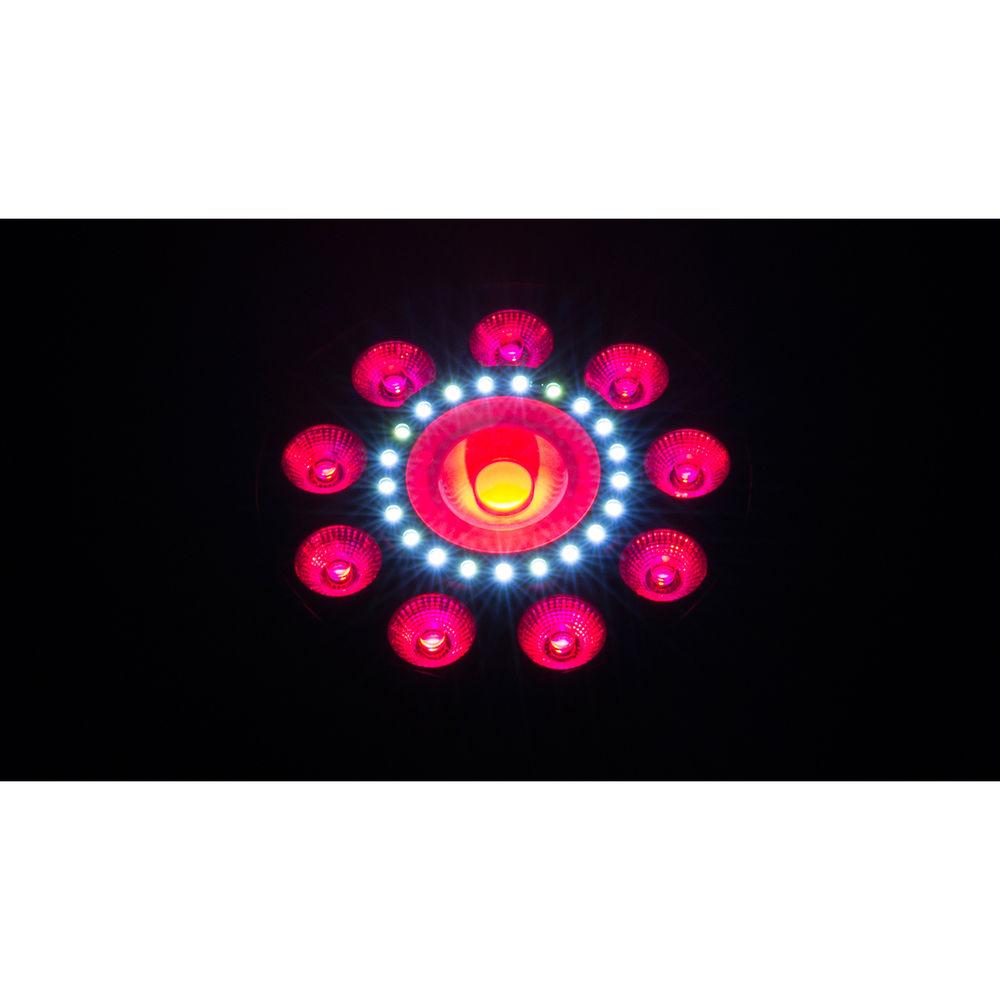

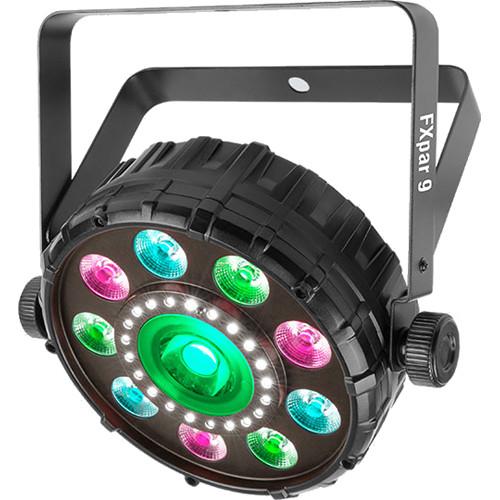

The bright CHAUVET DJ FXpar 9 combines a ring of nine RGB+UV (red, green, blue + ultraviolet) LED wash lights, a single RGB (red, green, blue) COB LED, and a ring of twenty-one cool-white SMD LED strobes, in a single compact fixture. The effects can be coordinated to create instant light shows with UV-infused color washes, eye-catching strobe effects, and a wide variety of chases. The fixture provides a wide field angle of 45° and is suitable for blanketing a stage or dance floor.The FXpar 9 allows for both standalone and DMX operation. For use without a DMX controller, you can choose between sound-active or automatic modes. The Master/Slave option lets you coordinate multiple fixtures without the need for a controller. The fixture is equipped with a universal, auto-sensing power supply and is compatible with the IRC-6 wireless remote (available separately). - Key Features
-
- Create instant light shows with multicolored washes, eye-catching strobes, and chases

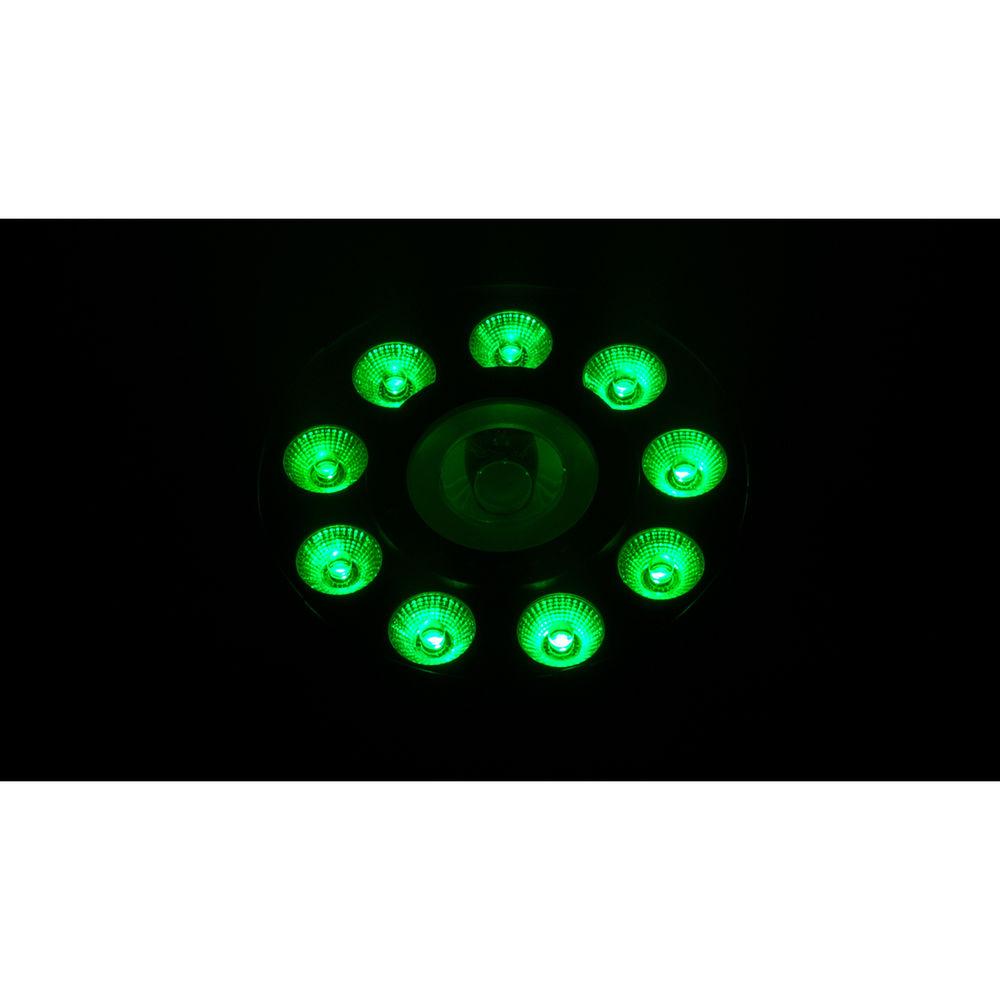

- Outer ring of nine RGB+UV (red, green, blue, white, ultraviolet) LED for wash effect

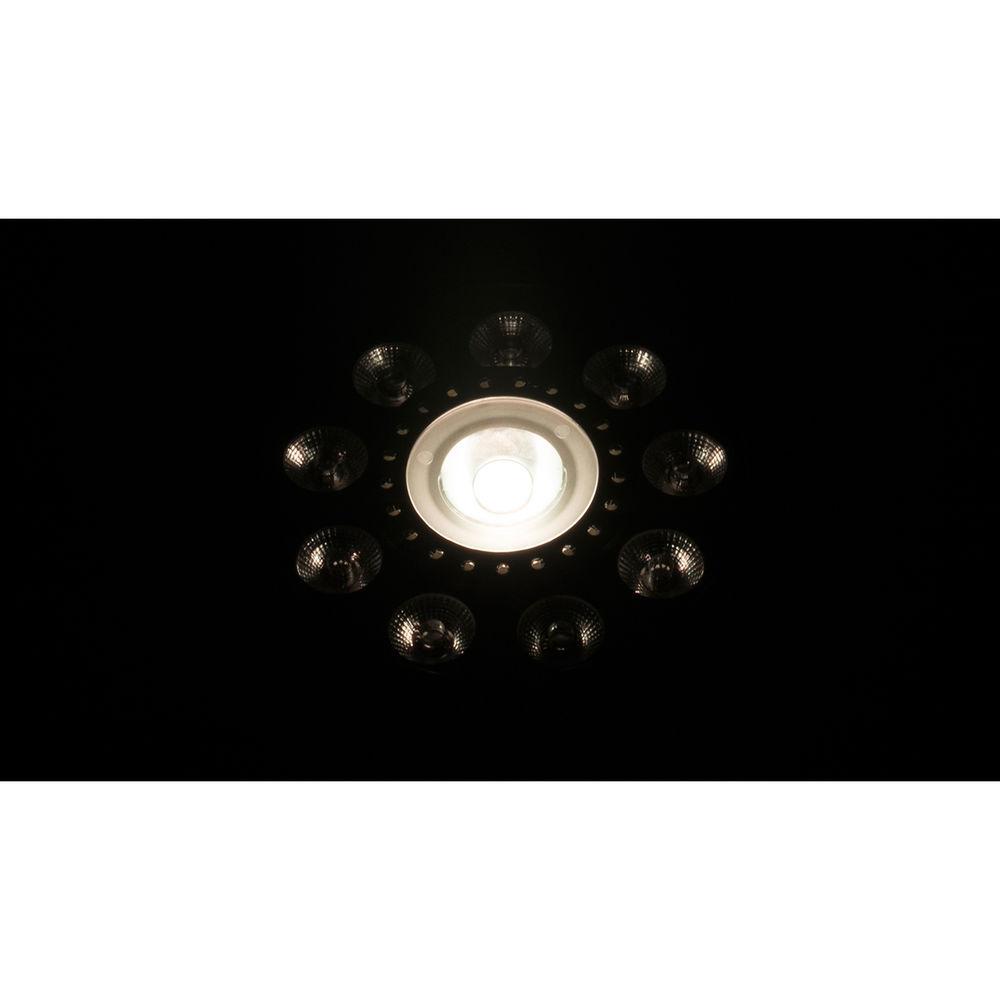

- Single center RGB (red, green, blue) COB LED

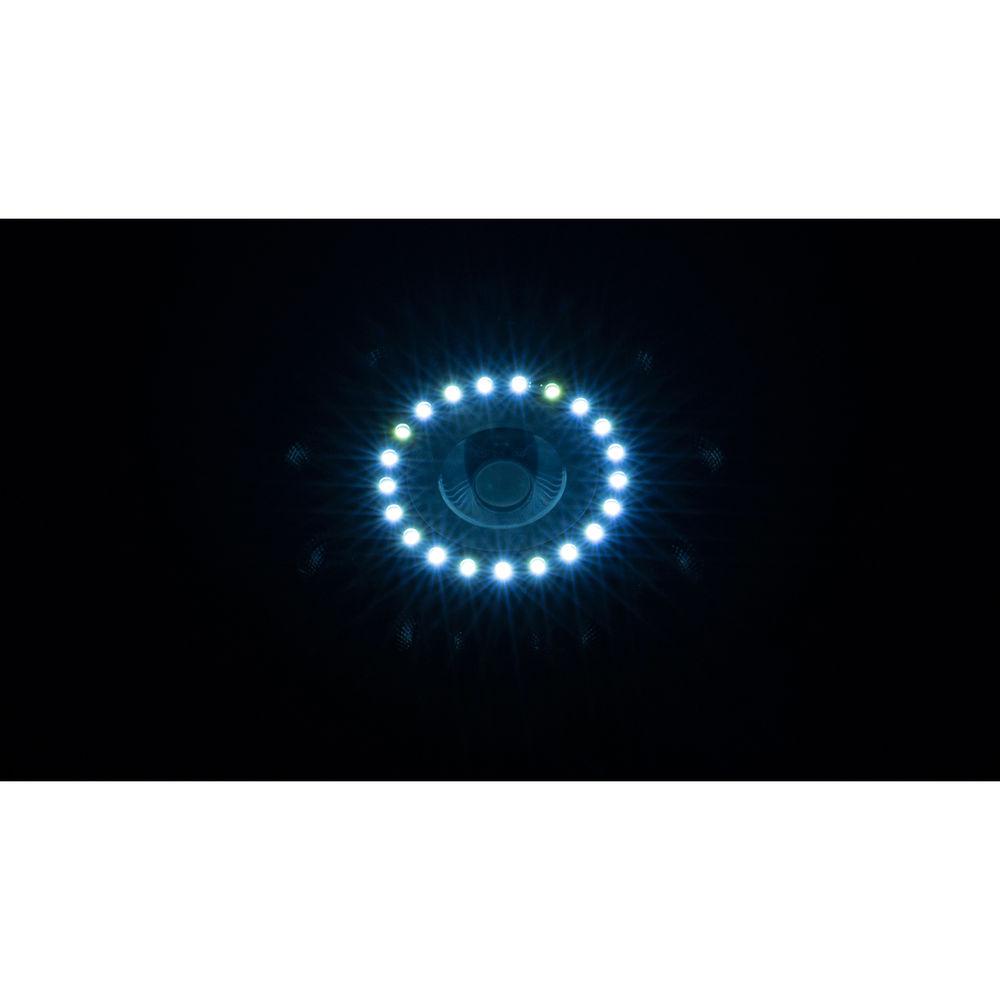

- Ring of twenty-one cool-white SMD LED strobes
- 25° beam angle, 45° field angle
- Built-in automated programs, sound-activated
- Standalone or Master/Slave configuration
- 4 x DMX channel modes

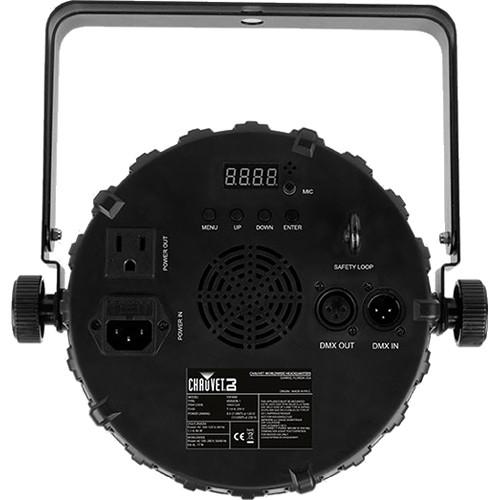

- LED display with 4-button menu for easy navigation
- Save time running cables and extension cords by power-linking up to 7 units at 120V or 8 units at 230 V
- Compatible with the IRC-6 wireless remote for quick and simple control (available separately)
- Dual-yoke hanging bracket with mounting hardware included
- Multi-voltage operation: 100-240 VAC, auto-ranging
UPC: 781462215736 In the Box CHAUVET DJ FXpar 9 Multi-Effects LED Fixture Power Cord Hanging Bracket with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ FXpar 9 Multi-Effects LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ FXpar 9 Specs | Light Sources | Outer Ring
9 x 4 W quad-color RGB+UV (red, green, blue, ultraviolet) LEDs
Current: 1.4 A
Center
1 x 4 W tri-color RGB (red, green, blue) COB LED
Current: 2 A
Strobe
21 x 0.5 W cool white SMD (surface-mount device) LEDs
Current: 0.2 A | | LED Life Expectancy | 50,000 hours | | Beam Angle | 25° | | Field Angle | 45° | | Illuminance | 1450 lux at 6.5' / 2 m | | Strobe Rate | 0 to 16.4 Hz | | Operation Modes | DMX, Standalone, Master/Slave | | Built-In Programs | Automatic, Sound-Active | | Display/Controls | LED display with 4-button control panel | | Wireless Control | IRC-6 remote (available separately) | | DMX Connectors | Input: 1 x XLR 3-pin
Output: 1 x XLR 3-pin | | DMX Channel Modes | 2, 6, 9 or 23 | | Power Linking | 7 units, 8 A at 120 VAC
13 units, 8 A at 230 VAC | | Input voltage range | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: 1 x IEC
Output: 1 x Edison | | Input Voltage Range for Main Operations | 80 W, 1.1 A at 120 V, 60 Hz
77 W, 0.6 A at 230 V, 50 Hz | | Fuse | T 1.6 A, 250 V | | Maximum Operating Temperature | 104°F / 40°C | | Cooling System | Fan-assisted convection | | Mounting | Dual-yoke hanging bracket | | Approvals | CE | | Dimensions | 10.9 x 10.8 x 2.9" / 276.8 x 274.3 x 73.6 mm | | Weight | 3.6 lb / 1.6 kg | | | | Package Weight | 4.9 lb | | Box Dimensions (LxWxH) | 12.7 x 12.3 x 5.2" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to CHAUVET DJ FXpar 9 Multi-Effects LED Fixture
| Subject: FX Par 9 Reset | | Date: 29.06.2022 21:34:28 | Name: Andy McMillian | How do I do a hard reset on on of our FX Par 9's?
205-482-8364 is my number if that would be easier? | | Post reply |
