User Manual for CHAUVET DJ Geyser P5 RGBA UV LED Pyrotechnic-Like Effect Fog Machine Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Geyser P5 RGBA UV
- Product category: Fog & Haze Machines CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ Fog & Haze Machines
 |
User manual for the CHAUVET DJ Geyser P5 RGBA UV contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

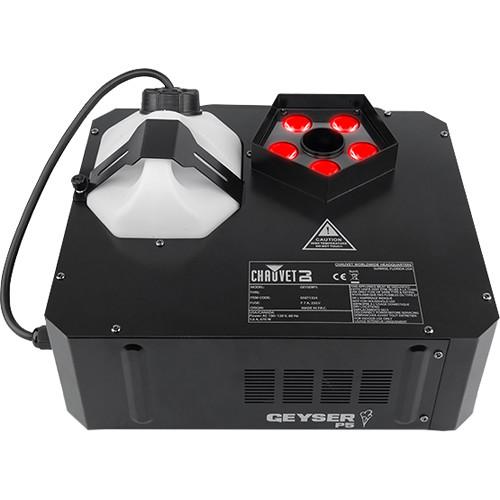

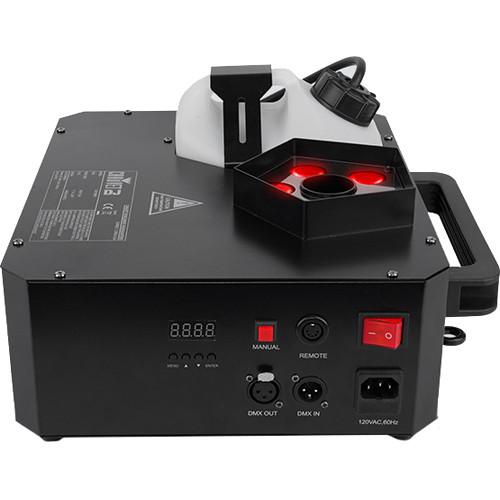

Product description The Chauvet DJ Geyser P5 combines five 7W penta-color (RGBA+UV) LEDs and a fog machine to create dramatic pyrotechnic-like effects with beautiful color mixing and color macros. With its small form factor, it is well suited for mobile DJs or permanent installations in clubs, concert halls, and other venues.The unit features instant on/off technology, which allows you to precisely time your effects using the on-board manual control button or the included wireless remote. For in-depth control, the DMX mode uses 10 channels. The unit uses water-based quick-dissipating fluid (QDF), which is non-toxic and leaves no residue. The Chauvet DJ Geyser P5 ships with a power cord, a wireless remote control, and a receiver. -
- Pyrotechnic-like effect without the use of any toxic chemicals, fire or heavy CO2 canisters
- Control the unit from built-in DMX, included Geyser wireless remote, or manual control
- Penta-color RGBA+UV LEDs create beautiful color mixing
- Digital display allows for easy configuration even in a fast-paced environment
- Assign different colors to each of the remote’s buttons and the manual button
- Small form factor allows the unit to go anywhere
UPC: 781462216726 In the Box CHAUVET DJ Geyser P5 RGBA+UV LED Pyrotechnic-Like Effect Fog Machine Geyser P5 Wireless Remote Control and Receiver Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Geyser P5 RGBA UV LED Pyrotechnic-Like Effect Fog Machine in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Geyser P5 Specs | Light Source | 5 x RGBA+UV penta-color LEDs; 7 W (2.6 A) | | Life Expectancy | 50,000 hours | | Illuminance | 1036 lux at 6.5' / 2 m | | Output | 13,500 ft³/minute | | Tank Capacity | 0.7 gal / 2.5 L | | Heat-up Time | 5 minutes | | Fluid Consumption | 91 mL/minute | | Compatible Fluid | QDF (Quick Dissipating Fluid) | | DMX Connectors | Input: XLR 3-pin
Output: XLR 3-pin | | DMX Channel Modes | 1 x Mode: 10 channels | | Wireless Control | Geyser wireless remote and receiver (included) | | Display/Controls | LED display and four-button control panel | | Input Voltage | 120 VAC, 60 Hz, fixed | | Power Connector | Input: IEC
Power Cord Plug: Edison | | Power Consumption | 670 W, 5.6 A @ 120 V, 60 Hz | | Approvals | CE | | Dimensions (L x W x H) | 14.7 x 13.5 x 7.5" / 375 x 342 x 190 mm | | Weight | 13.4 lb / 6.1 kg | | | | Package Weight | 19.2 lb | | Box Dimensions (LxWxH) | 18.11 x 16.535 x 10.866" |
