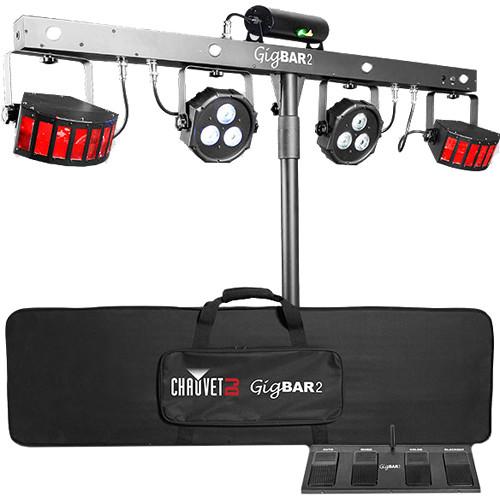

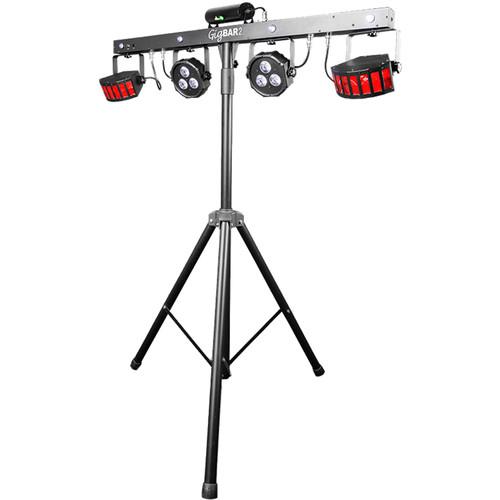

Product description Ideal for the mobile entertainer, the CHAUVET DJ GigBAR 2 is an all-in-one lighting system designed to flood your stage or dance floor with a variety of exciting lighting effects and beam patterns. It includes a pair of RGB LED derby fixtures, a pair of RGB+UV LED PARs, a laser, and four white/UV strobes, all mounted on a single bar and supported by the included tripod. The effects can be coordinated to create instant light shows with countless multicolor LED beams, UV-infused color washes, eye-catching strobe effects and chases, and hundreds of red and green laser beams that can both rotate and strobe. Easy to operate and packed with creative options, the GigBAR 2 offers a standalone mode with built-in automated and sound-activated programs. The Master/Slave configuration lets you link multiple systems to create synchronized color chases. The included wireless footswitch provides DJs and performers with hands-free activation of preset colors, color-change programs, and sound activation. For full remote control of all features, the unit can also be operated using the DMX mode with a choice of three channel options. The GigBAR 2 ships with two mounting L-brackets for rigging it to a truss, and two carry bags that let you comfortably transport the fixtures and the tripod. - Effects
-
- Two derby-effect lights, with two red, two green, and two blue LEDs each—project countless razor-sharp multi-color beams
- Two color-mixing quad-color RGB+UV LED PARs for blacklight effects and UV-infused washes
- One laser fixture scatters hundreds of bright red/green dots and beams in multiple directions—use red and green laser beams individually or together
- Four high-power white/UV LED strobe lights produces eye-catching white or ultraviolet strobe chases and slow-motion effects
- Control
-
- Three DMX channel modes: 3, 11, and 23 channels
- Run built-in automatic programs in standalone mode for shows right out of the box
- Let the environment control the fixture in sound-active mode
- Use Master/Slave configuration with other fixtures for a coordinated show
- LED display with 4-button control panel and user-friendly menu structure
- Use the included IRC-6 wireless remote for quick and simple control
- Use the included wireless footswitch for hands-free activation of preset colors, color-change programs, and sound activation
- Linking
-
- DMX-link to other fixtures via the XLR 3-pin DMX input and output connections
- Power-link up to 8 fixtures at 120V or up to 15 fixtures at 230V
- Other Features
-
- Includes tripod stand with carry bag
- Includes gear bag to hold fixtures
- Includes two L-brackets to attach fixture to truss
- Multi-voltage operation: 100-240 VAC, auto-ranging
UPC: 781462215521 In the Box CHAUVET DJ GigBAR 2 All-in-One Lighting System Tripod Stand 2 x L-Brackets Wireless Footswitch with Battery IRC-6 Wireless Remote Gear Bag Tripod Carry Bag Power Cord Limited 2-Year Warranty for DMX-Controlled Fixtures, Limited 1-Year Warranty for Hardware and Bags, Limited 6-Month Warranty for Laser Diodes Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ GigBAR 2 All-in-One Lighting System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ GigBAR 2 Specs | Light Sources | Derby Lights
6 x 6 W RGB LEDs (2 x red, 2 x green, 2 x blue)
Current: 1.7 A
PARs
6 x 2.5 W quad-color RGB+UV (red, green, blue + ultraviolet) LEDs
Current: 1.1 A
Strobes
4 x 1.8 W white / UV LEDs
Current: 600 mA
Lasers
1 x 650 nm red laser diode, 100 mW
1 x 532 nm green laser diode, 30 mW
Class 3R levels | | LED Life Expectancy | 50,000 hours | | Beam and Field Angle | PARs: 13° / 24°
Strobe: 8° / 18° | | Coverage Angle | Laser: 93°
Derby: 114° | | Illuminance | PARs: 1205 lux at 6.6' (2 m), per head
Strobe: 86 lux at 6.6' (2 m), per zone | | Operation Modes | DMX, Standalone, Master/Slave | | Built-In Programs | Electronic Dimming: 0-100%
Sound Mixed effect (Sound-Active all)
Auto Mixed effect (Automatic all) | | Strobe Rate | Derby Lights: 0 to 30 Hz
Strobe Lights: 0 to 18 Hz
PARs: Slow, to fast
Laser: Slow, to fast | | DMX Connectors | Input: XLR 3-pin
Output: XLR 3-pin | | DMX Channel Modes | 3, 11, or 23 channels | | Display/Controls | LED display with 4-button control panel | | Wireless Control | Footswitch (included)
IRC-6 Remote (included) | | Footswitch | Operating Frequency: 433 MHz
Range: 100' (30.5 m), unobstructed
Battery: 12 V, 23 A | | Input Voltage | 100-240 VAC, 50/60 Hz (auto-ranging) | | Power Connection Type | Input: IEC
Output: Edison
Power Cord Plug: Edison | | Power Linking | 8 units, 10.4 A at 120 V, 60 Hz
15 units, 10.4 A at 230 V, 50 Hz | | Power Consumption | 68 W, 1 A at 120 V, 60 Hz
64 W, 0.5 A at 230 V, 50 Hz | | Fuse | T 1.6 A, 250 V | | Operating Temperature | Maximum: 95°F (35°C) | | Cooling System | Fan-cooled and convection | | Certifications | Classified per EN/IEC 60825-1:2007
Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
Approvals: CE, FDA, FCC | | Dimensions | GigBAR 2 (L x W x H)
46.7 x 4.3 x 15.2" (1185 x 110 x 387 mm)
Tripod
Minimum Height: 4.8' (1.5 m)
Maximum Height: 8.3' (2.5 m)
Leg Footprint: 3.9' (1.2 m)
Fits Tripod Size: 1.5" (37.4 mm) | | Weight | 14.4 lb (6.6 kg) | | | | Package Weight | 40.5 lb | | Box Dimensions (LxWxH) | 57.0 x 23.5 x 6.0" |
