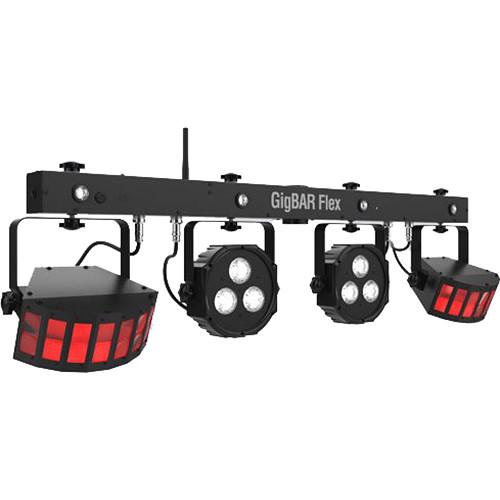

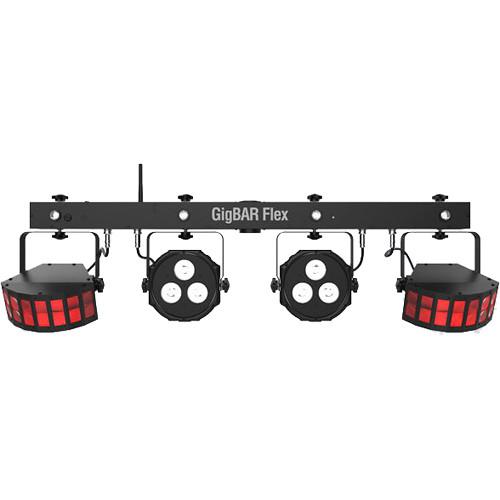

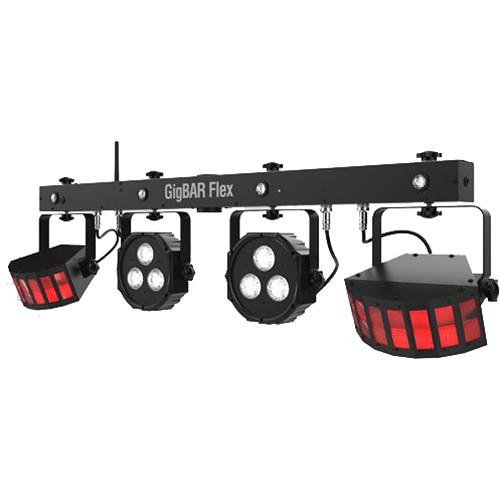

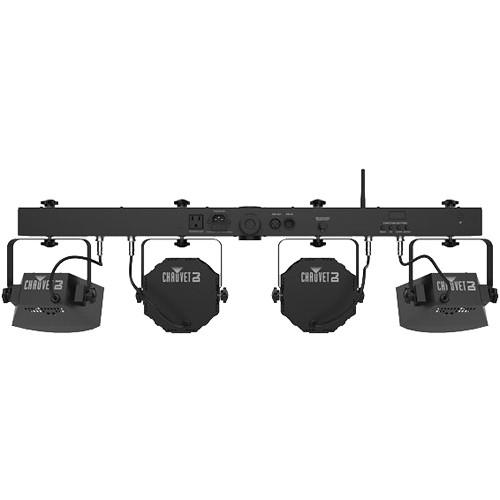

Product description Ideal for the mobile entertainer, the CHAUVET DJ GigBAR Flex is a three-in-one, pack-and-go lighting system with a wireless foot controller, designed to flood your stage or dance floor with a variety of exciting lighting effects and beam patterns. The system includes two derby fixtures, which each contain 2 Red, 2 Green, and 2 Blue LEDs. Also, there is a pair of RGB+UV LED PARs, and four white/UV strobes, all mounted on a single bar. The effects can be coordinated to create instant light shows with countless multicolor LED beams, UV-infused color washes, eye-catching strobe effects and chases that can both rotate and strobe.
The GigBAR Flex utilizes a pass-through mounting hole for flexible mounting options compatible with various stage and speaker stands. Additionally, the adjustable leg brackets add versatility for floor deployment. Each of the four heads are individually adjustable, while the bar can mount another four fixtures for expanded shows. Create dynamic light shows using the built-in automated and sound-activated programs. The system can also be controlled via DMX with three-channel modes (3, 8, 22) or via the included IRC-6 remote control or the wireless footswitch. The CHAUVET DJ GigBAR Flex also ships with a power cord and carrying bag. -
- 3-in-1 fixture includes a pair of LED Derby, LED pars and strobe effect for ultimate convenience
- Pass-through mounting hole for flexible mounting options with various stage and speaker stands
- Built-in UV (black light) for increased color mixing and effects
- Four individually adjustable heads provide wide room coverage and lighting versatility
- Wireless foot-switch for convenient hands-free control
- Built-in automated and sound-activated programs make dynamic light shows easy
- Get in and get out quickly with the included wireless foot switch and an included carry bag
- Master/slave multiple units under the control of a single IRC-6 or wireless foot switch
UPC: 781462217679 In the Box CHAUVET DJ GigBAR Flex 3-in-1 Pack-n-Go Lighting System Wireless Foot Switch with Battery IRC-6 Wireless Remote Carrying Bag Power Cord Limited 2-Year Warranty for DMX-Controlled Fixtures, Limited 1-Year Warranty for Hardware and Bags Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ GigBAR Flex 3-in-1 Pack-n-Go Lighting System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ GigBAR Flex Specs | Light Sources | Par: 6 x LEDs (quad-color RGB + UV) 3.5 W (1 A)
Derby: 6 x LEDs (2 red, 2 green, 2 blue) 5 W (1.6 A)
Strobe: 4 x LEDs (white & UV) 5 W (1.5 A) | | LED Life Expectancy | 50,000 hours | | Strobe Rate | 0 to 18 Hz | | Beam and Field Angle | Beam Angle:
Pars: 13°
Strobe: 8°
Field Angle:
Pars: 24°
Strobe: 18° | | Coverage Angle | Derby: 114° | | Illuminance | PARs: 1078 lux at 6.6' / 2 m, per head
Strobe: 86 lux at 6.6' / 2 m, per zone | | DMX Connectors | Input: XLR 3-pin
Output: XLR 3-pin | | DMX Channel Modes | 3, 8, or 20 channels | | Display/Controls | LED display with 4-button control panel | | Footswitch | Operating Frequency: 433 MHz
Maximum Distance: 100' / 30.5 m, unobstructed
Battery: 12 V, 23 A | | Power Connection Type | Input: IEC
Output: Edison
Power Cord Plug: Edison | | Power Linking | 12 units at 120 V, 60 Hz
22 units at 230 V, 50 Hz | | Power | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:
45 W, 0.7 A at 120 V, 60 Hz
46 W, 0.4 A at 230 V, 50 Hz | | Operating Temperature | Maximum: 104°F / 40°C | | Cooling System | Convection | | Approvals | CE | | Dimensions (L x W x H) | 37.0 x 4.0 x 15.0" / 939.8 x 101.6 x 381.0 mm | | Weight | 11.0 lb / 5.0 kg | | | | Package Weight | 22.05 lb | | Box Dimensions (LxWxH) | 41.5 x 13.75 x 5.25" |
