User Manual for CHAUVET DJ Gobo Zoom USB CW LED Gobo Projector Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Gobo Zoom USB CW
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ Gobo Zoom USB CW contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

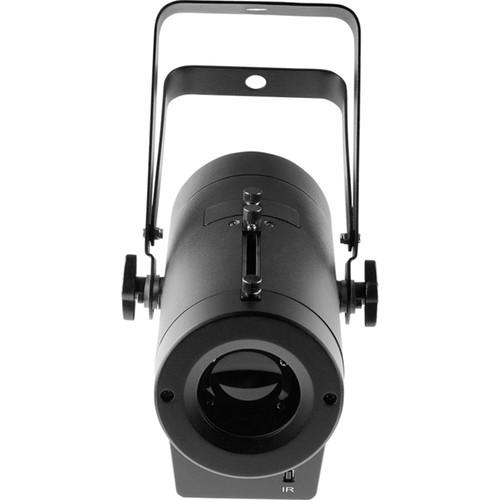

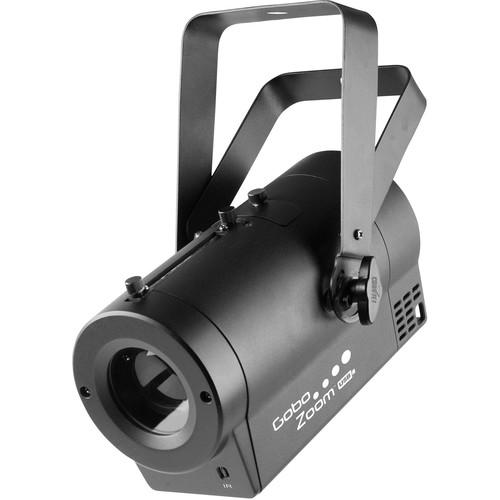

Product description The CHAUVET DJ Gobo Zoom USB is a compact and bright LED gobo projector that lets venue designers, production companies, and mobile DJs communicate their message with light, in clubs, stores, or event spaces.Easy to use, the Gobo Zoom USB comes with ten, wedding-ready gobos so you can start using it right out of the box. It also accepts custom gobos printed on transparency film, including patterns and messages. The unit is outfitted with a 17 to 28° manual zoom for short-throw or long-throw applications.The Gobo Zoom USB is equipped with a USB port that accepts the D-Fi USB transceiver (available separately). The D-Fi USB enables wireless DMX control and eliminates the need for DMX cables. In standalone mode, you can control the dimmer as well as the gobo's rotation speed and direction via the onboard LED display and its 4-button menu. The Master/Slave option lets you coordinate multiple fixtures without the need for a controller.You can daisy-chain power for up to 13 units at 120V, or 24 units at 230V. The Gobo Zoom USB comes equipped with a dual-yoke bracket that can be used for conventional mounting to a truss or lighting stand, or to create a variable-angle floor stand. The fixture is compatible with the IRC-6 wireless remote (available separately). - Key Features
-
- Compact and bright 25W CW (cool white) LED gobo projector
- 17 to 28° manual zoom for short throw or long throw applications
- Control gobo rotation speed and direction
- Includes a set of ten wedding-ready gobos
- Accepts custom gobos printed on transparency film, including patterns and messages
- 0-100% electronic dimming
- USB port lets you plug in the D-Fi USB transceiver (available separately), for wireless Master/Slave or DMX control
- 1 x DMX channel mode
- Standalone or Master/Slave configuration

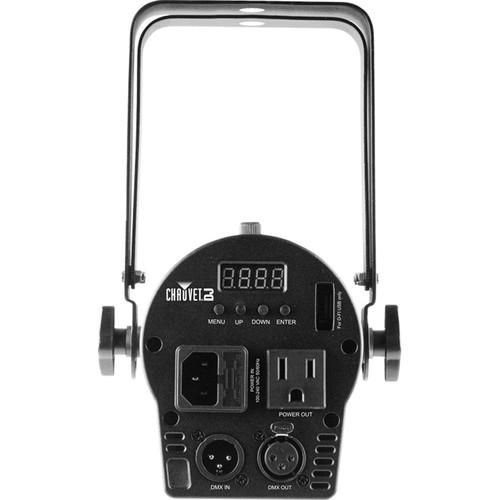

- LED display with 4-button menu for easy navigation
- Compatible with IRC-6 wireless remote (available separately)
- Double-bracket yoke can be used for conventional mounting or as a variable-angle floor stand
- Daisy-chain power for up to 13 units at 120V, or 24 units at 230V
- Multi-voltage operation: 100-240 VAC, auto-ranging
UPC: 781462214067 In the Box CHAUVET DJ Gobo Zoom USB CW LED Gobo Projector Set of 10 Wedding-Ready Gobos Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Gobo Zoom USB CW LED Gobo Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Gobo Zoom USB Specs | Light Source | 1 x 25 W LED (cool white)
Current: 6 A
Life expectancy: 50,000 hours | | Zoom Angle | 17 to 28°, manual | | Illuminance | 17°: 3075 lux at 6.6' / 2 m
28°: 1121 lux at 6.6' / 2 m | | PWM Frequency | 1200 Hz | | Gobo Size | Outside: 1.01" / 25.74 mm
Maximum Image: 0.76" / 19.38 mm
Maximum Thickness: 0.04" / 1.00 mm | | Operating Modes | DMX
Master/Slave
Standalone | | Effects | Electronic Dimming: 0-100%
Gobo Rotation: Right/left, slow/fast | | DMX Interface | DMX Channel Modes: 2
DMX Connectors: 3-pin XLR, in/out | | Wireless Control | D-Fi USB transceiver (available separately)
IRC-6 remote (available separately) | | Display/Controls | 4-character LED display
4-button control interface | | Power Linking | 13 units, 8 A at 120 V
24 units, 8 A at 230 V | | Input Voltage | 100-240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: IEC
Output: Edison | | Power and Current | 41 W, 0.7 A at 120 V, 60 Hz
39 W, 0.3 A at 230 V, 50 Hz | | Fuse | T 1 A, 250 V | | Mounting | Double-bracket yoke | | Maximum Operating Temperature | 104°F / 40°C
Cooling System: Fan-assisted convection | | Approvals and Certifications | CE | | Dimensions | 9.4 x 4.9 x 9.6" / 23.9 x 12.4 x 24.4 cm | | Weight | 4.4 lb / 2.0 kg | | | | Package Weight | 6.05 lb | | Box Dimensions (LxWxH) | 14.1 x 8.2 x 7.6" |
