User Manual for CHAUVET DJ Helicopter Q6 - Rotating Multi-Effects Light with Laser Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Helicopter Q6 - Rotating
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ Helicopter Q6 - Rotating contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

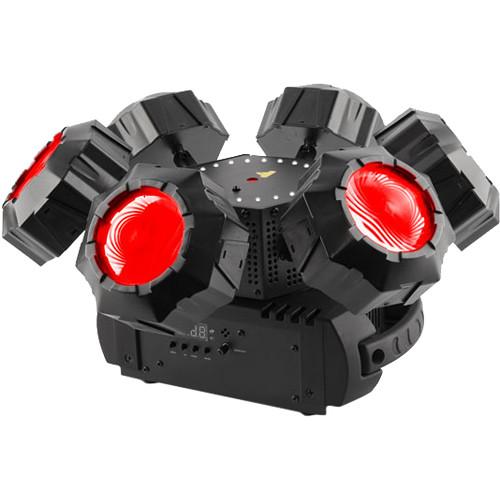

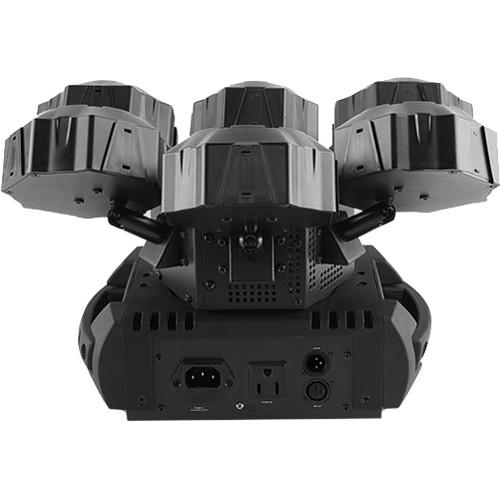

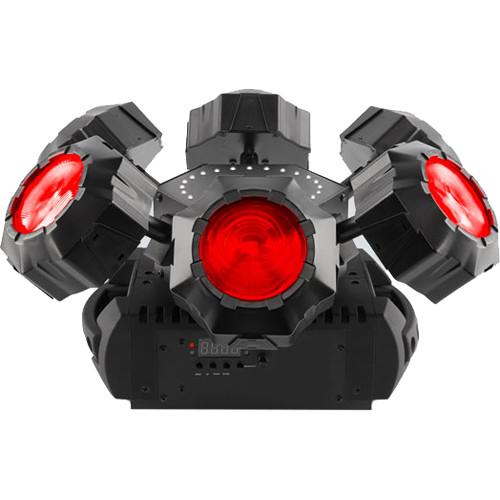

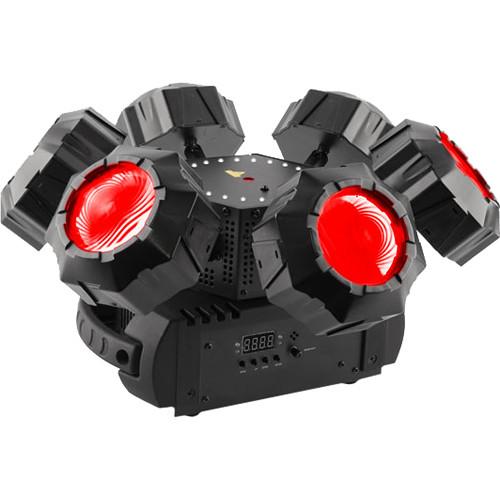

Product description Create dazzling effects while energizing the dance floor with the Helicopter Q6 from Chauvet, a versatile multi-effects light with 6 pods, each with an adjustable RGBW LED beams, 24 white surface mount device (SMD) strobe LEDs, and a laser section with a red and green laser diodes. The lights combine to create breath-taking and dynamic aerial effects on a rotating base with a continuous pan rotation and 360° of coverage. Each of the 6 pods can be addressed independently, offering maximum control.
The unit can be operated by built-in programs, sound activation, or via DMX with settings of 3 or 16 channel controls. The fixture can provide a strobe effect with a rate of 0 to 20 Hz. Up to 12 units can be power linked on a single 120V circuit (or 23 units at 230V). The Helicopter Q6 ships with a hanging bracket and mounting hardware. -
- A multi-effect light that includes adjustable RGBW beams, a round SMD strobe and a red/green pattern laser on a rotating base
- Continuous pan rotation that creates breath taking effects unlike any other light
- Narrow, razor-sharp beams of RGBW light for aerial effects
- Achieve maximum room coverage by positioning each of the 6 RGBW beams independently
- Rotating red and green laser produces thousands of razor sharp beams that cover a large area
- Flexible control using automated and sound-activated programs, Master/Slave, DMX or an optional IRC-6
- Save time running cables and extension cords by power linking multiple units
- Fits in the optional CHS-40 VIP gear bag
UPC: 781462216481 In the Box CHAUVET DJ Helicopter Q6 - Rotating Multi-Effects Light with Laser (RGBW) Power Cord with Edison Plug Hanging Bracket with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Helicopter Q6 - Rotating Multi-Effects Light with Laser in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Helicopter Q6 Specs | DMX | DMX Channels: 3 or 16
DMX Connectors: 3-pin XLR | | Pan & Tilt Range | 360° | | Light Source | Beam: 6 (RGBW) 6.9 W, (2 A), 50,000 hours life expectancy
Strobe: 24 LEDs (white) 1 W, (281 mA), 50,000 hours life expectancy
Laser: 650 nm / 100 mW (red) laser diode, 532 nm / 30 mW (green) laser diode | | Strobe Rate | Beam/Strobe: 0 to 20 Hz | | Beam Angle | 3° | | Power Linking | 12 Units at 120 V
23 Units at 230 V | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power | 41 W, 0.7 A at 120 V, 60 Hz
44 W, 0.4 A at 230 V, 50 Hz | | Approvals | CE, FDA | | Dimensions | 23.8 x 7.2 x 10.5" / 604.5 x 182.9 x 266.7 mm | | Weight | 8.8 lb / 4.0 kg | | | | Package Weight | 13.4 lb | | Box Dimensions (LxWxH) | 16.3 x 16.2 x 10.9" |
