User Manual for CHAUVET DJ Hurricane H1800 Flex Fog Machine with Wired Remote Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Hurricane H1800 Flex Fog
- Product category: Fog & Haze Machines CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ Fog & Haze Machines
 |
User manual for the CHAUVET DJ Hurricane H1800 Flex Fog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

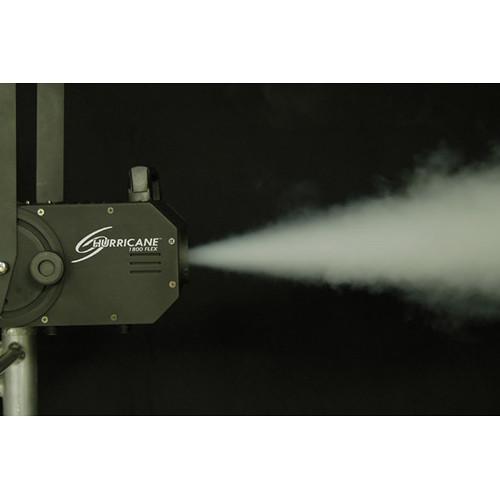

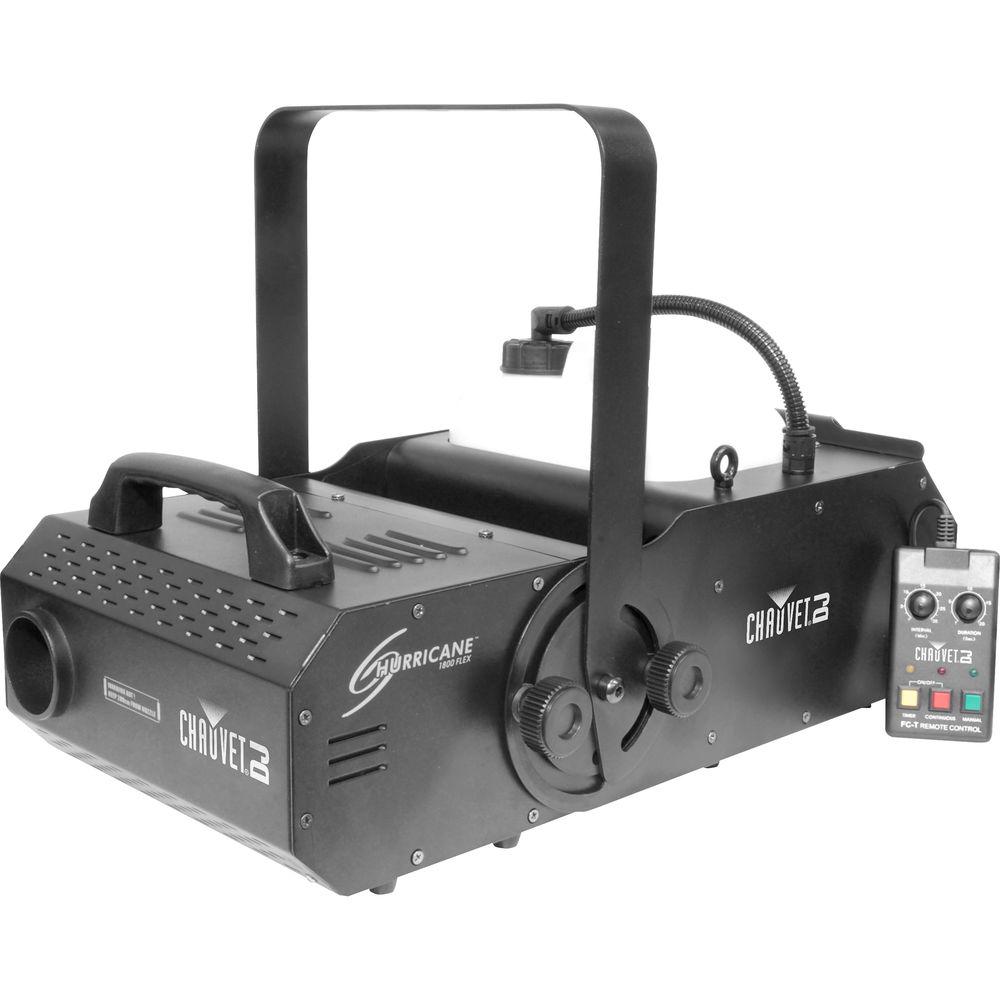

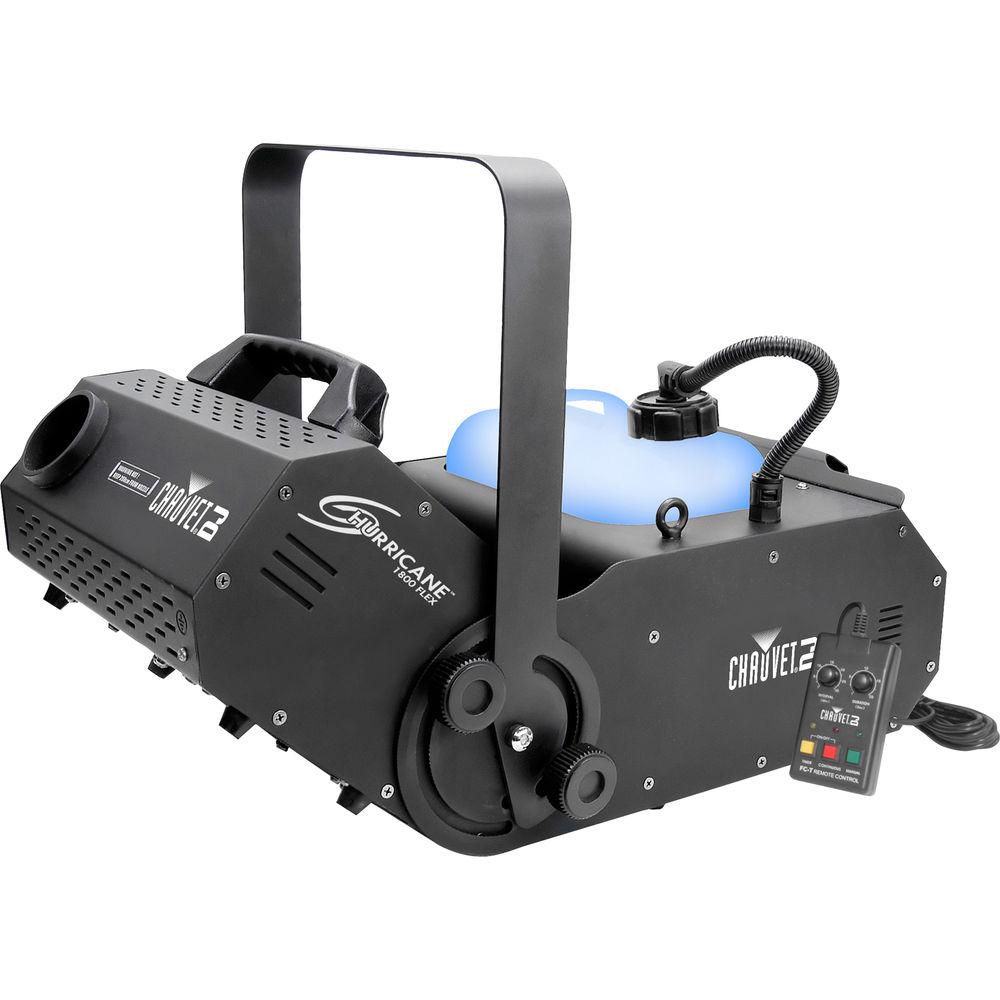

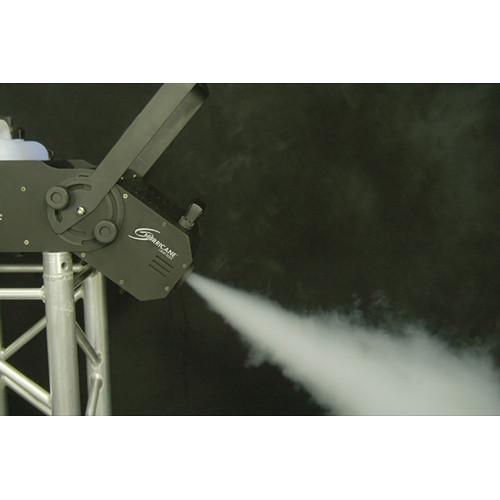

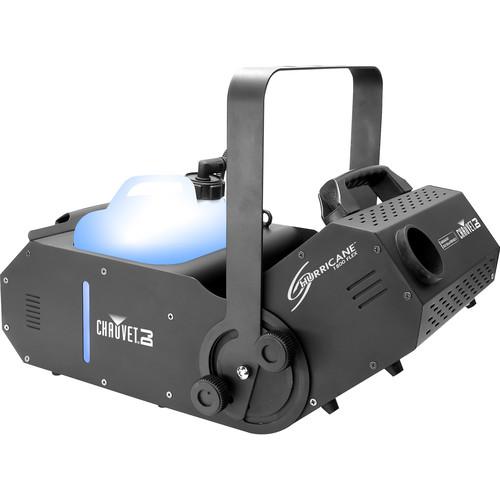

Product description The Hurricane Series H1800 Flex from Chauvet is a high-output, DMX fog machine with a wired remote control and an adjustable 180° output angle. The 1.3 gallon tank only takes five minutes to heat up and provides an output of 25,000 cfm. It features a low-fluid indicator and an advanced fluid sensor with automatic shut-off, which protects the pump from overheating. The LED-illuminated tank provides easy operation with a manual fog button or with the included wired remote control. -
- Compact, water-based fog machine offers DMX control
- Increase flexibility with a 180° manually adjustable output angle and 3- and 5-pin DMX connections
- Easy control using the manual fog button or the included timer remote
- Features a 1.3 gallon (5L) tank capacity and quick, 5-minute heat up time
- Output of 25,000cfm
- Enhance operation and safety with the LED-illuminated tank, low-fluid indicator, and automatic shutdown feature
- Compatible with optional wireless remote (FC-W)
UPC: 781462202965 In the Box CHAUVET DJ Hurricane H1800 Flex Fog Machine with Wired Remote FC-T Timer Remote Control for Select CHAUVET Fog Machines (15' Cable) Hanging Bracket with Mounting Hardware Power Cord (Hardwired) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Hurricane H1800 Flex Fog Machine with Wired Remote in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Hurricane H1800 Flex Specs | DMX | DMX Address: set via DIP switches
DMX Channels: 1
DMX Connectors: XLR 3- and 5-pin, input and output | | Tank Volume | 1.3 gallons / 5 liters | | Heat-up Time | 5 minutes | | Output | 25,000 cfm | | Fluid Consumption Rate | 5.1 fl oz/min / 150 ml/min | | Remote | FC-T Wired Timer Remote:
Cable Length: 15' / 4.6 m
Controls: interval and duration times; timer and continuous modes; manual override | | LED Indicators | Yes | | Input Voltage | 120 VAC, 60 Hz | | Power and Current | Consumption: 1,364 W
Operating Current: 11.9 A
Breaker Size: 15 A | | Certifications | CE | | Dimensions | Fog Machine: 22.2 x 13.4 x 15.0" / 563.9 x 340.4 x 381.0 mm
Controller Cable Length: 15' / 4.6 m | | Weight | 27.6 lb / 12.5 kg | | | | Package Weight | 24.5 lb | | Box Dimensions (LxWxH) | 26.0 x 15.0 x 13.0" |
