User Manual for CHAUVET DJ Hurricane Haze 4D - Haze Machine with Wired Remote Control Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Hurricane Haze 4D -
- Product category: Fog & Haze Machines CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ Fog & Haze Machines
 |
User manual for the CHAUVET DJ Hurricane Haze 4D - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

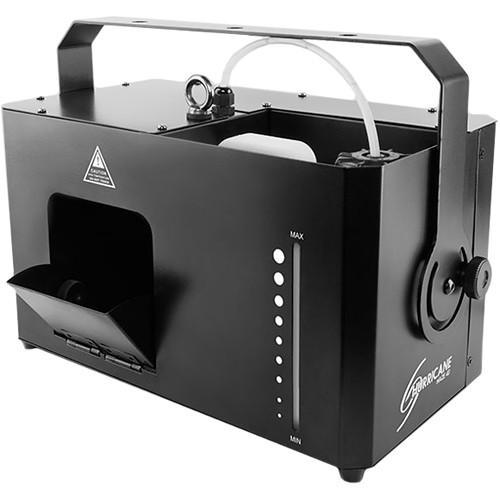

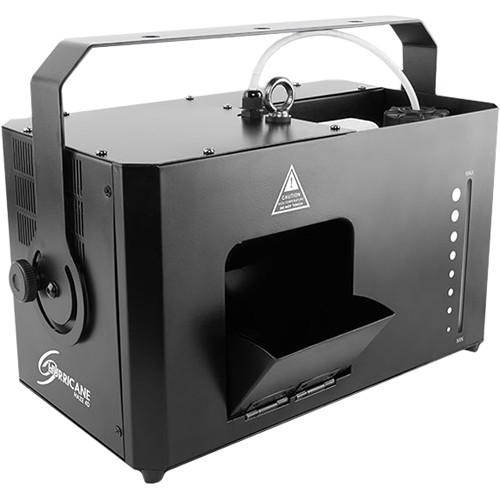

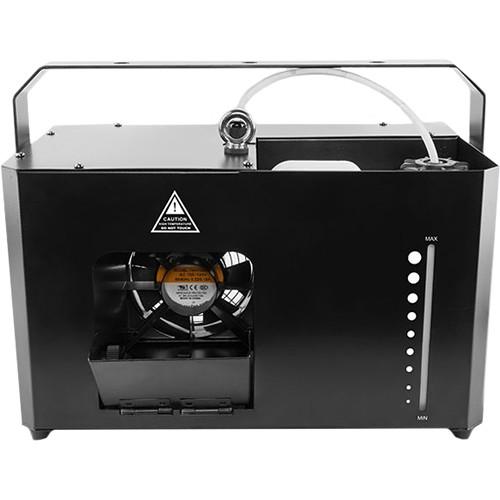

Product description The Hurricane Haze 4D by Chauvet is a water-based, high-output haze machine designed to create subtle atmospheres to enhance the visual effects of light beams on dance floors, in concerts, at Halloween events, and more.Capable of dispersing haze with a continuous output of 4300 ft³/minute, this unit fills large rooms quickly. The built-in adjustable scoop allows you to control the direction of the haze, while the low-noise fan makes this machine ideal for use in quiet environments.For standalone operation, two built-in knobs allow you to conveniently regulate the haze volume and fan speed. Precise control can be achieved using the wired timer remote (included) or via DMX. Other features include a 4-button LED display to access DMX settings, a fluid level indicator, and a hanging bracket with mounting hardware.With its compact design, the Hurricane Haze 4D is well suited for applications where space is limited. It uses High Performance Haze Fluid (HFG) and Premium Haze Fluid (PHF), which are non-toxic and leave no residue. - High, continuous output fills large rooms quickly
- Low-noise fan for application where extraneous sound is an issue
- Direct haze to any location using the built-in adjustable scoop
- Built-in haze output and fan-speed knobs offer smooth, standalone operation
- In-depth control using the included FC-T wired timer remote or via DMX

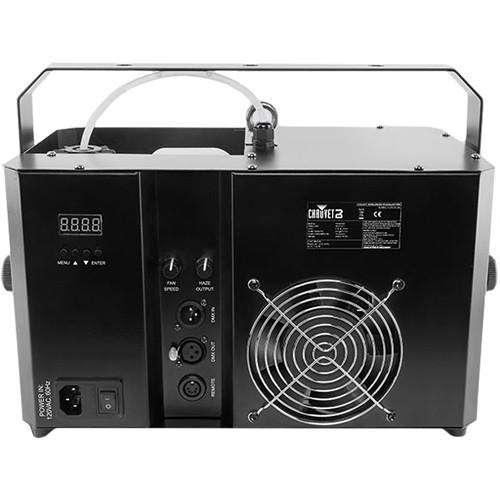

- 4-button LED display to access control-panel functions
- Works with Chauvet DJ High Performance Haze Fluid (HFG) and Premium Haze Fluid (PHF)
- Compact design with hanging bracket (included), ideal for use in applications where space is limited
UPC: 781462215590 In the Box CHAUVET DJ Hurricane Haze 4D - Haze Machine with Wired Remote Control FC-T Wired Timer Remote Power Cord Hanging Bracket with Mounting Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Hurricane Haze 4D - Haze Machine with Wired Remote Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Hurricane Haze 4D Specs | Haze Output | 4300 ft³/minute | | Tank Capacity | 0.9 gal / 3.75 L | | Heat-up Time | 2 minutes | | Fluid Consumption | 10 ml/min | | Compatible Fluid | High Performance Haze Fluid (HFG)
Premium Haze Fluid (PHF) | | DMX Connectors | Input: XLR 3-pin
Output: XLR 3-pin | | DMX Channel Modes | 1 x Mode: 2 channels | | Remote Control | FC-T wired timer remote (included) | | Display/Controls | LED display and four-button control panel | | Input Voltage | 120 VAC, 60 Hz, fixed | | Power Connectors | Input: IEC
Power Cord Plug: Edison (included) | | Power Consumption | 1120 W, 8.1 A | | Fuse | F 15 A, 250 V | | Temperature | Maximum External Temperature: 104° F / 40° C
Cooling System: Convection | | Mounting | Hanging bracket | | Approvals | CE, cULus | | Dimensions (L x W x H) | 11.0 x 15.5 x 9.6" / 277 x 396 x 245 mm | | Weight | 13.2 lb / 6.0 kg | | | | Package Weight | 18.5 lb | | Box Dimensions (LxWxH) | 18.5 x 13.2 x 3.6" |
