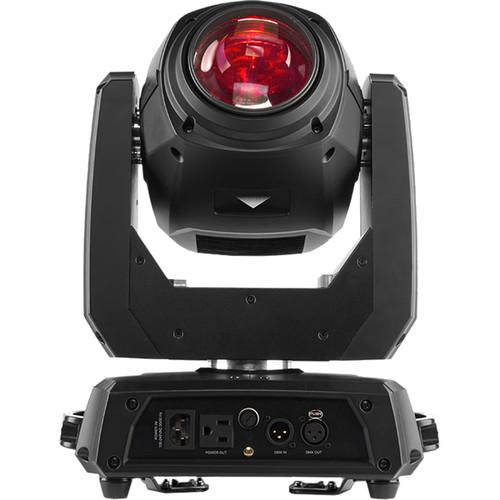

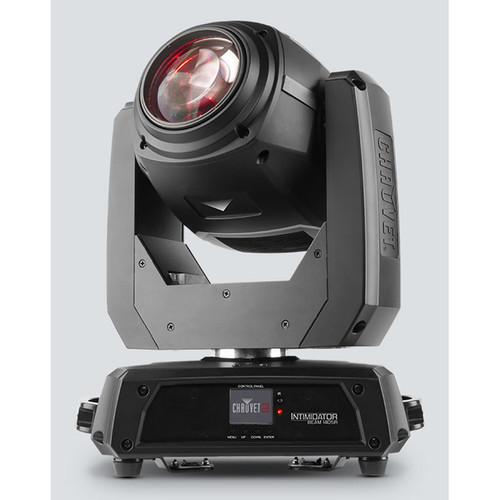

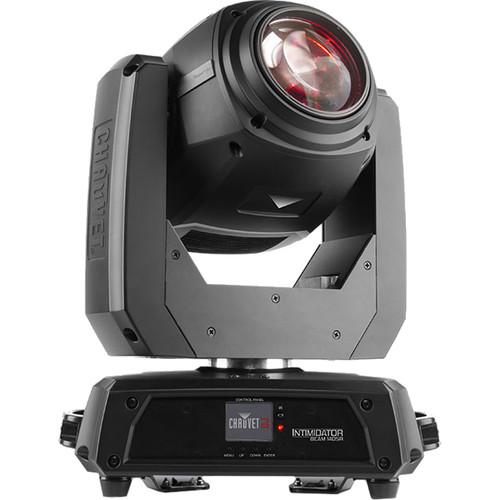

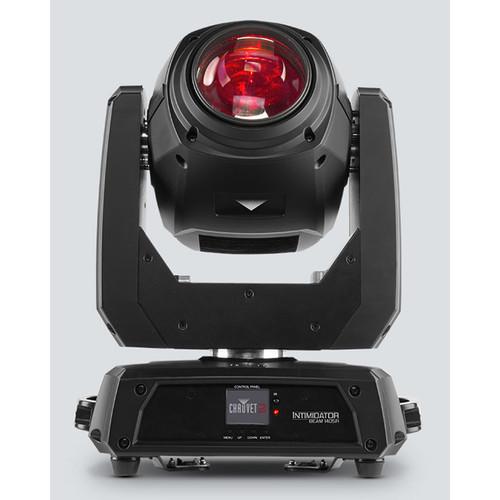

Product description The Intimidator Beam 140SR from Chauvet is a moving head beam fitted with a bright 140W discharge light engine. Its motorized frost filter converts the tight beam to a wide wash for different applications, and the 16-facet prism splits the beam and intensifies the display. The built-in totem mode keeps the light on and over the dance floor. On-board power linking saves time without running extension cords. The included 1/4-turn hanging bracket allows for single or dual clamp mounting options. - Fitted with an intense 140W discharge light engine
- 16-facet prism splits the beam
- Motorized frost filter converts the tight beam to a wide wash for different applications
- Built-in totem mode keeps the light on and over the dance floor
- Included hanging bracket allows for single or dual clamp mounting options
- Non-DMX control with the IRC-6 wireless remote control (sold separately)
- On-board power linking saves time running extension cords
- Fits in the CHS-50 VIP gear bag (sold separately)
UPC: 781462215798 In the Box CHAUVET DJ Intimidator Beam 140SR Moving Head Beam Power Cord Hanging Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Intimidator Beam 140SR Moving Head Beam in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Intimidator Beam 140SR Specs | Lamp | Osram Sirius HRI 140 W discharge lamp | | Lamp Life | 6,000 hours | | Strobe Rate | 0 to 20 Hz | | Beam Angle | Beam: 3°
Frost: 21° | | Illuminance | 16' (5 m): 381,500 lux
49' (15 m): 37,900 lux | | Photometric Data | Not Specified by Manufacturer | | Color | 14 + white, split colors, continuous scroll at variable speeds | | Gobos | 17 + open (all aluminum), fixed, continuous scroll at variable speeds | | Pan/Tilt | 540°/270° | | Range | Pan: 180°, 360°, 540°
Tilt: 90°, 180°, 270° tilt | | DMX Connectors | 3-pin XLR | | DMX Channels | 8 or 14 | | Power Linking | 3 units @ 120 V; 6 units @ 230 V | | Power Connection Type | Not Specified by Manufacturer | | Power | 228 W, 2 A @ 120 V, 60 Hz
224 W, 1.2 A @ 230 V, 50 Hz | | Power Consumption | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Rigging Points | Not Specified by Manufacturer | | Approvals | CE, MET | | Dimensions | 12.7 x 8.6 x 16.5" (32.3 x 22 x 42 cm) | | Weight | 25.8 lb (11.7 kg) | | | | Package Weight | 34.0 lb | | Box Dimensions (LxWxH) | 19.3 x 16.5 x 13.4" |
