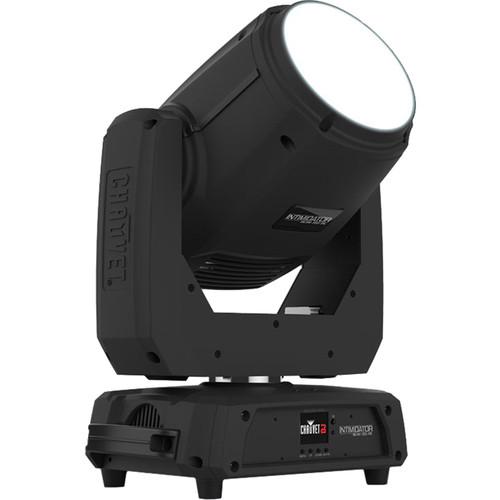

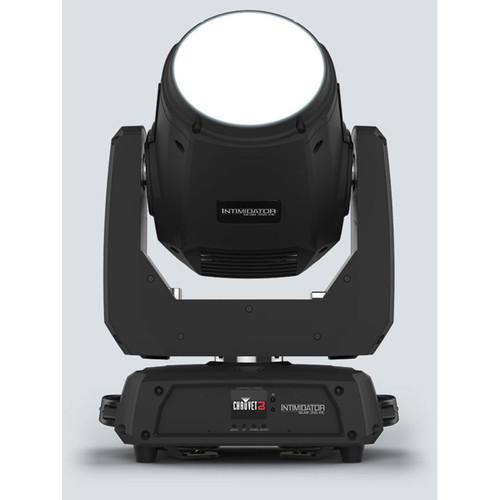

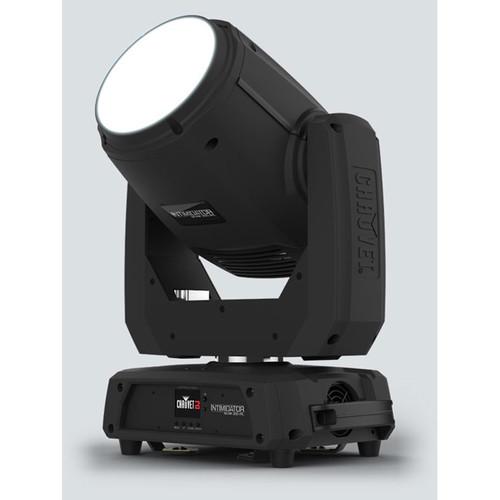

Product description The CHAUVET DJ Intimidator Beam 355 IRC is a bright, 100W LED moving head beam, well suited for bands or DJs performing at events, on stage, or in clubs. The fixture can generate complex looks using the fixed gobo wheel that includes an animation effect for creating additional dramatic looks. The fixture features a motorized frost filter that converts the beam to a wash. The unit is equipped with a three-facet rotating prism, which splits the beam for creative effects and to cover a large area. There are 5 gobos plus open, with continuous scroll at variable speeds, which can provide a one-of-a-kind look for your events.For standalone use and quick set up, the fixture offers built-in programs such as Automatic, Sound-Active Mode, and Strobe. For in-depth DMX control, the unit can be operated in either an 8- or 14-channel mode. The Master/Slave option lets you coordinate multiple fixtures without the need for a controller. Other features include a high-contrast LCD display with full text readout to help you navigate the control panel functions, a totem mode for keeping the light beams on the floor, onboard memory for storing scenes, and an auto-sensing power supply. You can also daisy-chain power for up to 5 fixtures (120V). The CHAUVET DJ Intimidator Beam 355 IRC is compatible with the optional IRC-6 wireless remote and ships with a hanging bracket and power cord. -
- Moving head beam fitted with a 100W LED
- Motorized frost filter converts the beam to a wash
- Easily generate complex looks using the fixed gobo wheel plus animation effect
- Split the beam and cover larger areas with the rotating 3-facet prism
- Full-color display with IRC-6 compatibility, totem mode, and onboard memory for storing a scene
- Quarter-turn hanging bracket allows for single or dual clamp mounting options
- powerCON-compatible power input/output connections for power linking
- Compatible with optional INTIMROADCASES35X flight case
UPC: 781462217174 In the Box CHAUVET DJ Intimidator Beam 355 IRC - LED Moving Head Light Hanging Bracket Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Intimidator Beam 355 IRC - LED Moving Head Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Intimidator Beam 355 IRC Specs | Light Source | 1 LED (white) 100 W, (27 A) | | Life Expectancy | 50,000 hours | | Illuminance | 262,800 lux at 6.6' / 2.0 m | | Beam Angle | 3° | | Zoom Adjustment | Manual | | Pan Range | 180°, 360°, 540° | | Tilt Range | 270°, 180°, 90° | | Gobos | 5 + open, animation effect, continuous scroll at variable speeds | | Colors | 8 + white, split colors, continuous scroll at variable speeds | | Strobe Rate | 0 to 20 Hz | | PWM Frequency | 1.8 kHz [flicker free] | | DMX Connectors | Input: XLR 3-pin

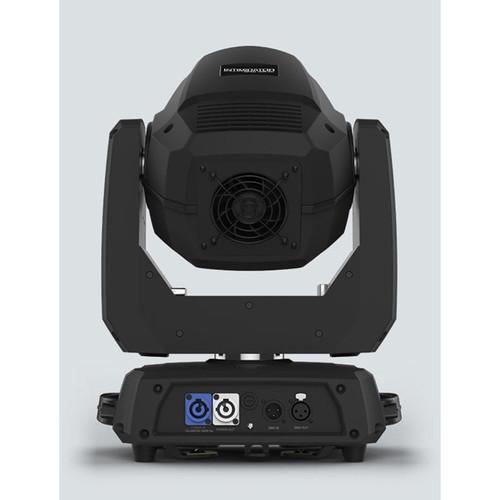

Output: XLR 3-pin | | DMX Channel Modes | 2 x Modes: 8 or 14 channels | | Wireless Remote | IRC-6 (available separately) | | Display/Controls | Full-color LCD display / four-button control panel | | Input Voltage | Switching (Internal): 100-240 VAC, 50/60 Hz, auto-ranging | | Power Connectors | Input: powerCON
Output: powerCON
Power Cord Plug: Edison to powerCON | | Power Linking | 120 V: 8 A, maximum 5 fixtures
230 V: 8 A, maximum 9 fixtures | | Power Consumption | 120 V: 163 W, 1.5 A
230 V: 157 W, 0.8 A | | Fuse | F 3 A, 250 V | | Approvals | CE, MET | | Mounting | Hanging bracket | | Maximum Temperature | 104°F/40°C | | Dimensions (L x W x H) | 12.7 x 8.7 x 18.9" / 322.0 x 220.0 x 480.0 mm | | Weight | 25.4 lb / 11.5 kg | | Cooling | Fan-assisted convection | | | | Package Weight | 34.3 lb | | Box Dimensions (LxWxH) | 19.6 x 16.8 x 15.8" |
