User Manual for CHAUVET DJ Intimidator Hybrid 140SR Moving Head Beam Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Intimidator Hybrid 140SR Moving
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ Intimidator Hybrid 140SR Moving contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

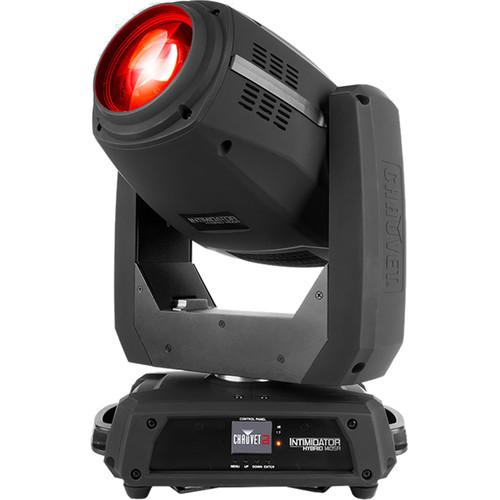

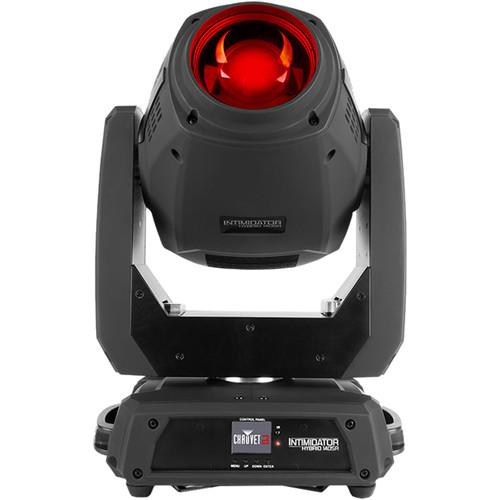

Product description The Intimidator Hybrid 140SR from Chauvet is an all-in-one moving head fixture that morphs from Spot to Beam to Wash. It is fitted with an intense 140W discharge light engine and motorized focus, it projects crisp beams and gobos at almost any distance. It features two overlapping independently controlled prisms that create beam effects. The dual gobo wheels allow for gobo morphing and mid-air projections. The motorized zoom works in beam, spot, and wash modes for light control. Controlling the fixture is easy with the full-color display, IRC-6 remote control (sold separately), totem mode, and onboard memory for storing a scene. - Hybrid moving head fitted with an intense 140W discharge light engine
- Morphs from Spot to Beam to Wash effortlessly
- Dual, overlapping prisms with independent control multiply the beam dynamics
- Dual gobo wheels allow for gobo morphing and mid-air projections
- Motorized zoom works in beam, spot, and wash modes for light control
- Included 1/4-turn hanging bracket allows for single or dual clamp mounting options
- Emit crisp projections at almost any distance using the motorized focus
- Glass optics ensure crisp beams and gobos at all times
- Flexible menu option accepts Osram 132W lamps if needed
- Full-color display with IRC-6 compatibility, totem mode, and onboard memory for storing a scene

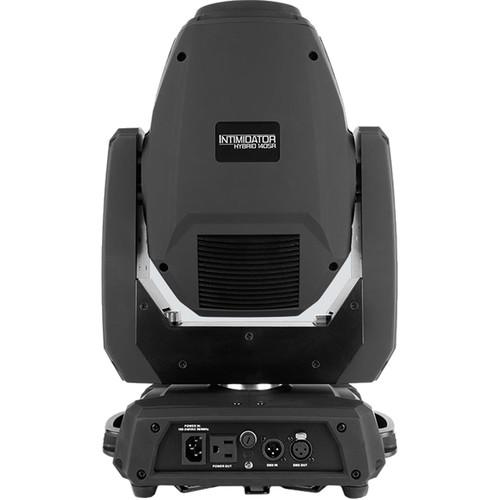

- On-board power linking saves time without running extension cords
- Fits best in the Intimidator Road Case 35x (sold separately)
UPC: 781462215903 In the Box CHAUVET DJ Intimidator Hybrid 140SR Moving Head Beam Power Cord Hanging Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Intimidator Hybrid 140SR Moving Head Beam in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Intimidator Hybrid 140SR Specs | Lamp | Osram Sirius HRI 140 W discharge lamp | | Lamp Life | 6,000 hours | | Strobe Rate | 0 to 20 Hz | | Beam Angle | Not Specified by Manufacturer | | Photometric Data | Not Specified by Manufacturer | | Illuminance | 3° Beam: 382,000 lux @ 16' (5 m)
7° Spot: 104,700 lux @ 16' (5 m)
14° Wash: 4,680 lux @ 16' (5 m) | | Color | 12 + white, split colors, continuous scroll at variable speeds | | Gobo Size | Rotating: 13.7 mm outside, 11 mm image, 1 mm max thickness | | Zoom Angle | Beam: 3° to 11°
Spot: 7° to 21°
Wash: 14° to 28° | | Gobo Wheel | 9 + open, rotating, interchangeable, slot-n-lock, continuous scroll at variable speeds
17 + open, metal, continuous scroll at variable speeds | | Pan/Tilt | 540°/270° | | Range | Pan: 180°, 360°, 540°
Tilt: 90°, 180°, 270° | | DMX Connectors | 3-pin XLR | | DMX Channels | 13 or 19 | | Power Linking | 3 units at 120 V
6 units at 230 V | | Power Connection Type | Not Specified by Manufacturer | | Power | 260 W, 2.5 A at 120 V, 60 Hz
254 W, 1.3 A at 230 V, 50 Hz | | Power Consumption | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Rigging Points | Not Specified by Manufacturer | | Approvals | CE, MET | | Dimensions | 12.6 x 8.6 x 20.2" (32 x 22 x 51.3 cm) | | Weight | 33.4 lb (15.1 kg) | | | | Package Weight | 45.0 lb | | Box Dimensions (LxWxH) | 20.4 x 17.3 x 16.6" |
