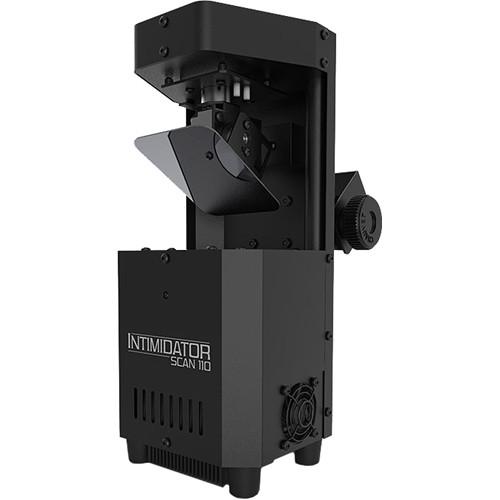

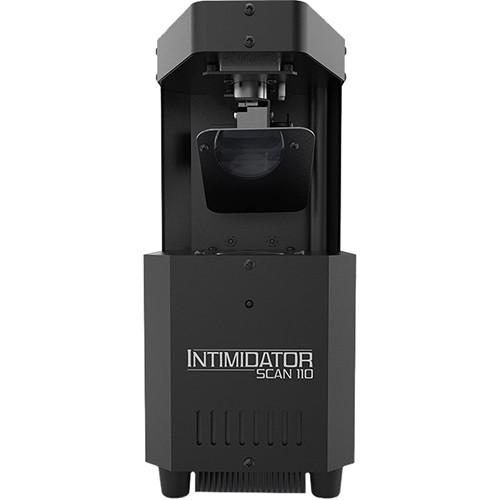

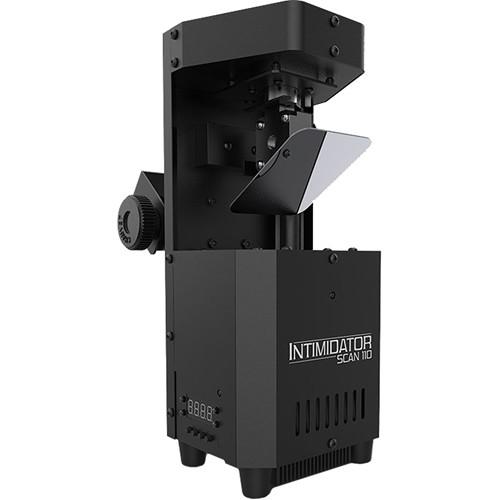

Product description Compact and lightweight (at 4.6 lb), the CHAUVET DJ Intimidator Scan 110 is a scanner lighting effect ideal for mobile entertainers looking to liven up their light show when performing in small nightclubs, bars, lounges, and more. It features a 10W cool-white LED and a motor that provides tilt and pan mirror movement for shooting a choice of eight different colored gobo images or a white spot around a room, with a crisp 13° beam angle and fast and precise movements.Easy to set up and program, the Intimidator Scan 110 can operate as a standalone unit in sound-active or auto modes with built-in movement macros, strobe, 0 to 100% dimming, and move-in-black features. For more control the unit is equipped with two DMX channel modes. The master/slave option lets you coordinate multiple fixtures without the need for a controller.Other features include an auto-sensing universal power supply and mounting bracket. To save time running cables and extension cords, you can also daisy-chain power for up to 17 fixtures at 120V. For wireless control, the Intimidator Scan 110 is compatible with the IRC-6 wireless remote (available separately). - Key Features
-
- Scanner effect with 10W cool-white LED
- Shoots colored gobo image with fast and precise movements
- Eight colored gobos + open (white spot)
- Compact and lightweight design
- Beam angle: 13°
- Pan/tilt: 180°/45°
- Operates in standalone, master/slave, or DMX modes
- Programs: Auto, sound-active, movement macros
- Dimming: 0 to 100%
- Strobe rate: 0 to 18 Hz, with random mode
- Move-in-black function
- Two DMX channels: 5 or 11
- Compatible with IRC-6 wireless remote (available separately)
- Daisy-chain power for up to 17 units at 120V
- Multi-voltage operation: 100 to 240V, 50/60 Hz, auto-ranging
- Includes hanging bracket
UPC: 781462218430 In the Box CHAUVET DJ Intimidator Scan 110 LED Scanner Power Cord Hanging Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Intimidator Scan 110 LED Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Intimidator Scan 110 Specs | Light Source | 1 x 10 W (2 A) cool-white LED
50,000-hour life expectancy | | Illuminance | 1100 lux at 6.5' / 2 m | | Pan/Tilt | 180° / 45° | | Beam Angle | 13° | | Operating Modes | DMX
Standalone with IRC-6 IR remote control (available separately)
Master/slave | | Programs and Effects | Auto
Sound-active
Gobo wheel
Strobe: 0 to 18 Hz rate, random
Dimming: 0 to 100%
Movement macros

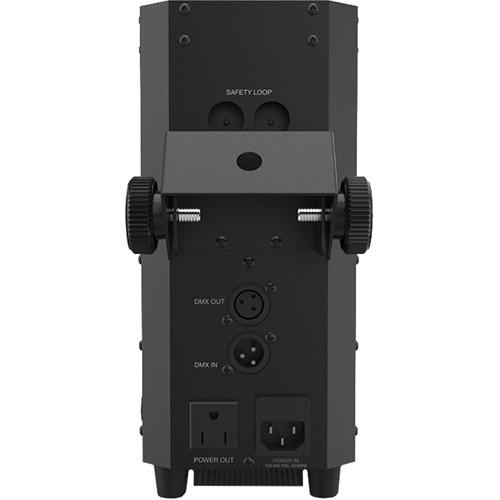

Move-in-black | | Gobos | 8 colored patterns + open (white spot) | | DMX Channels | 5 or 11 | | Connections | 1 x 3-pin XLR DMX input
1 x 3-pin XLR DMX output
1 x IEC power input | | Power | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Consumption | 30 W, 0.5 A at 120 V, 60 Hz
30 W, 0.3 A at 230 V, 50 Hz | | Power Linking | 17 x Fixtures at 120 VAC
31 x Fixtures at 230 VAC | | Mount | Hanging bracket | | Approvals | CE | | Dimensions | 7.5 x 4.7 x 10.6" / 190.5 x 119.3 x 269.0 mm | | Weight | 4.6 lb / 2.1 kg |
