User Manual for CHAUVET DJ Intimidator Scan 305 IRC Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Intimidator Scan 305 IRC
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ Intimidator Scan 305 IRC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

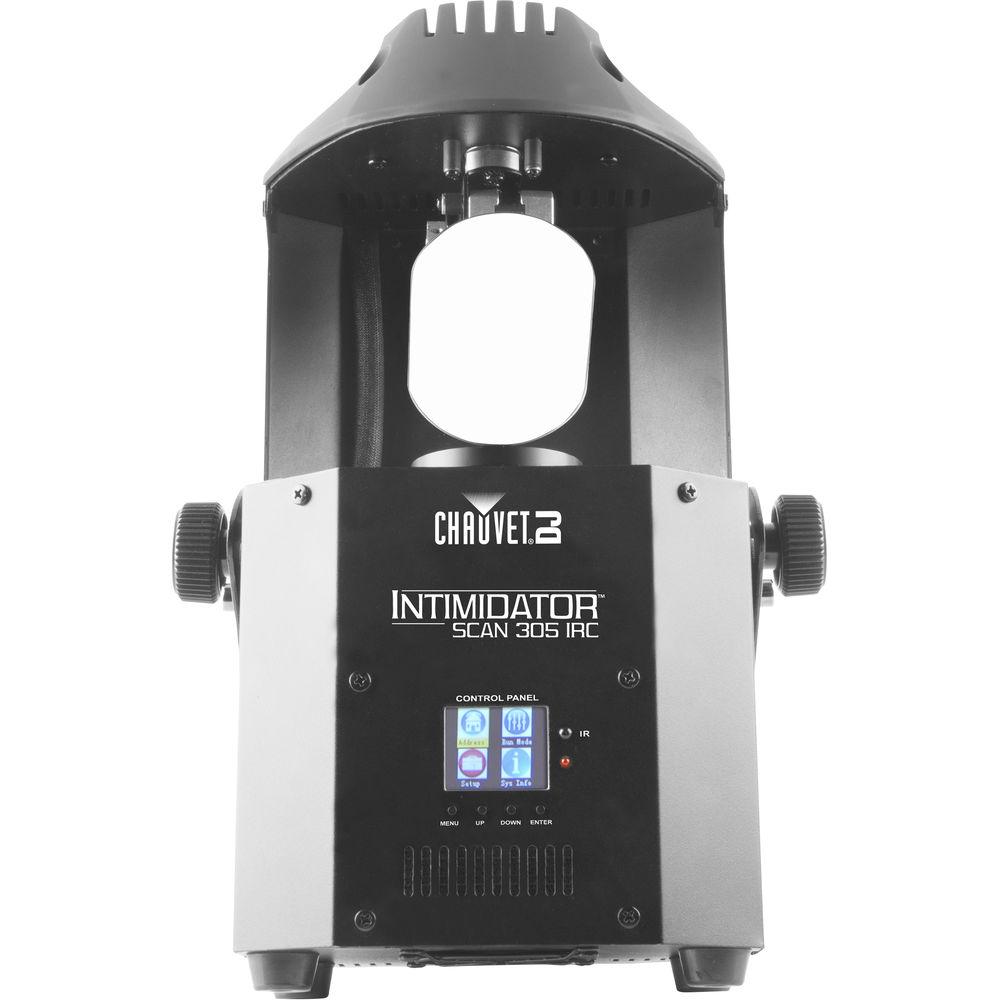

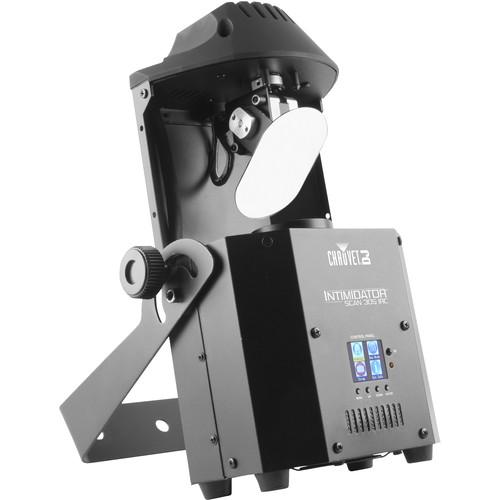

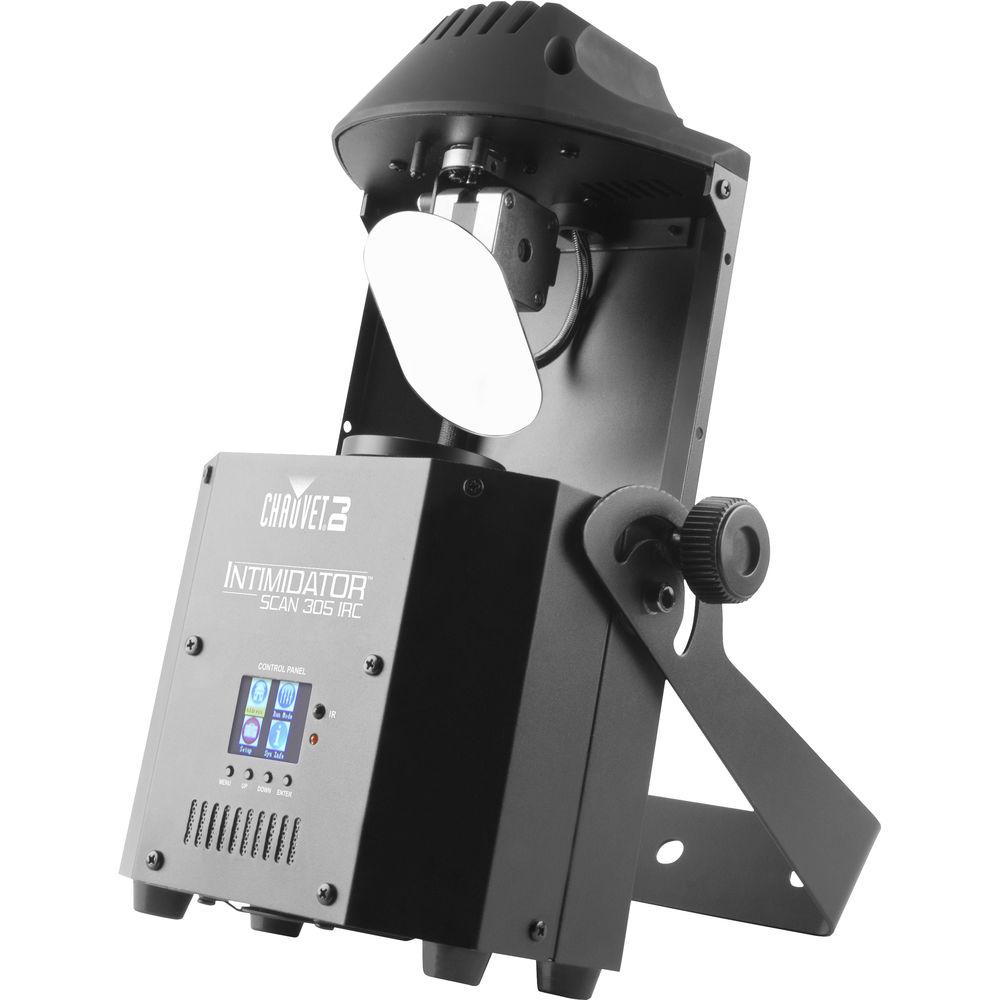

Product description The CHAUVET Intimidator Scan 305 IRC is a compact LED scanner with a 60W light source that shines through most environments. The light's crisp, 3-facet prism allows you to cover larger areas when you split the beam, and non-DMX operation is convenient and easy with the optional IRC-6 remote control.
Up to four fixtures may be linked together to create eye-catching synchronized shows in automated, sound-active, or master/slave modes. You can minimize programming time by using the built in movement macros and move-in-black features. Flicker-free video operation is possible with high-frequency LED dimming. Time can be saved by power-linking up to five units together. UPC: 781462213770 In the Box CHAUVET DJ Intimidator Scan 305 IRC Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Intimidator Scan 305 IRC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Intimidator Scan 305 IRC Specs | DMX Channels | 7 or 11 | | DMX Connectors | 3-pin XLR | | Pan & Tilt | 180°/90° | | Colors | 8 + white, split colors, continuous scroll at variable speeds | | Gobos | 7 + open (5 metal + 2 glass), rotating, interchangeable, slot-n-lock, continuous scroll at variable speeds | | Gobo Size | 0.94" (23.9 mm) outside, 0.81" (20.5 mm) image, 0.04" (1 mm) max thickness | | Light Source | 1 x (white) 60 W, 2.3 A | | Life Expectancy | 50,000 hours | | Strobe Rate | 0 to 35 Hz | | PWM Frequency | 1,200 Hz | | Beam Angle | 15° | | Illuminance | 9,110 lux at 6.6' (2.0 m) | | Power Linking | 5 units at 120 V; 10 units at 230 V | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power and Current | 104 W, 1.5 A at 120 V, 60 Hz
102 W, 0.8 A at 230 V, 50 Hz | | Approvals | CE | | Dimensions | 16.9 x 10.0 x 5.7" (430 x 255 x 147 mm) | | Weight | 10.0 lb (4.6 kg) | | | | Package Weight | 13.4 lb | | Box Dimensions (LxWxH) | 19.2 x 11.7 x 8.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
