User Manual for CHAUVET DJ Intimidator Spot 110 LED Moving-Head Light Fixture Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Intimidator Spot 110 LED
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ Intimidator Spot 110 LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

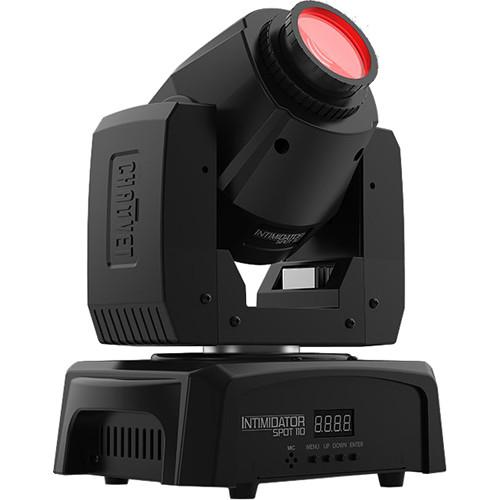

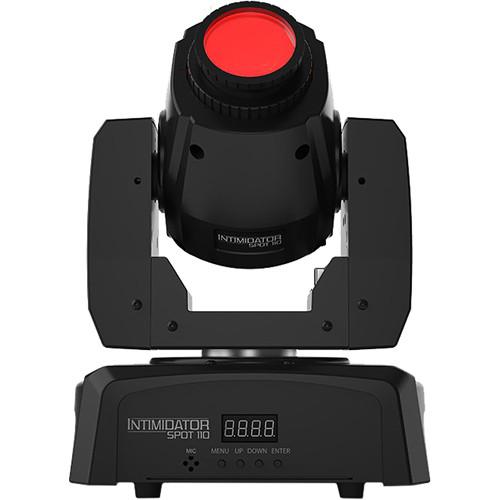

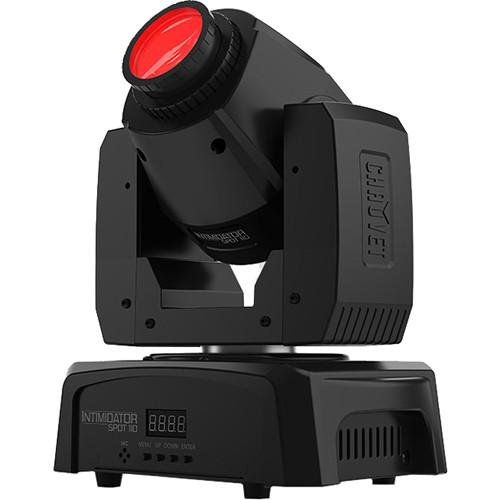

Product description The CHAUVET DJ Intimidator Spot 110 is a compact and lightweight (at 5 lb) moving-head LED light fixture ideal for mobile entertainers looking to quickly create eye-catching light shows when performing in small clubs, bars, event spaces, and more. The fixture uses a 10W cool-white LED with a 13° beam angle, a motor with tilt and pan head movements, and sound-active and automated programs to project colored beams and gobo patterns with fast and precise movements, providing shows right out of the box.The Intimidator Spot 110 features a color wheel with seven colors + white and a gobo wheel with seven gobos + open, both offering continuous scroll at variable speeds. Easy to set up and program, the fixture can operate as a standalone unit in sound-active or auto modes, with built-in movement macros, strobe, 0 to 100% dimming, and move-in-black features. For more control the unit is equipped with two DMX channel modes. The master/slave option lets you coordinate multiple fixtures without the need for a controller.Other features include an LED display with a 4-button menu for easy navigation, an auto-sensing universal power supply, and a mounting bracket. - Key Features
-
- Lightweight (at 5 lb) and compact LED moving-head fixture designed for mobile applications
- Single 10W cool-white LED
- Project beams and crisp gobos
- Beam angle: 13°
- Pan/tilt: 540°/270°
- Seven colors + white, continuous scroll at variable speeds
- Seven gobos + open, continuous scroll at variable speeds
- Sound-active and automated programs
- Built-in movement macros
- Electronic dimming: 0 to 100%
- Variable strobe
- Move-in-black function
- Operates in standalone, master/slave, or DMX modes
- DMX channel modes: 8 or 14 channels
- LED display with 4-button menu for easy navigation
- Multi-voltage operation: 100 to 240 VAC
- Includes hanging bracket
UPC: 781462218423 In the Box CHAUVET DJ Intimidator Spot 110 LED Moving-Head Light Fixture Power Cord Hanging Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Intimidator Spot 110 LED Moving-Head Light Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Intimidator Spot 110 Specs | Light Source | 1 x 10 W cool-white LED (2.1 A) | | LED Life Expectancy | 50,000 hours | | Beam Angle | 13° | | Illuminance | 1561 lux at 6.6' / 2 m | | Pan/Tilt | 540°/270° | | Pan & Tilt Range | Pan: 180°, 360°, 540°
Tilt: 90°, 180°, 270° | | Color Wheel | 7 x Colors + white, continuous scroll at variable speeds | | Gobo Wheel | 7 x Gobos + open, continuous scroll at variable speeds | | Operating Modes | DMX
Standalone
Master/slave | | Programs and Effects | Auto
Sound-active
Dimming: 0 to 100%
Variable Strobe: 0 to 23 Hz
Movement macros
Move-in-black | | Control | DMX: 6 or 12 channels

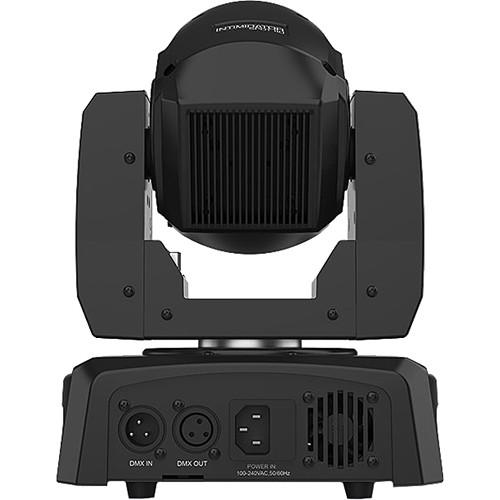

Display: LCD display with 4-button control panel | | DMX Connectors | Input: 1 x XLR 3-pin
Output: 1 x XLR 3-pin | | Input Voltage Range | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power and Current | 120 VAC (60 Hz): 41 W, 0.6 A
230 VAC (50 Hz): 38 W, 0.4 A | | Approvals | CE | | Dimensions (L x W x H) | 7.5 x 5 x 11" / 19.0 x 12.7 x 27.9 cm | | Weight | 5.0 lb / 2.3 kg | | | | Package Weight | 7.9 lb | | Box Dimensions (LxWxH) | 17.0 x 12.0 x 11.0" |
