User Manual for CHAUVET DJ Intimidator Spot 155 LED Moving Head Light Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Intimidator Spot 155 LED
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ Intimidator Spot 155 LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

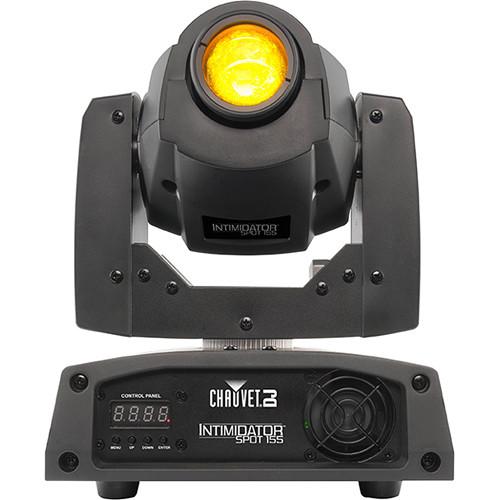

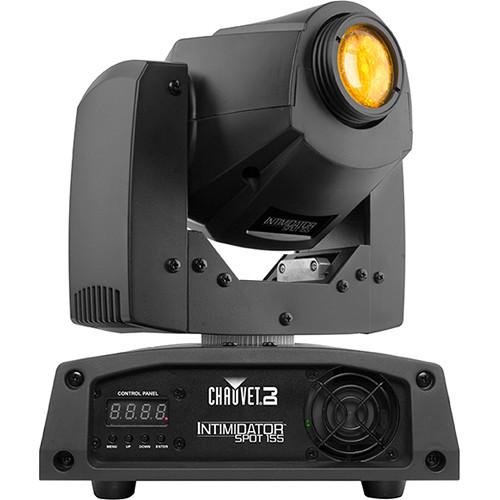

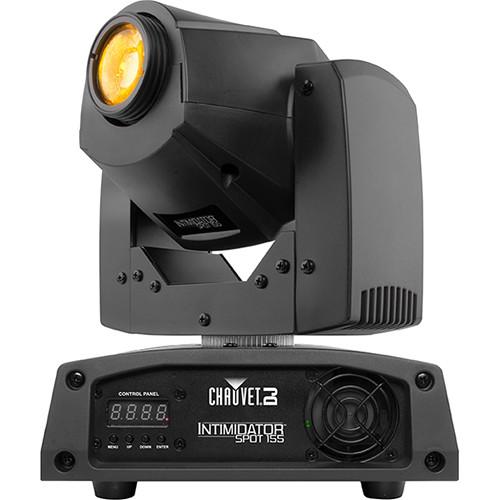

Product description The CHAUVET DJ Intimidator Spot 155 is a moving LED head light with crisp optics and even output, designed to energize dance floors in clubs, bars, event spaces, and more. Featuring adjustable strobe speed, movement macros, move-in-black functionality, fast and precise head movements, and separate, rotating gobos and color wheels, this versatile fixture allows for flexible effect design and precise show control. The color wheel has nine colors plus white and split colors, and the gobo wheel has nine different designs plus an open position. The fixture uses a 32W cool-white LED, has a 17° beam angle, 570° maximum pan range, 270° maximum tilt range, and is capable of individual pan, tilt, color, and gobo reset. Compact and lightweight (at 9.8 lb), it is ideal for mobile applications.The Intimidator Spot 155 allows for both standalone and DMX operation, with sound-active and automatic modes available in standalone. Use the master/slave configuration to coordinate multiple fixtures without the need for a controller. Two channel modes (6 or 11 channels) are available for DMX operation, enabling various levels of precise control.
In addition to DMX daisy-chaining, the Intimidator Spot 155 supports power linking via its pass-through IEC input to Edison output, minimizing time spent on cable runs and finding power outlets. Plug a single power cable into the wall outlet and daisy-chain up to 8 fixtures in a 120V environment, or up to 16 fixtures in a 230V environment. The fixture's LED engine is rated at an average lifespan of 50,000 hours. The Intimidator Spot ships with an IEC power cord and a hanging bracket with mounting hardware. - Effects and Features
-
- Bright, compact, and lightweight LED moving head, perfect for mobile applications
- 1 x 32W cool-white LED
- Crisp optics and even output
- Beam angle: 17°
- Pan/tilt: 540°/270°
- Independent color and gobo wheels
- 9 x colors + white and split colors
- 9 x gobos + open
- Built-in movement macros and move-in-black features
- Electronic dimming: 0-100%
- Variable strobe
- Individual pan, tilt, color, and gobo reset
- LED display with 4-button menu for easy navigation
- Multi-voltage operation: 100-240 VAC
- Includes hanging bracket with mounting hardware
- Control
-
- Two DMX channel modes: 6 or 11 channels
- Sound-active and automated programs provide shows right out of the box
- Use Master/Slave configuration with other Intimidator Spot 155 fixtures for a coordinated show
- Linking
-
- DMX-link the Intimidator Spot 155 to other fixtures via the XLR 3-pin DMX output
- Power-link up to 8 fixtures at 120V, or up to 16 fixtures at 230V
UPC: 781462214517 In the Box CHAUVET DJ Intimidator Spot 155 LED Moving Head Light Power Cord Hanging Bracket with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Intimidator Spot 155 LED Moving Head Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Intimidator Spot 155 Specs | Light Source | 1 x cool-white LED (32 W, 2.3 A) | | LED Life Expectancy | 50,000 hours | | Beam Angle | 17° | | Illuminance | 4860 lux at 6.6' (2 m) | | PWM Frequency | 46,900 Hz | | Pan & Tilt | 540°/270° | | Pan & Tilt Range | Pan: 180°, 360°, 540°
Tilt: 90°, 180°, 270° | | Color Wheel | 9 x colors + white (yellow, magenta, green, red, cyan, orange, blue, light green, amber)
Split Colors: White + yellow, yellow + magenta, magenta + green, green + red, red + cyan, cyan + orange, orange + blue, blue + light green, light green + amber, amber + white
Continuous scroll at variable speeds; color-cycling rainbow and reverse rainbow with increasing speed | | Gobo Wheel | 9 x aluminum gobos + open
Continuous scroll at variable speeds
| | Operating Modes | DMX, standalone, master/slave, automatic, sound-active | | Dimming | 0-100%, electronic | | Effects | Variable strobe (0 to 23 Hz)
Move-in-black

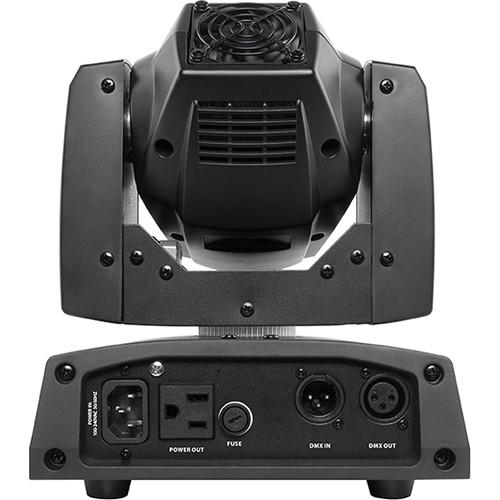

Movement macros | | DMX Connectors | Input: 1 x XLR 3-pin
Output: 1 x XLR 3-pin | | DMX Channel Modes | 6 or 11 channels | | Display/Controls | 4-character LED display with 4-button control panel | | Power Linking | 120 VAC: 8 x units, 8 A
230 VAC: 16 x units, 8 A | | Input Voltage Range | 100-240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: 1 x IEC
Output: 1 x Edison | | Power and Current | 120 VAC (60 Hz): 62 W, 0.9 A
230 VAC (50 Hz): 62 W, 0.5 A | | Fuse | 2 A, 250 VAC | | Cooling System | Fan-assisted convection | | Maximum Operating Temperature | External: 104°F (40°C) | | Safety | Safety loop | | Approvals | CE, MET | | Dimensions | 8.1 x 8.3 x 11.5" (20.5 x 21.1 x 29.1 cm) | | Weight | 9.8 lb (4.4 kg) | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 13.1 x 11.7 x 11.4" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to CHAUVET DJ Intimidator Spot 155 LED Moving Head Light
| Subject: Lightthe moment online light works however it is it does not light up how do I tell if the LED light is burned out | | Date: 14.03.2021 09:07:34 | Name: James | | How do I tell if an LED light is burned out | | Post reply |
| Subject: Light | | Date: 14.03.2021 09:05:02 | Name: James | The movement online light works however there is no light how do I tell if the LED is burned out
| | Post reply |
