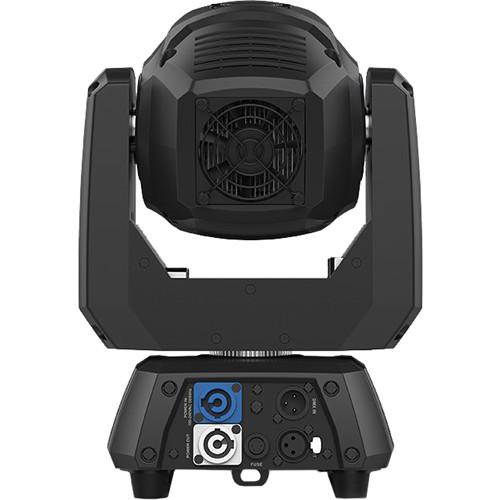

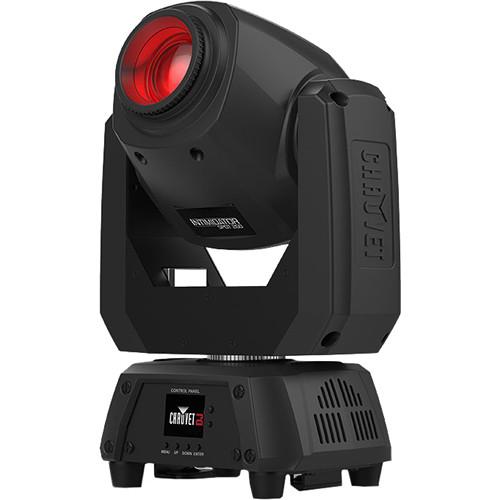

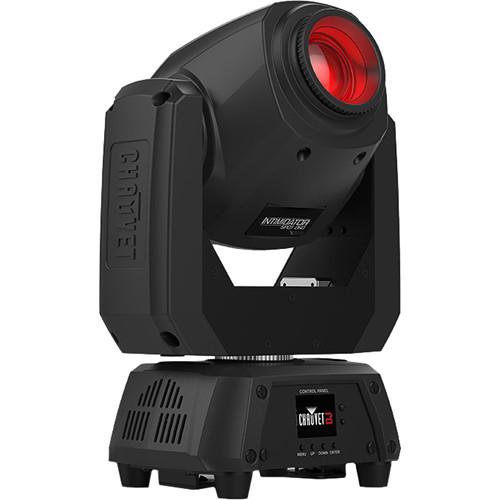

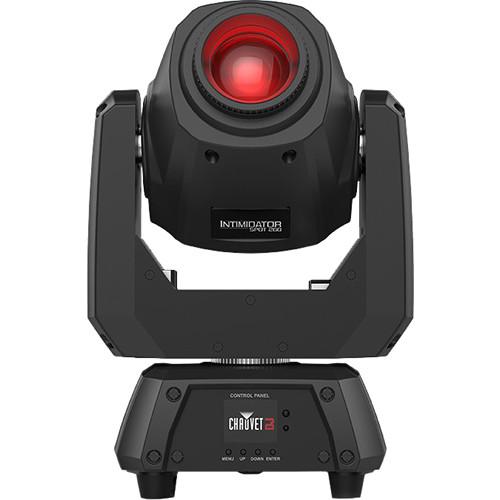

User Manual for CHAUVET DJ Intimidator Spot 260 LED Moving Head Light Fixture Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Intimidator Spot 260 LED
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ Intimidator Spot 260 LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|
Product description - Intimidator Spot 260 by CHAUVET DJ
The CHAUVET DJ Intimidator Spot 260 is a moving-head LED light fixture with a bright output, designed to energize dance floors in clubs, bars, event spaces, and more. Featuring adjustable strobe speed, movement macros, fast and precise head movements, a color wheel, and a motorized focus that lets you project crisp gobos from nearly any distance, this versatile fixture allows for flexible effect design and precise show control. The color wheel has eight colors plus white and split colors, while the gobo wheel has seven different patterns plus an open position. The fixture uses a 75W white LED, has a variable 12 to 17° beam angle with manual zoom to throw light farther, 570° maximum pan range, 270° maximum tilt range, and is ideal for mobile applications.The Intimidator Spot 260 is equipped with a 3-facet prism that splits the beam to covers a larger area, and a built-in Totem mode which restricts pan and tilt movements to always keep the beams on the dance floor. The unit allows for both standalone and DMX operation, with sound-active and automatic modes available in standalone mode. Use the master/slave configuration to coordinate multiple fixtures without the need for a controller. Two channel modes (8 or 14 channels) are available for DMX operation, enabling various levels of precise control.In addition to DMX daisy-chaining, the Intimidator Spot 260 supports power linking via its pass-through powerCON I/O, minimizing time spent on cable runs and finding power outlets. Plug a single power cable into the wall outlet and daisy-chain up to five fixtures in a 120V environment, or up to ten in a 230V environment. The fixture's LED engine is rated at an average lifespan of 50,000 hours. The fixture ships with a hanging bracket and mounting hardware. - Effects and Features
-
- Bright LED moving head designed for mobile applications
- Single 75W white LED
- Project crisp gobos from nearly any distance with the motorized focus
- Beam angle: 12 to 17°—with manual zoom
- Pan/tilt: 540°/270°
- 3-facet prism splits the beam to cover a larger area
- Built-in Totem mode restricts pan and tilt to keep the beams on the dance floor
- 8 colors + white—split colors, continuous scroll at variable speeds
- 7 gobos + open (6 metal + 1 glass)—rotating, interchangeable, slot-n-lock, continuous scroll at variable speeds
- Built-in movement macros
- Electronic dimming: 0-100%
- Variable strobe
- Set, save, and recall one scene manually, directly from the full-color LCD display
- Multi-voltage operation: 100-240 VAC
- Includes 1/4-turn hanging bracket for quick removal when needed
- Control
-
- Two DMX channel modes: 8 or 14 channels
- Sound-active and automated programs provide shows right out of the box
- Use master/slave configuration with four fixtures to create eye-catching, synchronized shows in automated or sound modes
- LED display with 4-button menu for easy navigation
- Linking
-
- DMX-link the unit to other fixtures via the XLR 3-pin DMX I/O
- Power-link up to 5 fixtures at 120V, or up to 10 fixtures at 230V
UPC: 781462218157 In the Box CHAUVET DJ Intimidator Spot 260 LED Moving Head Light Fixture Power Cord Hanging Bracket with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Intimidator Spot 260 LED Moving Head Light Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Intimidator Spot 260 Specs | Light Source | 1 x White LED (75 W, 3.3 A) | | LED Life Expectancy | 50,000 Hours | | Beam Angle | 12 to 17° | | Prism | 3-Facet Round, Static | | Illuminance | 12,030 lux at 6.6' / 2 m (12°)
2530 lux at 6.6' / 2 m (17°) | | Pan/Tilt | 540°/270° | | Pan & Tilt Range | Pan: 180°, 360°, 540°
Tilt: 90°, 180°, 270° | | Color Wheel | 8 x Colors + White (Orange, Lime Green, Cyan, Red, Green, Magenta, Yellow, Dark Blue)
Split Colors
Continuous Scroll at Variable Speeds | | Gobo Wheel | 7 x Gobos + Open (6 x Metal, 1 x Glass)
Rotating
Interchangeable
Slot-n-Lock
Continuous Scroll at Variable Speeds | | Gobo Size | Outside: 0.94" / 24 mm
Image: 0.78" / 20 mm
Maximum Thickness: 0.04" / 1.1 mm | | Operating Modes | DMX, Standalone, Master/Slave, Automatic, Sound-Active | | Dimming | 0-100%, Electronic | | Effects | Variable Strobe (0 to 20.6 Hz)
Totem Mode
Motorized Focus
Movement Macros | | DMX Connectors | Input: 1 x XLR 3-Pin
Output: 1 x XLR 3-Pin | | Control | DMX: 8 or 14 Channels
Display: Full-Color LCD Display with 4-Button Control Panel
IRC-6 Wireless Remote (Sold Separately) | | Power Linking | 120 VAC: 5 x Units, 11.2 A
230 VAC: 10 x Units, 11.2 A | | Input Voltage Range | 100-240 VAC, 50/60 Hz (Auto-Ranging) | | Power Connectors | Input: 1 x powerCON-Compatible
Output: 1 x powerCON-Compatible
Power Cord: Edison | | Power and Current | 120 VAC (60 Hz): 107 W, 1.5 A
230 VAC (50 Hz): 103 W, 0.8 A | | Fuse | F 3 A, 250 VAC | | Cooling System | Fan-Assisted Convection | | Maximum Operating Temperature | External: 104°F / 40°C | | Safety | Safety Loop | | Approvals | CE | | Dimensions (L x W x H) | 9.1 x 6.4 x 13.8" / 23.2 x 16.3 x 35.1 cm | | Weight | 12.2 lb / 5.6 kg | | | | Package Weight | 15.425 lb | | Box Dimensions (LxWxH) | 15.5 x 12.3 x 10.9" |
