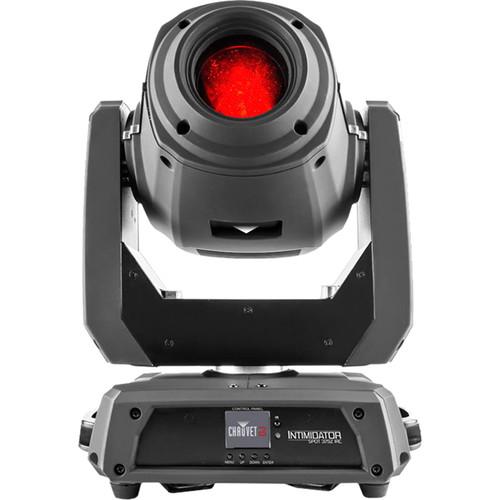

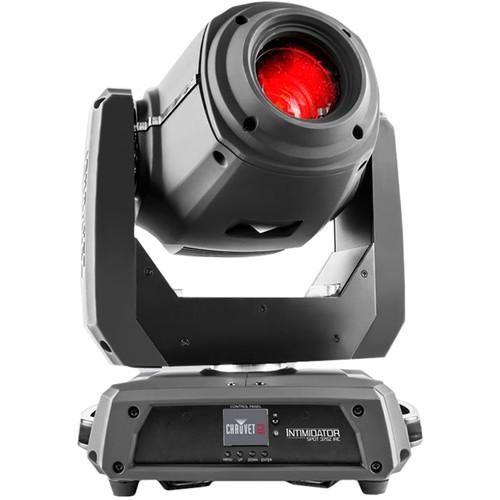

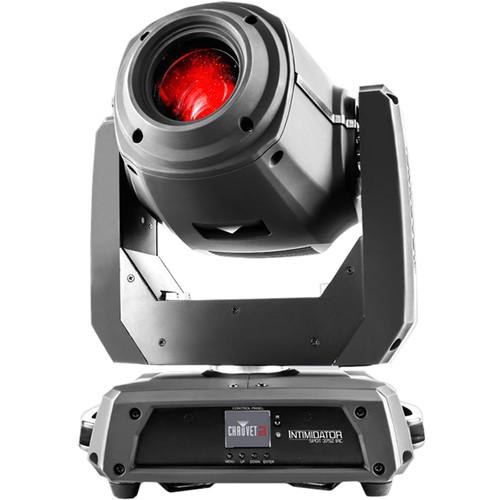

User Manual for CHAUVET DJ Intimidator Spot 375Z IRC - LED Moving Head Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Intimidator Spot 375Z IRC
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ Intimidator Spot 375Z IRC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|
Product description The Intimidator Spot 375Z IRC LED Light from Chauvet is a high-output, feature-rich moving head spot fitted with a 150W LED and designed for large-scale events. The fixture utilizes a motorized zoom for short-throw and long-throw applications. The color wheel offers white plus seven colors with dynamic color scrolling capabilities. The instrument also features six aluminum gobos and a single glass gobo that rotate, shake, index, and scroll at variable speeds. The dual rotating prims split the beam for greater effect and wider coverage, while the Totem mode ensures the beams always remain on the dance floor.
The 375Z includes built-in automated programs, sound-activated programs, a Master/Slave mode, or can be controlled via DMX with 9 or 15 channel modes. Up to 3 units can be power linked using a single 120V circuit. Gobos can be swapped out for customized projections. The Intimidator Spot 375Z ships with a power cord and a hanging bracket with mounting hardware. - Benefits and Attributes
-
- Bright, 150W LED moving head spot designed for large events
- Motorized zoom for short-throw or long-throw applications
- Unique ¼-turn hanging bracket allows for single- or dual-clamp mounting options
- Dual rotating prisms splits the beam for great effects and to cover a larger area
- Beams always remain on the dance floor using the built-in, innovative Totem mode
- Emit crisp projections at almost any distance using the motorized focus
- Activate built-in, automated and sound-activated programs, or control in DMX or Master/Slave mode

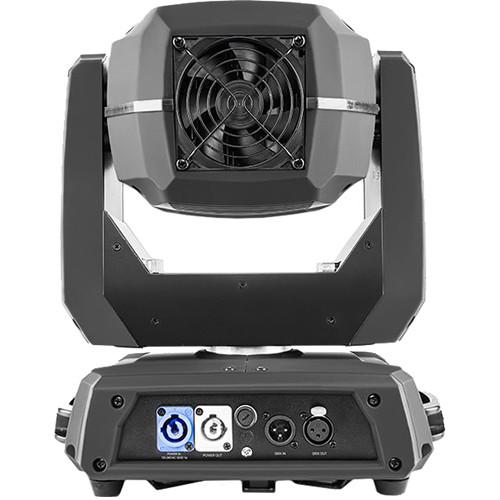

- powerCON-compatible power input/output connections for power linking
- Works with the optional IRC-6 for wireless control and triggering
- Fits in the INTIMROADCASES35X flight case
In the Box CHAUVET DJ Intimidator Spot 375Z IRC - LED Moving Head Power Cord Hanging Bracket with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Intimidator Spot 375Z IRC - LED Moving Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Intimidator Spot 375Z IRC Specs | DMX | DMX Channels: 9 or 15
DMX Connectors: 3-pin XLR | | Pan & Tilt | Pan and Tilt: 540°/270°
Pan Range: 540°, 360°, 180°
Tilt Range: 270°, 180°, 90° | | Colors | 7 + white, split colors, continuous scroll at variable speeds | | Gobos | 7 + open (6 aluminum + 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds | | Light Source | 1 LED (white) 150 W, (12.3 A), 50,000 hours life expectancy | | Strobe Rate | 0 to 20 Hz | | PWM Frequency | 1.8 kHz | | Illuminance | 10°: 38,000 lux @ 2 m
23°: 19,850 lux @ 2 m | | Gobo Size | Outside: 0.94" / 24 mm
Image: 0.79" / 20 mm
Max Thickness: 0.04" / 1 mm | | Zoom Angle | 10° to 23° | | Approvals | CE, MET | | Power Linking | 3 units @ 120 V; 5 units @ 230 V | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power and Current | 277 W, 2.5 A @ 120 V, 60 Hz
268 W, 1.3 A @ 230 V, 50 Hz | | Dimension | 8.6 x 12.7 x 18.3" / 218.4 x 322.6 x 464.8 mm | | Weight | 27.2 lb / 12.3 kg |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 25 owners. Add your rating and experience with the product.
