Product description

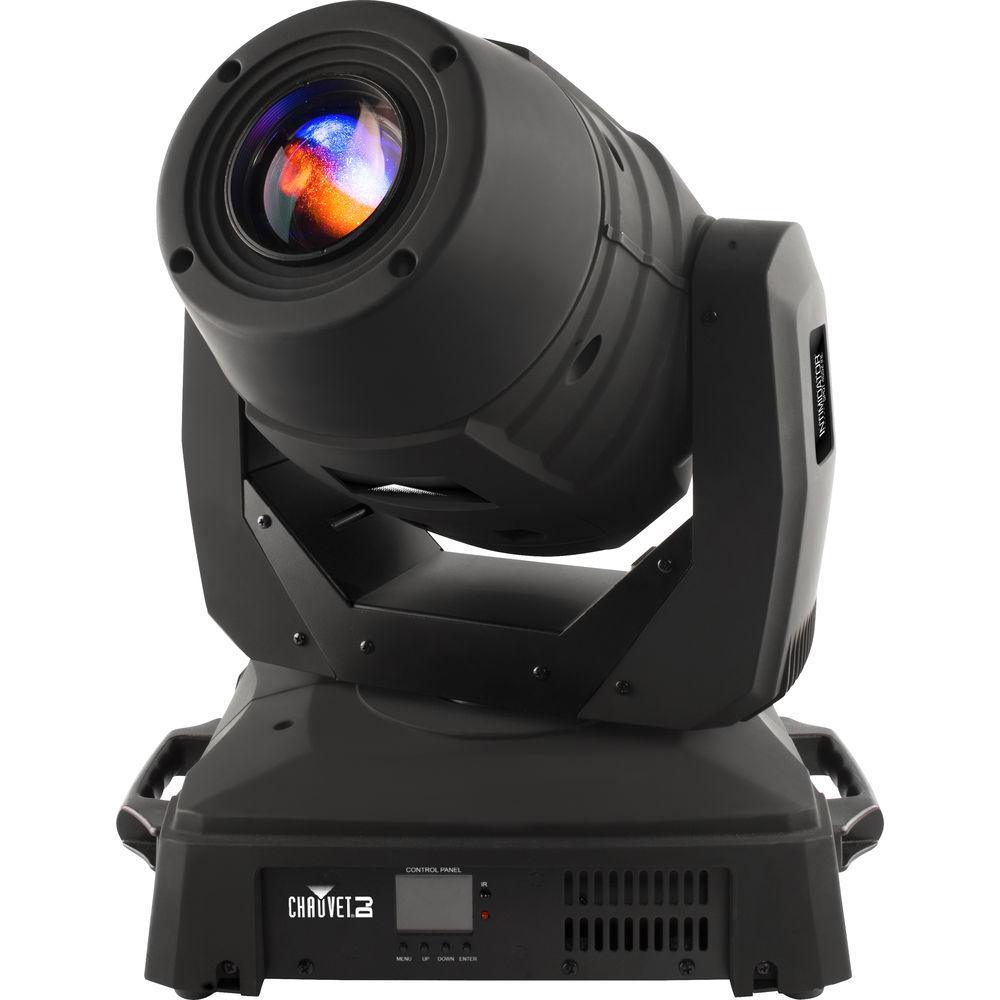

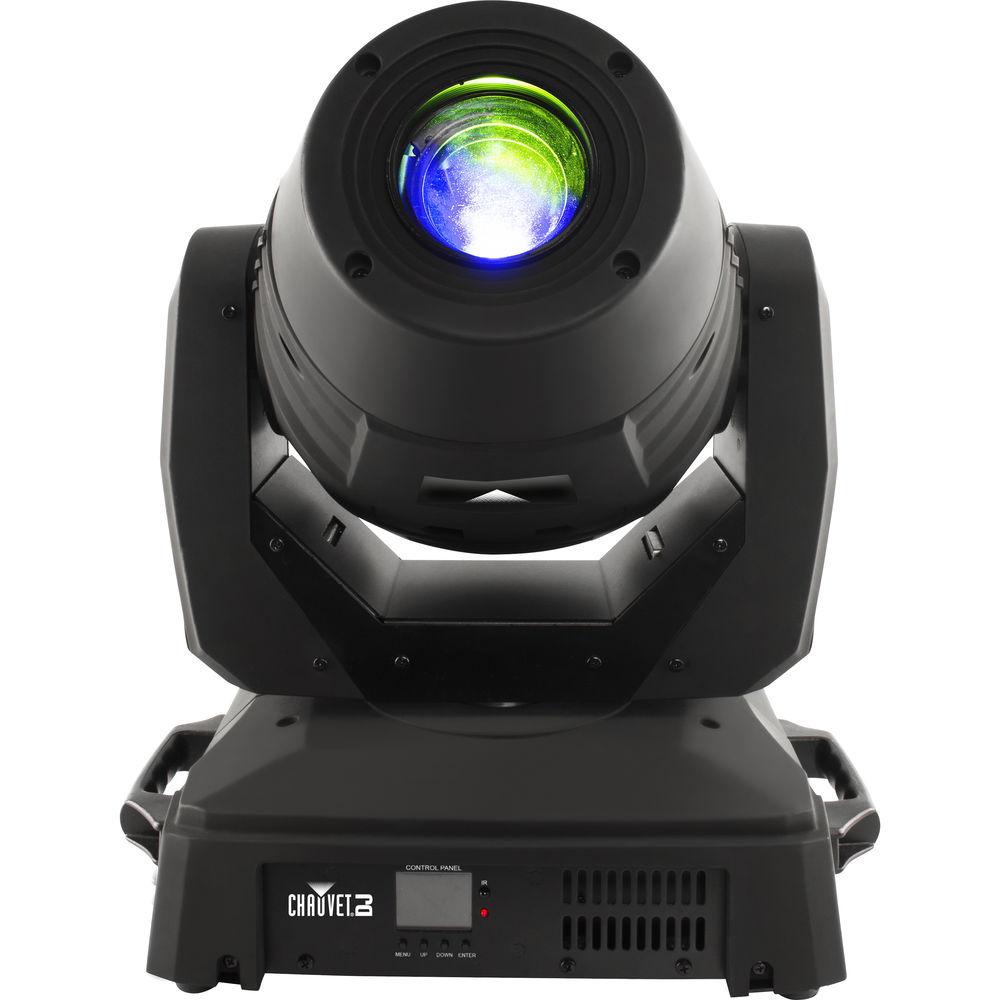

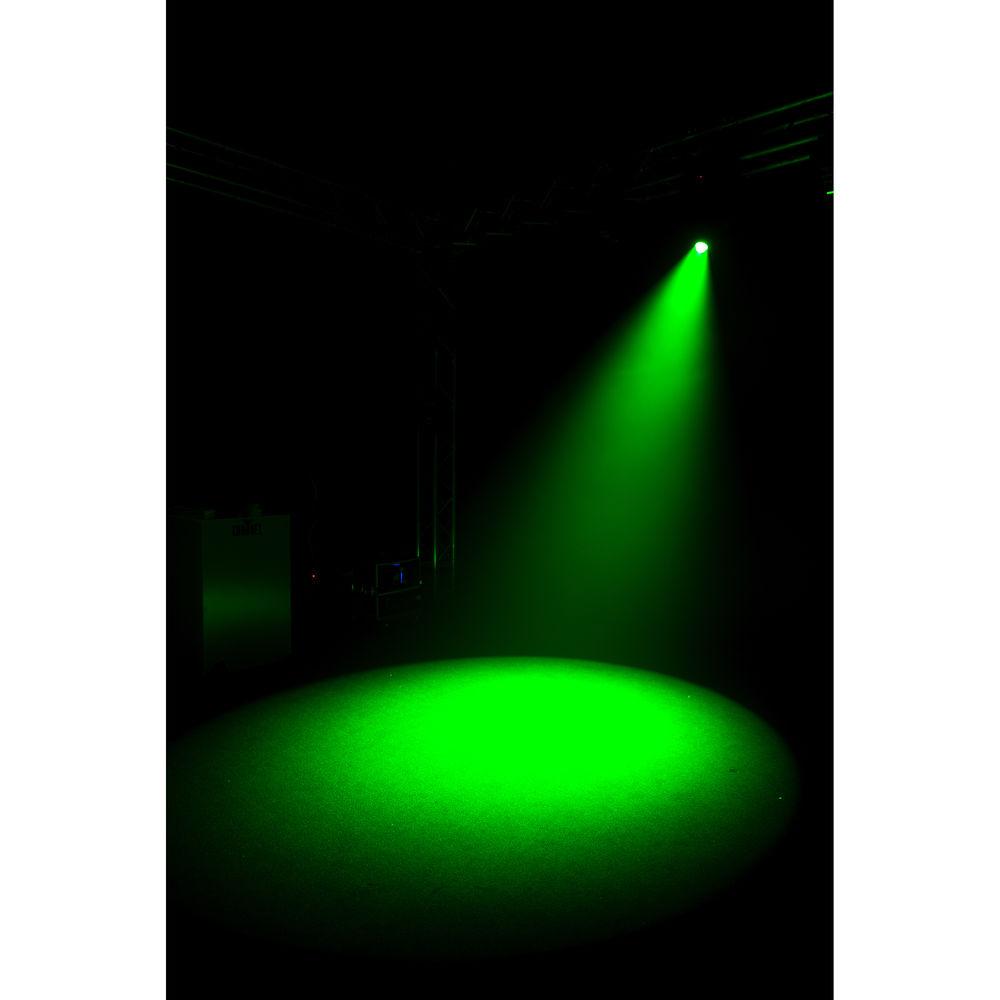

The Intimidator Spot 455Z IRC from Chauvet is a 180W LED moving head spot designed for large events. It features dual gobo wheels that allow for gobo morphing and mid-air projections. The motorized zoom is perfect for short- or long-throw situations. Its beams always remain on the dance floor using the built-in Totem mode and the beam can also be split, using the fixture's 3-facet prism, to cover a larger area.

This moving head emits crisp projections at almost any distance using the motorized focus. Quickly and easily change gobos using the easy-access gobo door and non-DMX control is easy with the IRC-6 remote (sold separately). It allows you to set, save, and recall one scene manually, directly from the full-color LCD display.
  • 180W LED moving head spot designed for large events
  • Dual gobo wheels allow for gobo morphing and mid-air projections
  • Motorized zoom for short- or long-throw situations
  • Beams always remain on the dance floor using the built-in Totem mode

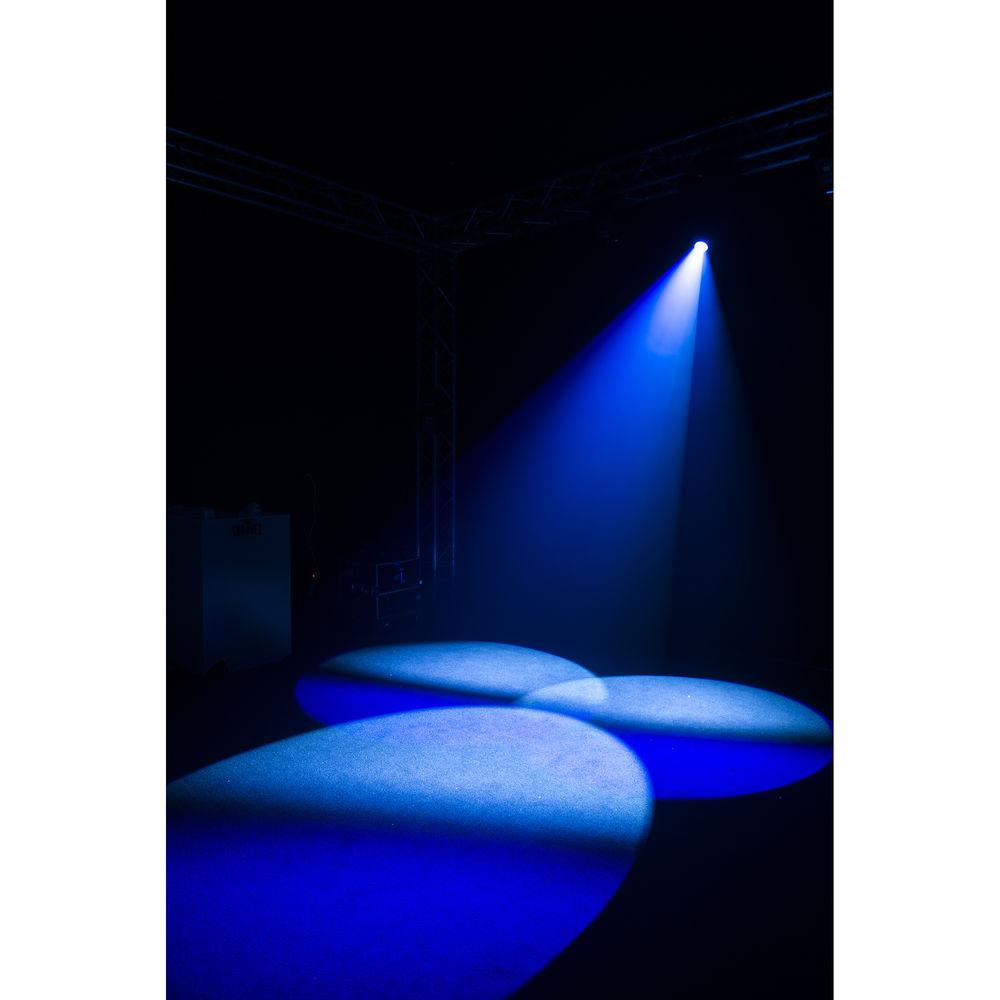

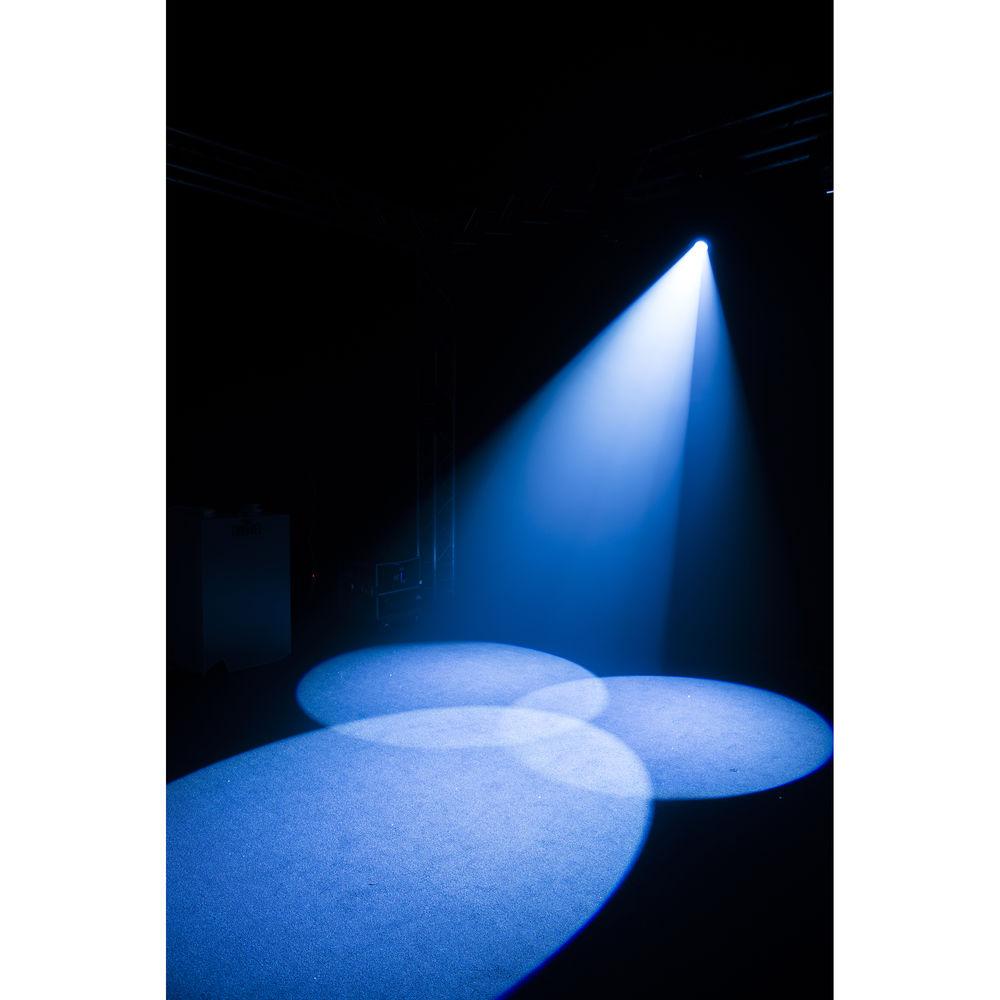

  • Split the beam and cover a larger area with the 3-facet prism
  • Emit crisp projections at almost any distance using the motorized focus
  • Change gobos using the easy-access gobo door
  • Wireless non-DMX control using the IRC-6 remote (sold separately)
  • Set, save, and recall one scene manually, directly from the full-color LCD display
  • Save time running cables by power linking multiple units
  • Fits best in the CHS-50 VIP Gear Bag (sold separately)
UPC: 781462213794 In the Box CHAUVET DJ Intimidator Spot 455Z IRC - Moving Head Fixture
  • Hanging Bracket with Mounting Hardware
  • Power Cord
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the CHAUVET DJ Intimidator Spot 455Z IRC - Moving Head Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    CHAUVET DJ Intimidator Spot 455Z IRC Specs

    DMX Channels 10 or 16
    DMX Connectors 1 x 3-pin XLR input
    1 x 3-pin XLR output
    Pan / Tilt 540° / 240°
    Control Ranges Pan: 180° / 360° / 540°
    Tilt: 90° / 180° / 240°
    Colors 7 x colors + white and split colors; continuous scroll at variable speeds
    Gobos Wheel (1): 6 x metal, 1 x glass, + open; rotating, interchangeable, slot-n-lock, continuous scroll at variable speeds
    Wheel (2): 8 x stamped + open; continuous scroll at variable speeds
    Gobo Size 26.8 mm outside, 22 mm image, 1 mm max. thickness
    Light Source 1 x 180 W LED (white) (48.1 A)
    LED Life Expectancy 50,000 hours
    Strobe Rate 0 to 15 Hz
    PWM Frequency 1,000 Hz
    Zoom Angle 13° to 28° (motorized)
    Illuminance 13°: 38,200 lux @ 6.56' (2 m)
    28°: 8,720 lux @ 6.56' (2 m)

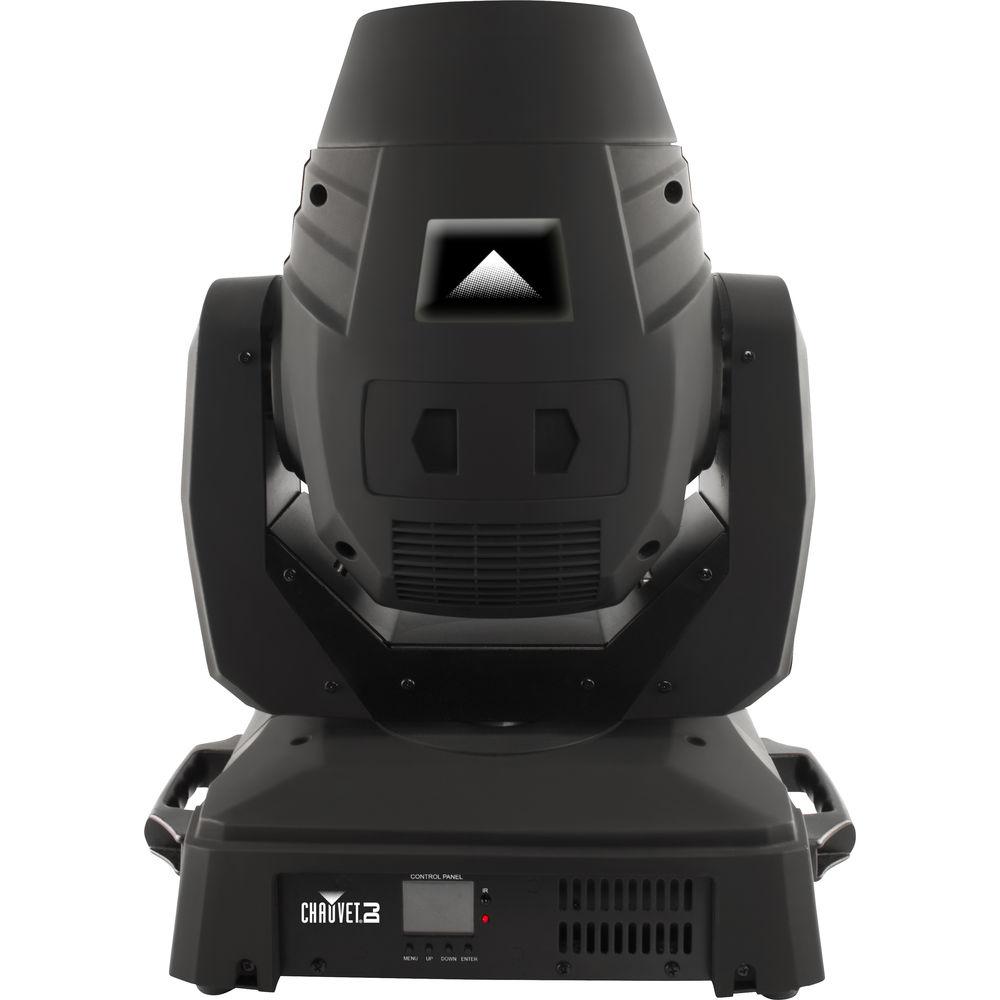

    Display Full-color LCD control panel
    Wireless Remote IRC-6 (sold separately)
    Approvals CE
    Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)

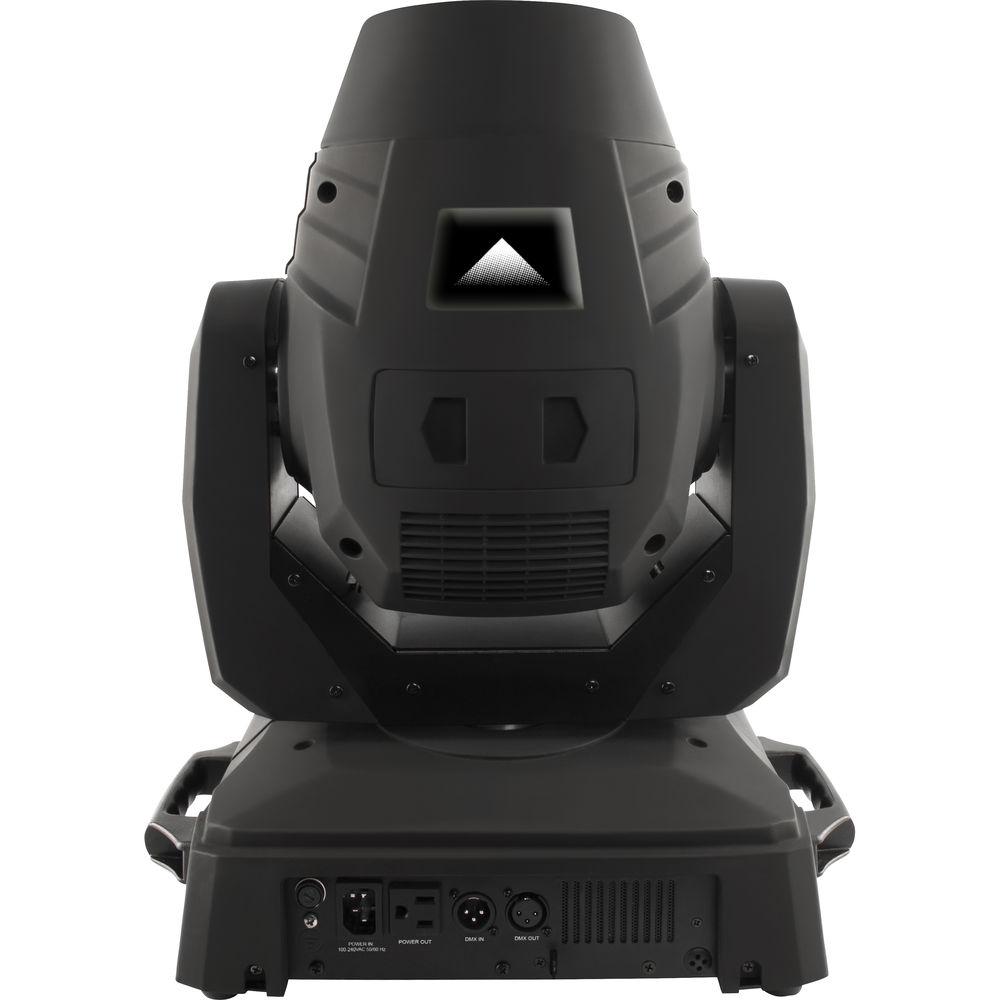

    Power Connectors 1 x IEC input
    1 x Edison output
    Power Linking 2 units @ 120 V; 5 units @ 230 V
    Power and Current 327 W, 2.9 A @ 120 V, 60 Hz
    304 W, 1.5 A @ 230 V, 50 Hz
    Fuse F 7 A, 250 V
    Dimensions 16.6 x 11.9 x 20.5" (42.3 x 30.3 x 52.0 cm)
    Weight 42.2 lb (19.1 kg)
    Package Weight 54.6 lb
    Box Dimensions (LxWxH) 20.0 x 19.7 x 17.7"
