User Manual for CHAUVET DJ Intimidator Spot Duo 155 - Compact Dual LED Moving Heads Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Intimidator Spot Duo 155
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ Intimidator Spot Duo 155 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

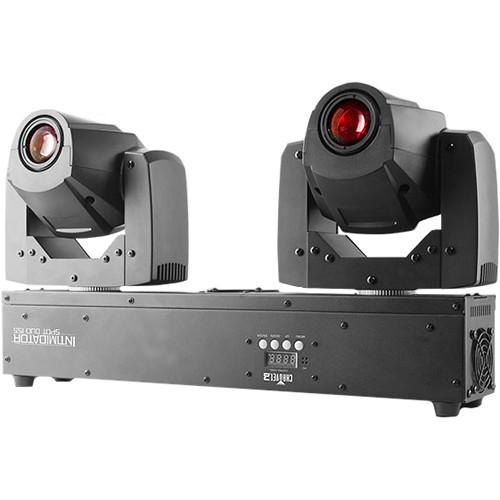

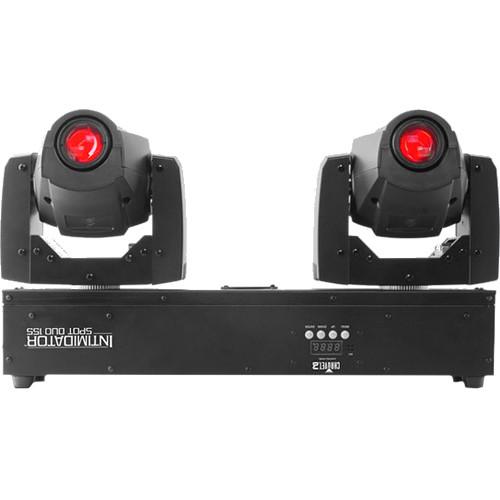

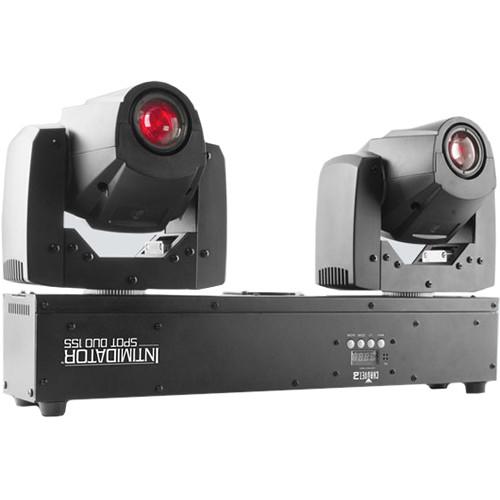

Product description The Intimidator Spot Duo 155 from Chauvet consists of two Intimidator Spot LED 155 moving heads pre-mounted on a single bar. Its compact size, light weight (19.8 lb), and ability to safely mount on tripods using the built-in pass-through hole make it suitable for mobile applications. Its fast and precise movements, crisp optics, and even output will help bring energy to dance floors in both small- and mid-sized venues. Performance features like separate color and gobo wheels, ultra-smooth dimming, and adjustable strobe speed enhance the lighting performance.Minimize your programming time with built-in movement macros, move-in-black features, and sound-activated and automated programs that can generate a synchronized show in master/slave mode. This user-friendly fixture also offers individual reset of pan/tilt, color, and gobo. Multiple units can be power linked to save time running cables and extension cords. This unit ships with a power cord and a hanging bracket with mounting hardware. -
- Two powerful Intimidator Spot LED 155 moving heads pre-mounted on a single bar
- Safely mounts on tripods using the built-in pass-through hole
- Delivers a synchronized show in Master/Slave mode with up to 2 units
- Bright, compact, and lightweight LED moving heads suitable for mobile applications
- Increase design flexibility and effects with separate color and gobo wheels
- Enhance any light show with super smooth dimming and adjustable strobe speed
- Minimize programming time with separate built-in movement macros for sound and automated modes
- Save time running cables and extension cords by power linking multiple units
UPC: 781462214630 In the Box CHAUVET DJ Intimidator Spot Duo 155 - Compact Dual LED Moving Heads Power Cord Hanging Bracket with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Intimidator Spot Duo 155 - Compact Dual LED Moving Heads in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Intimidator Spot Duo 155 Specs | Light Source | 2 x white LEDs; 32 W, 2.3 A | | LED Life Expectancy | 50,000 hours | | Beam Angle | 15° | | Illuminance | 5,550 lux @ 6.6' (2 m) | | Strobe Rate | 0 to 17 Hz | | PWM Frequency | 1,300 Hz | | Color Wheel | 9 x Colors: yellow, magenta, green, red, cyan, orange, blue, light green, amber
Plus open/white and split colors
Continuous scroll at variable speeds | | Gobo Wheel | 9 x metal gobos, plus open
Continuous scroll at variable speeds
Shake effect | | Pan & Tilt Range | Pan: 180° / 360°
Tilt: 90° / 180° / 270° | | Special Functions | Move-in-black
Movement macros
Individual pan/tilt, color, and gobo reset | | Operation Modes | DMX, standalone, master/slave | | Built-In Programs | Automatic and sound-active modes | | DMX Connectors | Input: XLR 3-pin

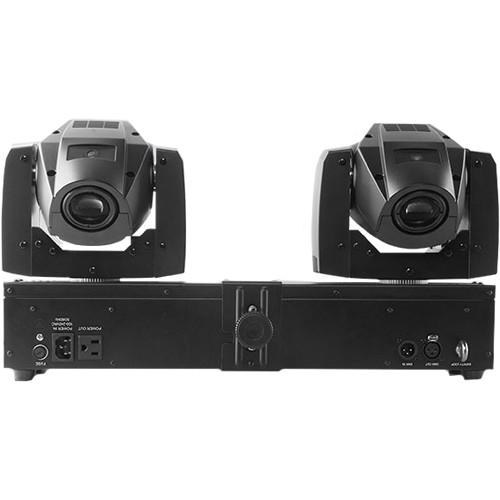

Output: XLR 3-pin | | DMX Channel Modes | 3 x Modes: 10, 17 or 20 channels | | Display/Controls | 4-character LED display with 4-button control panel | | Input Voltage Range | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: IEC
Output: Edison | | Power Linking | 120 VAC: 3 units
230 VAC: 7 units | | Power and Current | 120 VAC, 60 Hz: 140 W, 2 A
230 VAC, 50 Hz: 138 W, 1 A | | Approvals | CE | | Dimensions | 21.5 x 6.5 x 11.4" (54.6 x 16.5 x 29.0 cm) | | Weight | 19.8 lb (9.0 kg) |
