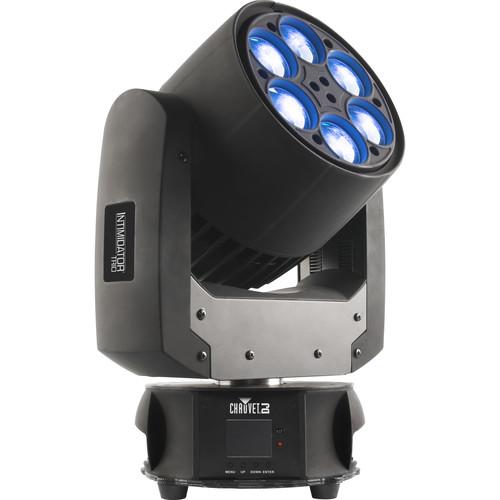

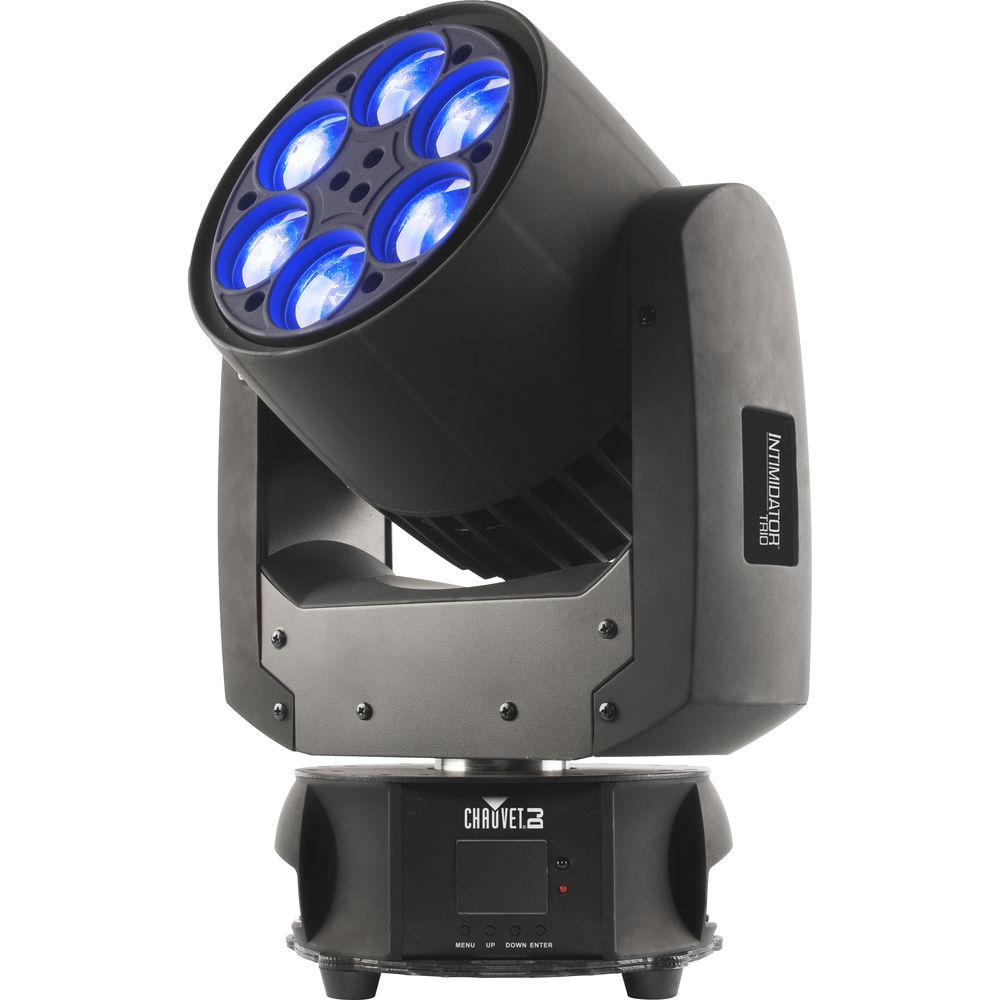

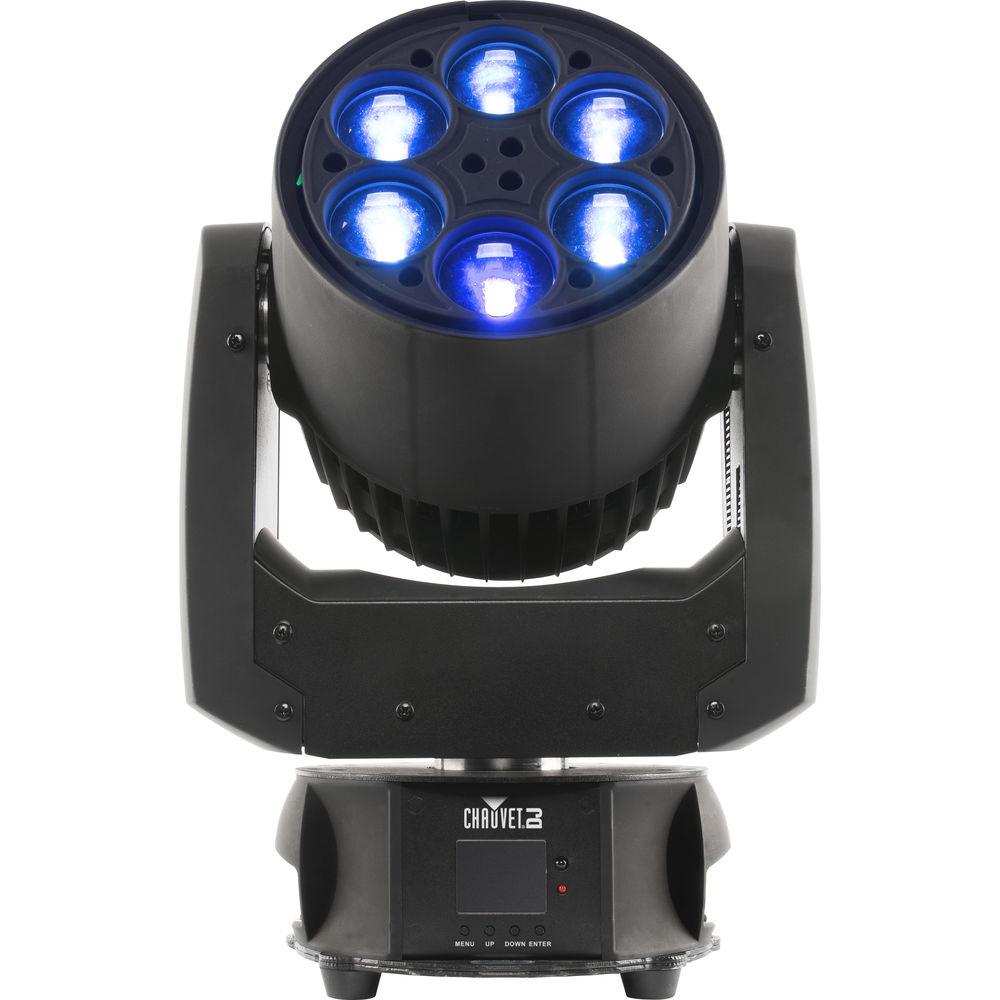

Product description The Intimidator Trio from Chauvet is an LED-powered moving head with beam, wash, and effect features. Its motorized zoom allows for seamless transitions between a narrow beam and a wide wash and a continuously rotating honeycomb effect light generates complex looks with built-in, eye-catching auto programs and zone control.
The Intimidator Trio features a built-in Totem mode, which keeps the beams focused on the dance floor, and coordinated Master/Slave programs for up to 4 fixtures, giving an advanced look with no programming. You can set, save, and recall one scene directly from the full-color LCD display and convenient, wireless non-DMX control is at your fingertips using the IRC-6 remote (sold separately). - LED-powered moving head with beam, wash, and effect features
- Seamlessly change from a narrow beam to a wide wash with the motorized zoom
- Continuously rotating honeycomb effect
- Built-in, eye-catching auto programs and zone control
- Built-in Totem mode allows the beams to remain focused on the dance floor
- Coordinated Master/Slave programs give an advanced look with no programming (up to 4 fixtures)
- Set, save, and recall one scene directly from the full-color LCD display
- Convenient, wireless non-DMX control using the IRC-6 remote (sold seaprately)
- Save time running cables by power linking multiple units
- Fits best in the CHS-50 VIP Gear Bag (sold separately)
UPC: 781462214500 In the Box CHAUVET DJ Intimidator Trio - LED Moving Head Hanging Bracket Mounting Hardware Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Intimidator Trio - LED Moving Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

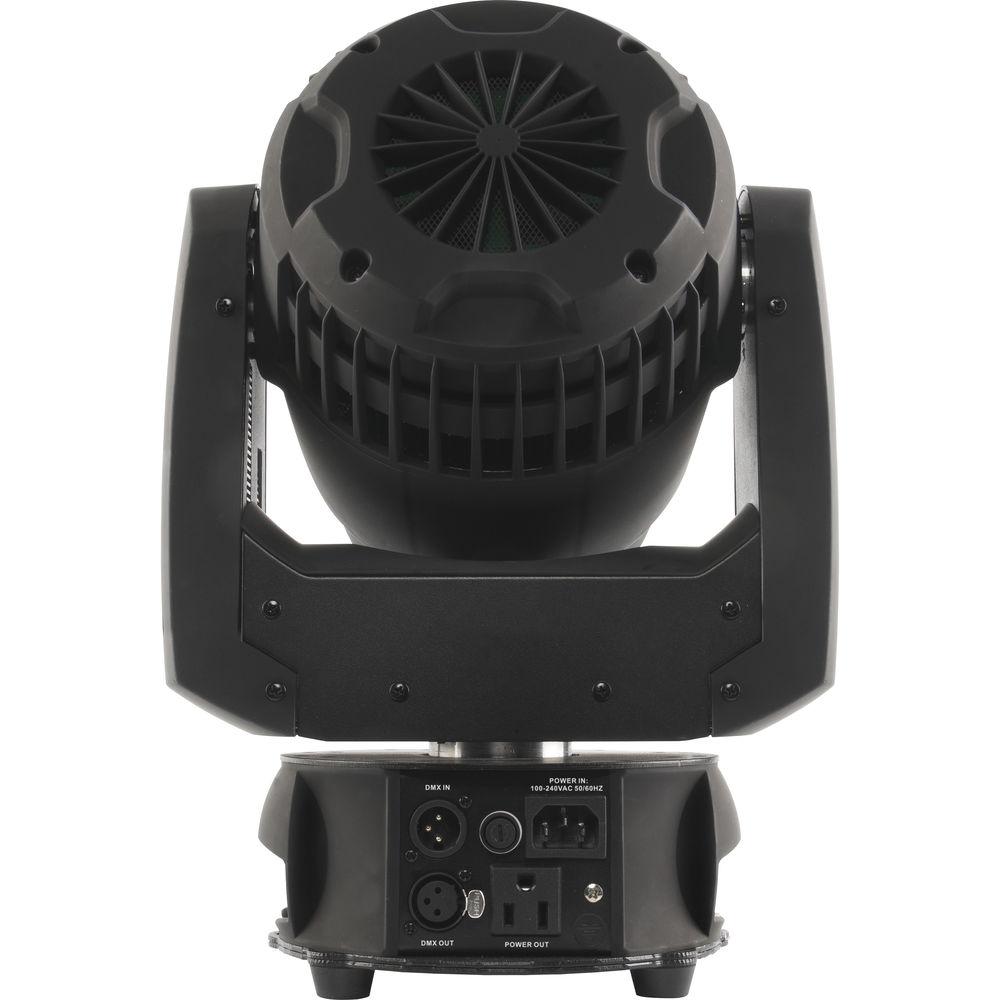

Technical parametersCHAUVET DJ Intimidator Trio Specs | Light Source | 6 x 21 W quad-color RGBW LEDs (red, green, blue, white) (6.3 A) | | LED Life Expectancy | 50,000 hours | | DMX Channels | 15 or 30 | | DMX Connectors | 1 x XLR 3-pin input
1 x XLR 3-pin output | | Pan / Tilt | 540° / 270° | | Range | Pan: 180° / 360° / 540°
Tilt: 90° / 180° / 270° | | Strobe Rate | 0 to 20 Hz | | PWM Frequency | 1,200 Hz | | Zoom Angle | 7 to 53° | | Illuminance | (7°): 16,000 lux @ 6.56' (2 m)
(53°): 1,350 lux @ 6.56' (2 m) | | Display | Four-button full-color LCD menu | | Wireless Remote | IRC-6 Remote (sold separately) | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connections | 1 x IEC input
1 x Edison output
| | Power Linking | 120 V: 4 units, 13.6 A
230 V: 8 units, 13.6 A | | Power and Current | 120 V (60 Hz): 242 W, 2 A
230 V (50 Hz): 232 W, 1 A | | Fuse | F 5 A, 250 V | | Approvals | CE | | Dimensions | 10.9 x 10.9 x 15.2" (27.8 x 27.8 x 38.6 cm) | | Weight | 20.3 lb (9.2 kg) | | | | Package Weight | 27.1 lb | | Box Dimensions (LxWxH) | 17.9 x 14.7 x 11.8" |
