User Manual for CHAUVET DJ Intimidator Wash Zoom 450 IRC Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Intimidator Wash Zoom 450
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ Intimidator Wash Zoom 450 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

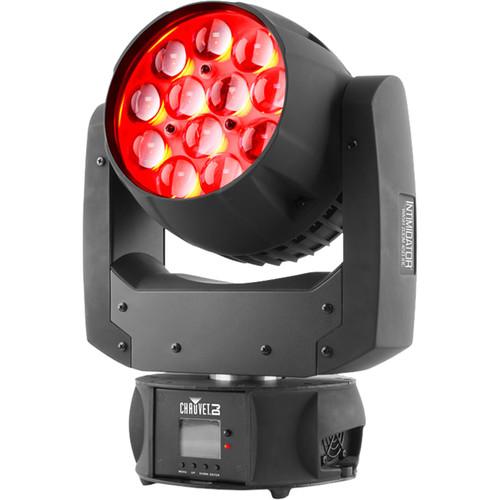

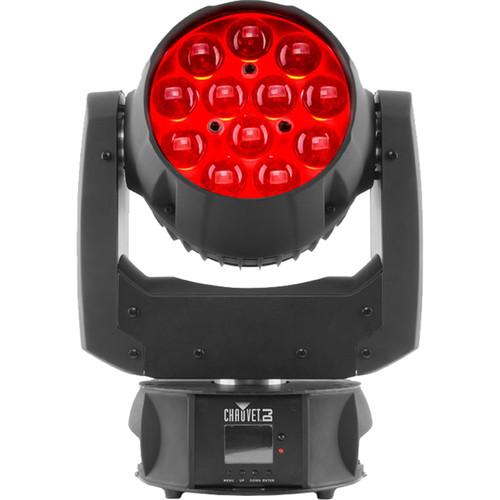

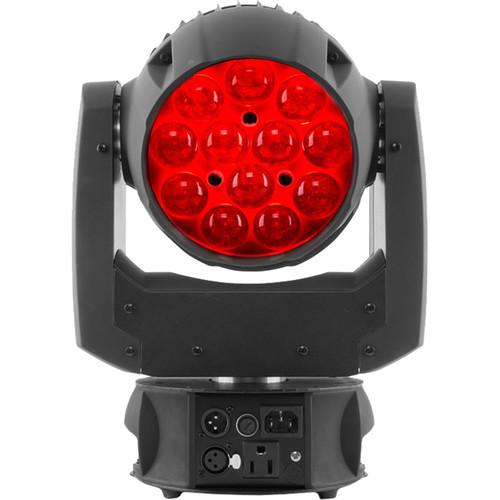

Product description The Intimidator Wash Zoom 450 IRC from Chauvet DJ is a compact moving head wash effect with a motorized zoom for short-throw and long-throw applications, such as mobile DJ, concert lighting, night clubs, and other venues. The fixture is equipped with twelve 15W quad-color LEDs (RGBW) that project a bright wash with a variable zoom from 14° to 58°. The innovative Totem mode ensures that the beam always remains on the dance floor, while eye-catching auto programs with zone control generate complex designs quickly and easily. Up to four fixtures can be linked for synchronized shows in automated or sound-active modes.The instrument can also be controlled using DMX with channels 14 and 29, or via the optional IRC-6 wireless controller. The fixture features power-linking, which daisy-chains up to four lights (120V) for quick and easy setups and breakdowns. The Intimidator Wash Zoom 450 IRC ships with a power cord, hanging bracket, and mounting hardware. -
- Compact moving head wash fitted with 15W quad-color RGBW LEDs
- Beams always remain on the dance floor using the built-in Totem mode
- Set, save, and recall 1 scene manually directly from the full-color LCD display
- Link up to 4 fixtures to create eye-catching, synchronized shows in Automated or Sound modes
- Convenient, wireless non-DMX control using the optional IRC-6 remote
- Motorized zoom for short-throw or long-throw applications
- Generate complex looks easily with built-in, eye-catching auto programs with zone control
- Simple navigation and a full text readout with the full-color LCD screen
- Save time without running cables by power linking multiple units
- Generate a synchronized show in Master/Slave mode with easy-to-access, built-in automated programs
- Compatible with the optional CHS-50 VIP gear bag
In the Box CHAUVET DJ Intimidator Wash Zoom 450 IRC (RGBW) Power Cord Hanging Bracket with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Intimidator Wash Zoom 450 IRC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Intimidator Wash Zoom 450 IRC Specs | DMX | DMX Channels: 14 or 29
DMX Connectors: 3-pin XLR | | Pan & Tilt | Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan / 270°, 180°, 90° tilt | | Light Source | 12 LEDs (quad-color RGBW) 15 W (3.7 A), 50,000 hours life expectancy | | Strobe Rate | 0 to 20 Hz | | PWM Frequency | 1,200 Hz | | Illuminance | 14°: 25,610 lux at 2 m
58°: 1,960 lux at 2 m | | Zoom Angle | 14° to 58° | | Power Linking | 4 units at 120 V
8 units at 230 V | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power and Current | 219 W, 1.9 A at 120 V, 60 Hz
207 W, 1 A at 230 V, 50 Hz | | Approvals | CE | | Dimensions | 7.6 x 10.9 x 14.3" / 193.0 x 276.9 x 363.2 mm | | Weight | 15.8 lb / 7.2 kg |
