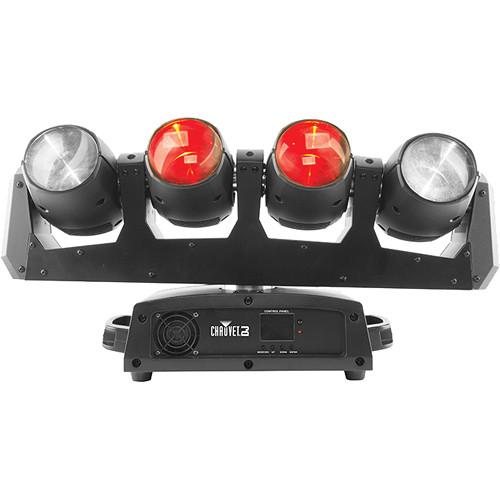

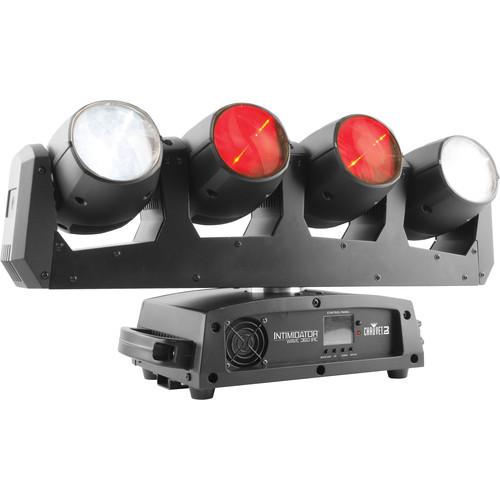

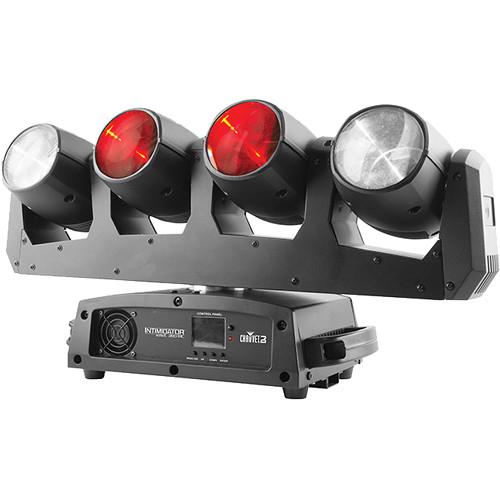

Product description The Chauvet Intimidator Wave 360 IRC LED Array provides a dynamic effect that features four independently controlled 12W RGBW LED moving heads on a single rotating base. With its razor sharp beams, continuous pan rotation, adjustable tilt ranges, and infinite color mixing capabilities, the Intimidator Wave 360 IRC produces the kind of light shows that set you apart from the pack. Up to four units (20 moving heads in all) can be linked in automatic, sound, or Master-Slave mode. An optional IRC-6 remote can be used for non-DMX control. - Attributes
-
- Stunning moving light array with 4 independently controlled heads on a rotating base
- Continuous pan rotation and 4 tilting heads create unique effects
- Narrow, razor-sharp beams of RGBW light for vivid aerial effects
- Built-in movement macros and color programs easily create complex looks
- Master/Slave mode makes it easy to generate coordinated light shows
- Adjustable pan and tilt ranges put light where you want it
- Easy to use, full color menu interface makes manual operation simple and quick
- Works with the optional IRC-6 remote for convenient, wireless non-DMX control
- Power-linking capability shortens setup time
UPC: 781462212674 In the Box CHAUVET DJ Intimidator Wave 360 IRC LED Array Hanging Bracket with Mounting Hardware Power Cord Quick Reference Guide Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Intimidator Wave 360 IRC LED Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Intimidator Wave 360 IRC Specs | Light Source | 4 White 12 W, 3.9 A RGBW quad-color LEDs, 50,000 hr | | Beam Angle | 5° | | Light Intensity | 16,670 lux @ 6.6' (2.0 m) | | DMX Interface | DMX channels: 17 or 33

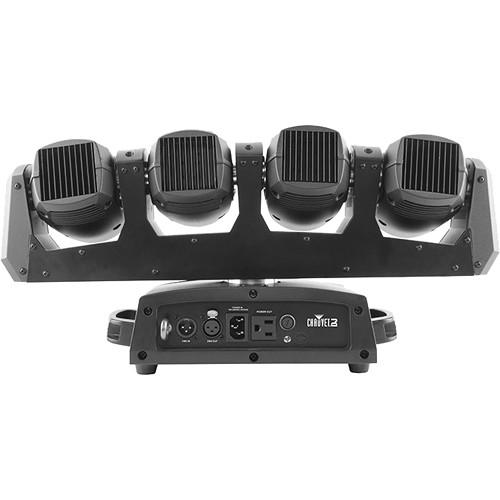

DMX connectors: 3-pin XLR | | Movements | Pan and tilt: 540° / 270°, continuous
Pan and tilt ranges: 180°, 360°, 540° pan / 90°, 180°, 270° tilt | | PWM Frequency | 488 Hz | | Strobe Rate | 0 - 20 Hz | | Power Requirements | Auto-switching 100-240 VAC, 50/60 Hz | | Power and Current | At 120 VAC,60 Hz: 175 W, 2.6 A
At 230 VAC, 50 Hz: 177 W, 1.3 A | | Power Linking | Each head:
3 Units @ 120 VAC
6 Units @ 230 VAC | | Approvals | CE | | Dimensions | 22 x 7.4 x 11.7" (559 x 189 x 297 mm) | | Weight | 19.4 lb (8.8 kg) | | | | Package Weight | 26.85 lb | | Box Dimensions (LxWxH) | 24.5 x 14.8 x 10.8" |
