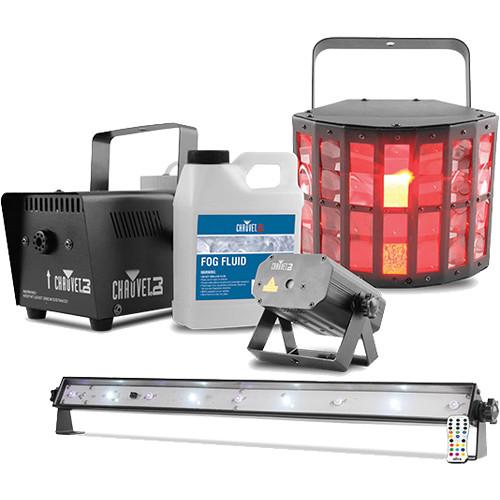

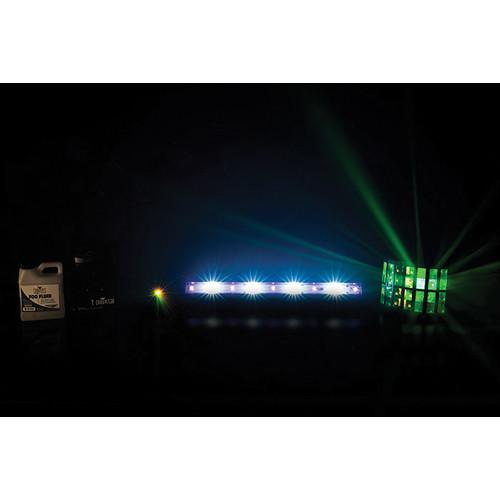

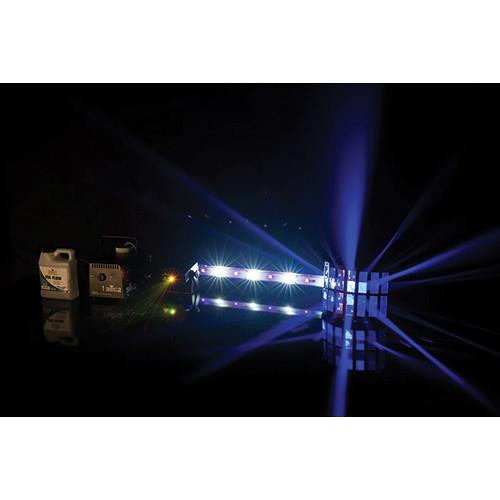

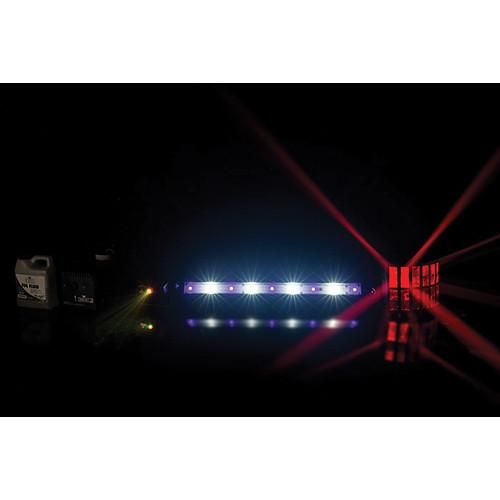

Product description The JAM Pack Gold from Chauvet is a turn-key solution for exciting lighting and fog effects for clubs, concerts and other entertainment venues. The Jam Pack includes a Derby multi-colored effect fixture, UV Wash Strobe, a compact laser fixture and a Hurricane 700 Fog machine with wired remote control. Three external AC power supplies are included for the lights and an IRC-6 wireless remote is included to control them. The Derby fixture has a faceted front face for projecting multi-colored effects while the 2 x 21" UV Wash light is ideal for lighting stage walls and adding excitement with its strobe effect. The Laser fixture generates sharp red or green aerial effects. All of the lights in the package have Auto and Sound modes and can be controlled by the included IRC-6 wireless remote control. Nothing creates an exotic atmosphere like a fog machine. The included Hurricane 700 fits the bill with fog output up to 1,500 cfm. The machine has a 0.2 gallon tank and a short heat-up time of 2.5 minutes to get your event up and running as soon as possible. The Hurricane 700 comes with a wired (13') remote control. - Kit Attributes
-
- Combination of multiple effect lights in one convenient package
- Pack includes a Derby, laser, fog machine, and a UV wash strobe combo light
- Ready to use right out of the box - just add music

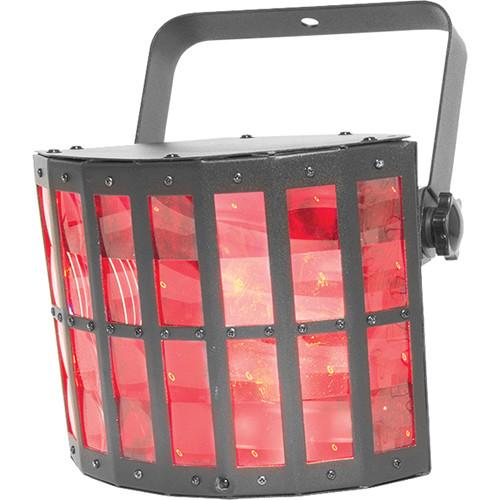

- Derby effect light creates dynamic, multi-colored looks

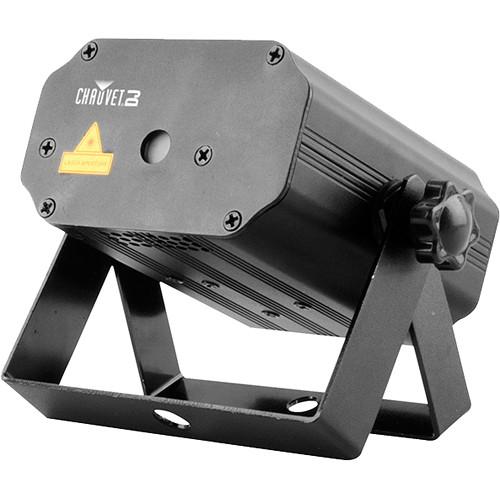

- Compact laser fixture generates sharp aerial effects
- 2-in-1 Fixture pairs a UV wash and a white strobe in one amazing effect
- Easy wireless control with the included IRC-6 remote
- Trigger Auto and Sound modes from the IRC-6 remote
- Fits best in the optional CHS-40 VIP Gear Bag
UPC: 781462213046 In the Box CHAUVET DJ Jam Pack Gold Derby LED Light Red Green Laser Fixture UV Wash Strobe Combination Light Hurricane 700 Fog Machine IRC-6 Infrared Remote Control 6 3 x External Power Supply Adapters Mounting Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Jam Pack Gold in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ JAM PACK GOLD Specs | Material | Aluminum | | Light Source | Derby: 3 LEDs (tri-color RGB) 6.0 W, 1.76 A
UV Wash Strobe: 9 LEDs (5 UV / 4 white), UV 1.05 W, white 0.60 W, UV 0.31 A, white 0.19 A
Laser: 650 nm, 100 mW (red) laser diode, 532 nm, 30 mW (green) laser diode | | Life Expectancy | 50,000 hr on LED sources | | Strobe Rate | Strobe rate: 0 to 16 Hz | | Programs | Auto and Sound modes | | Control | Local or IRC-6 remote control | | Programs and Effects | Derby effect light creates dynamic, multi-colored look
Compact laser fixture generates sharp aerial effects
2-in-1 Fixture pairs a UV wash and a white strobe in one effect
Fogger adds atmosphere and diffuses light effects | | Yoke | On Laser and Derby
Brackets on UV Wash Strobe | | Input Voltage | Fogger: 120 VAC, 60 Hz
Derby, UV Wash Strobe, Laser: 12 VDC, 1 A (external power supply: 100-240 VAC, 50/60 Hz | | Power and Current | Derby: 10 W, 0.150 A @ 120 VAC, 60 Hz
UV Wash Strobe: 12 W, 0.18 A @ 120 VAC, 60 Hz
Laser: 4 W, 0.068 A @ 120 VAC, 60 Hz Fogger: 471 W, 3.9 A @ 120 VAC, 60 Hz | | Dimensions | Derby: 6.6 x 7 x 8.0" (167 x 177 x 203 mm)
UV Wash Strobe: 21.2 x 1.6 x 2.2" (537 x 40 x 55 mm)
Laser: 4.0 x 4.8 x 3.7" (101 x 120 x 94 mm)
Fogger: 4.0 x 4.8 x 3.7" (101 x 120 x 94 mm) | | Fog Machine | Breaker size: F 7 A, 250 VAC
Tank capacity: 0.2 gal (0.6 L)
Remote wire length: 13' (4.0 m)
Heat-up time: 2.5 minutes
Output: 1,500 cfm
Compatible fluids: FJU, HDF, FJQ | | Approvals and Compliance | Laser: Classified per EN/IEC 60825-1:2007
Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
Other kit fixtures: CE, FDA | | Weight | Derby: 2.4 lb (1.1 kg)
UV strobe: 0.6 lb (0.3 kg)
Laser: 0.6 lb (0.3 kg)
Fogger: 4.0 lb (1.8 kg) | | | | Package Weight | 12.35 lb | | Box Dimensions (LxWxH) | 21.7 x 14.4 x 7.3" |
