User Manual for CHAUVET DJ Kinta FX - RGBW LED Derby Laser LED Strobe Multi-Effect Fixture Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Kinta FX - RGBW
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ Kinta FX - RGBW contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

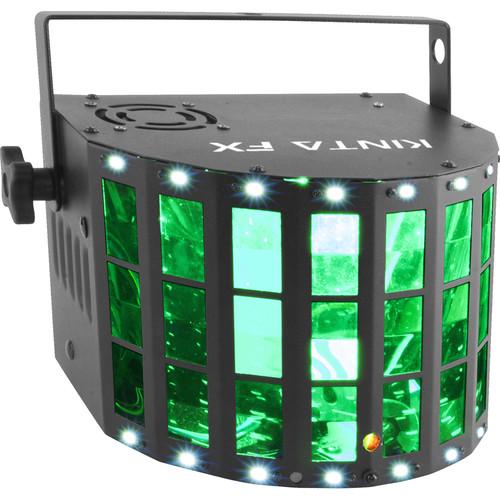

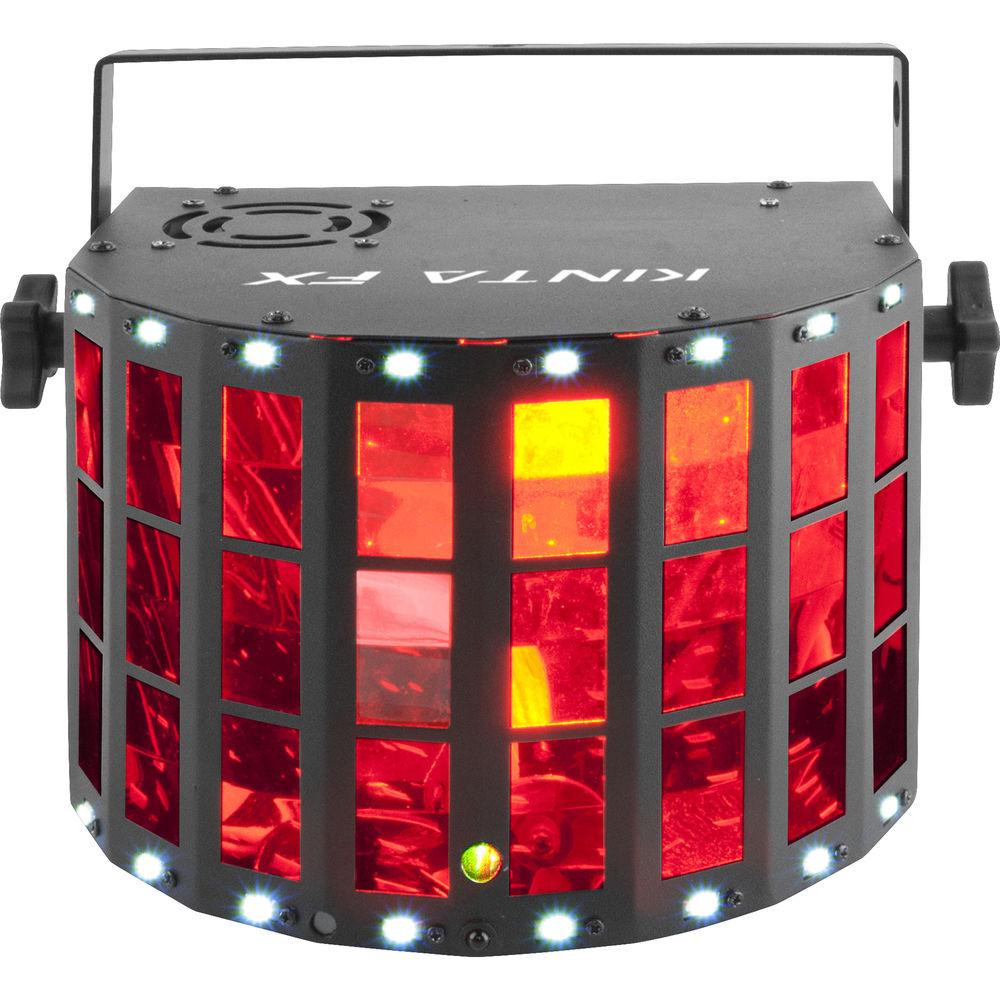

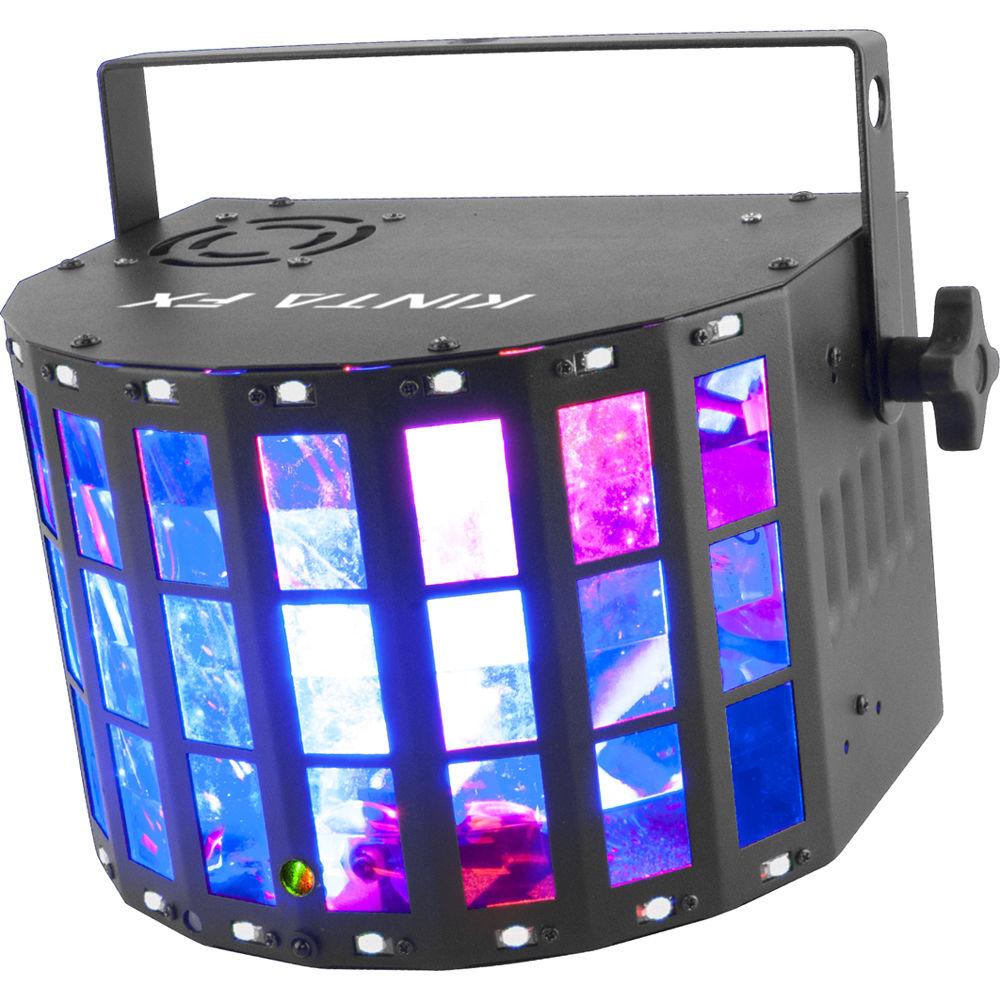

Product description The versatile CHAUVET DJ Kinta FX combines an RGBW (red, green, blue, white) LED derby effect with green/red laser diodes and a white SMD LED strobe, in a single compact fixture. The effects can be coordinated to create instant light shows with countless, razor-sharp multicolor LED beams, eye-catching strobe effects and chases, and hundreds of red and green beams that can both rotate and strobe. The fixture provides a wide coverage angle of 118° suitable for blanketing a stage or dance floor.The Kinta FX allows for both standalone and DMX operation. For use without a DMX controller, you can choose between sound-active or automatic modes. The Master/Slave option lets you coordinate multiple fixtures without the need for a controller. The fixture is equipped with a universal, auto-sensing power supply and is compatible with the IRC-6 wireless remote (available separately). Note: This is a class 3R/3B/2M laser product. Avoid direct eye exposure. - Key Features
-
- Combines an RGBW (red, green, blue, white) LED derby effect, a green and red laser, and a white SMD LED strobe to create instant light shows
- Multicolored derby beams and eye-catching strobes and chases
- Projects hundreds of red and green laser beams and patterns
- 118° coverage angle (beams)
- Built-in automated programs, sound-activated
- Laser rotation FX
- Use red and green laser beams individually or together
- Standalone or Master/Slave configuration
- 2 x DMX channel modes
- LED display with 4-button menu for easy navigation
- Save time running cables and extension cords by power-linking up to 16 units at 120V or 31 units at 230 V
- Compatible with the IRC-6 wireless remote for quick and simple control (available separately)
- Single-yoke hanging bracket
- Multi-voltage operation: 100-240 VAC, auto-ranging
UPC: 781462215279 In the Box CHAUVET DJ Kinta FX - RGBW LED Derby / Laser / LED Strobe Multi-Effect Fixture IEC Power Cord Limited 2-Year Warranty (Limited 6-Month Warranty on Laser Diodes) Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Kinta FX - RGBW LED Derby Laser LED Strobe Multi-Effect Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Kinta FX Specs | Light Sources | Kinta
4 x 7.5 W RGBW LEDs (1 x red, 1 x green, 1 x blue, 1 x white)
Current: 2.4 A
Life Expectancy: 50,000 hours
SMD Strobe
16 x 5 W SMD LEDs (white)
Current: 1.6 A
Laser
Green: 532 nm / 30 mW laser diode
Red: 650 nm / 100 mW laser diode
Class 3R / 3B / 2M levels | | Coverage Angle | Beams: 118° | | Operating Modes | DMX
Standalone
Master/Slave | | Effects | Auto Programs
Sound-Active
Color macros
SMD strobe and chases | | Strobe Rate | Laser Beams: 1 to 30 Hz
SMD Strobe: 1 to 20 Hz | | Display/Controls | 4-character LED display with 4-button control panel
Microphone-sensitivity knob | | DMX Channel Modes | 2 or 9 channels | | DMX Connectors | Input: 1 x XLR 3-pin
Output: 1 x XLR 3-pin | | Display | 4-button LED display | | Wireless Control | IRC-6 remote (available separately) | | Power Linking | 16 units, 8 A at 120 VAC
31 units, 8 A at 230 VAC | | Input Voltage Range | 100-240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: 1 x IEC
Output: 1 x Edison | | Power and Current | 32 W, 0.5 A at 120 VAC, 60 Hz
31 W, 0.3 A at 230 VAC, 50 Hz | | Fuse | T1 A, 250 VAC | | Maximum Operating Temperature | Laser: 95°F / 35°C (maximum external temperature) | | Cooling System | Fan-assisted convection | | Safety | Safety Loop | | Approvals | Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
CE, RoHS | | Mounting | Hanging bracket | | Dimensions (L x W x H) | 7.4 x 10.3 x 7.4" / 187 x 262 x 187 mm | | Weight | 3.7 lb / 1.7 kg | | | | Package Weight | 5.45 lb | | Box Dimensions (LxWxH) | 12.4 x 10.6 x 8.1" |
