User Manual for CHAUVET DJ LED Followspot 120ST Fixture Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ LED Followspot 120ST Fixture
- Product category: Stage & Studio CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ Stage & Studio
 |
User manual for the CHAUVET DJ LED Followspot 120ST Fixture contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

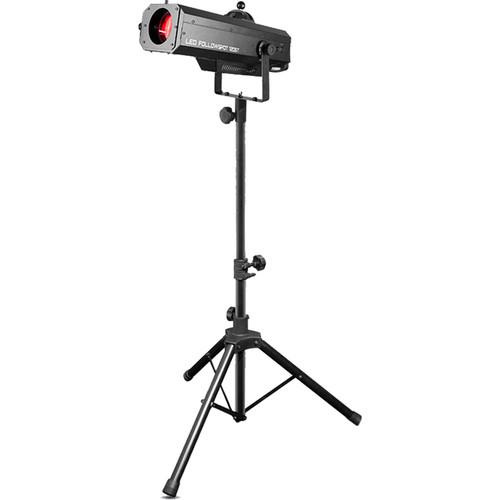

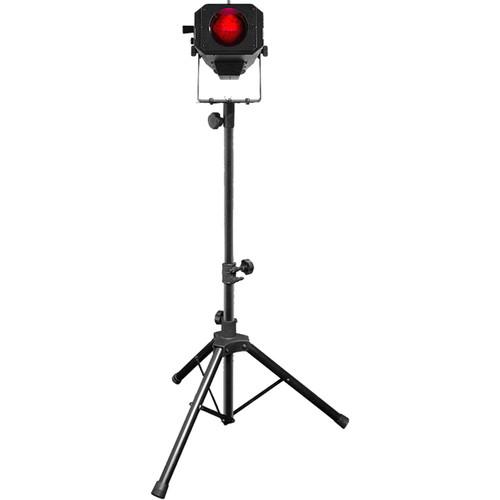

Product description The LED Followspot 120ST Fixture features a built-in dimmer and DMX control. It is primarily designed for use in theater lighting but can also be used in film and video production. Dimming, color adjustment, strobe, and shutter open/closed can be controlled locally with buttons on the back of the fixture or remotely via DMX. A manually controlled iris allows you to change the beam angle to 5°.

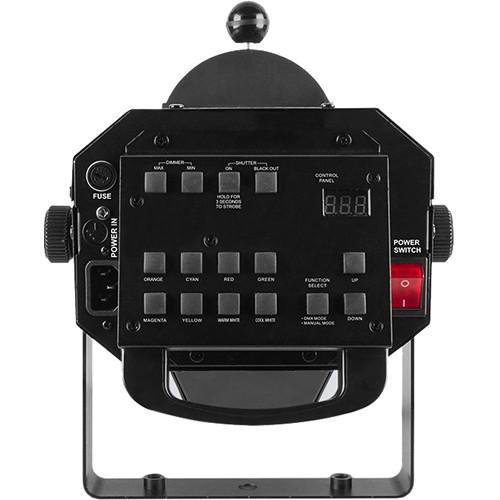

Eight color-selection buttons on the back of the fixture enable you to change the color of the light from cool white, to warm white, orange, cyan, purple, green, red, and light blue. This can be done locally or via DMX control. A built-in shutter control is for turning the light on or off on cue, and you can also set the fixture to strobe up to 16 times a second. A three-digit alpha-numeric display shows "NAn" in manual mode and "001" for DMX mode. The fixture is fuse protected and comes fitted with a yoke that mounts the light to the included stand. - This LED followspot is dimmable from 100 to 0% brightness. You can change the color of the light from cool white to warm white for matching to tungsten. You can also change the color to orange, cyan, red, green, magenta, and yellow. A rotating color wheel is responsible for the color change so the color effect can be used while the light is dimming or set to strobe.
- The 3-channel DMX profile allows you to control the brightness, strobe, and color
- Strobe is selectable from 0 to 16 Hz
- A grasping handle on the back allows you to guide the beam of light where you want it to go, while the manual iris control knob is mounted on the top of the fixture. The manual zoom knob is mounted along the side of the fixture.
- The fixture is fuse protected from overload, and it runs on AC power (either 60 or 50 Hz). The fixture features a power on/off switch and includes an AC power cord.
UPC: 781462215569 In the Box CHAUVET DJ LED Followspot 120ST Fixture Tripod Removable Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ LED Followspot 120ST Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ LED Followspot 120ST Specs | Light Source | 1 x cool white LED; 120 W, 30.6 A | | Life Expectancy | 50,000 hours | | Illuminance | 14°: 16,060 lux @ 6.6' / 2.0 m
20°: 7,900 lux @ 6.6' / 2.0 m | | Colors | 7 x Colors: orange, cyan, red, green, magenta, yellow, and white (warm or cool) | | Zoom Angle | 14 to 20° (manual zoom) | | Iris | 5° at tightest zoom | | Focus | Manual | | Strobe Rate | 0 to 16 Hz | | Dimming | Local and DMX dimming | | DMX Connectors | Input: XLR 3-pin
Output: XLR 3-pin | | DMX Channel Modes | 1 x Mode: 3 channels | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: IEC | | Power Consumption | 185 W, 1.5 A @ 120 V, 60 Hz
176 W, 0.8 A @ 230 V, 50 Hz | | Fuse | 3 A, 250 V | | Approvals | CE | | Dimensions | 22.9 x 11.0 x 13.4" / 582 x 279 x 341 mm | | | | Package Weight | 33.0 lb | | Box Dimensions (LxWxH) | 27.0 x 19.0 x 15.0" |
