Product description - LED Followspot 75ST by CHAUVET DJ
The Chauvet LED Followspot 75ST is designed for live entertainment situations such as DJing, concerts, night clubs and other venues. The spotlight features a 75-watt white LED that casts a focused hard-edged beam to illuminate your subject. The unit features an electronic strobe with no moving parts for silent operation and LED dimming between 0 and 100% that enables smooth professional fades. A mechanical iris allows you to adjust the diameter of the beam, and a single gobo slot enables you to project patterns onto any surface. You can even make your own gobos for custom effects.

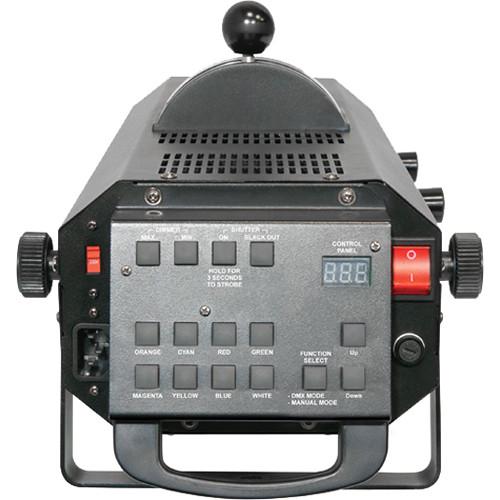

The back control panel of the unit features 7 push buttons for selecting dichroic colors (orange, cyan, red, green, magenta, blue) plus white. There are two buttons for changing the amount of dimming and two buttons for controlling the shutter, including the electronic strobe and blacking out the light. Function buttons allow you to switch between manual, DMX control, and master/slave mode. DMX in and out connectors enable three channels of programmable DMX control over the unit's dimmer, color, and strobe.

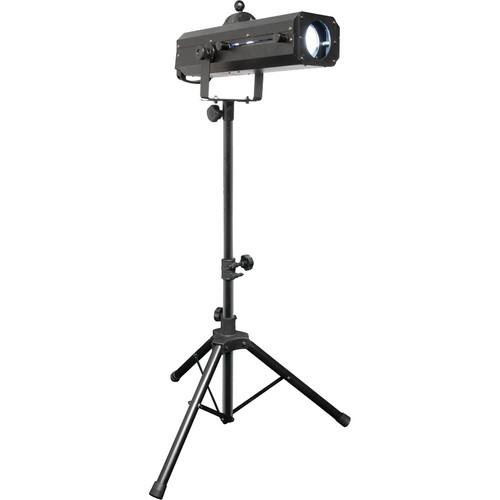

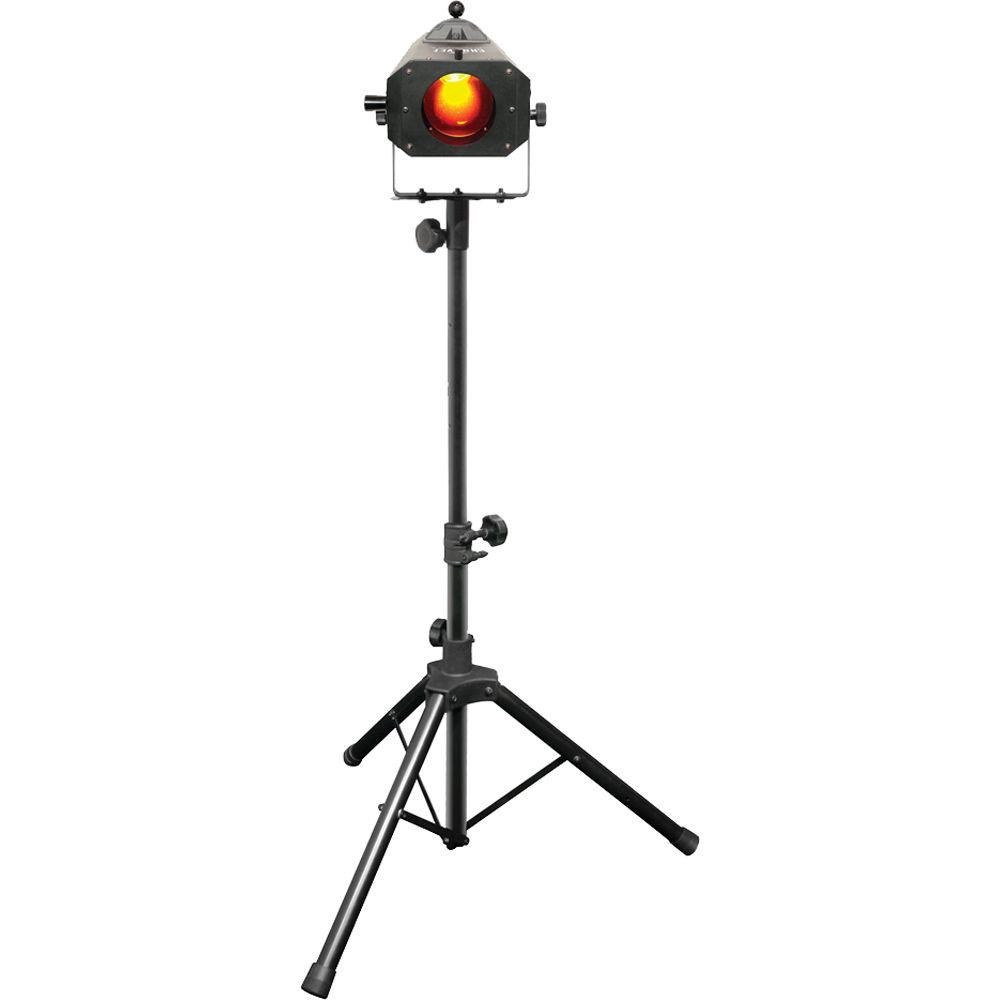

The spotlight's comes included with a tripod for freestanding operation, and the numerous control options enable you to design a laser effects display that complements your performance. UPC: 781462208554 In the Box CHAUVET DJ LED Followspot 75ST Power Cord Tripod Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ LED Followspot 75ST in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ LED Followspot 75ST Specs | DMX Channels | 3 | | DMX Connectors | 3-pin | | Color | 7 + white | | Gobo Size | 23.7 mm outside
21.3 mm image
1 mm max thickness | | Light Source | 1 x white 75 W LED at 18A rated for 50,000 hrs | | Strobe Rate | 0 to 16,000 Hz | | Angle | Zoom: 14 to 20°
Iris (minimum): 5° (at tightest zoom) | | Illuminance | 8,140 lux at 2 m at 14°
4,650 lux at 2 m at 20° | | Color Temperature | 6,500 to 7,500 K | | Input Voltage | 120/230 VAC at 50/60 Hz | | Power Consumption | 215 W at 1.8A at 120 V at 60 Hz
220 W at 1 A at 230 V at 50 Hz | | Approvals | CE, MET | | Stand Height | 2.8 to 3.8' (0.8 to 1.2 m) | | Fits On | Tripod Sizes: 1.25" (33 mm) | | Dimensions (L x H x W) | 22.0 x 10.8 x 11.5 (560 x 276 x 292 mm) | | Weight | 13.3 lb (6.03 kg) | | | | Package Weight | 31.0 lb | | Box Dimensions (LxWxH) | 26.38 x 18.5 x 15.35" |
