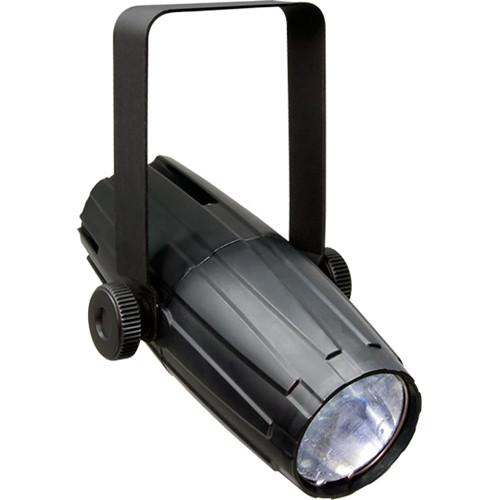

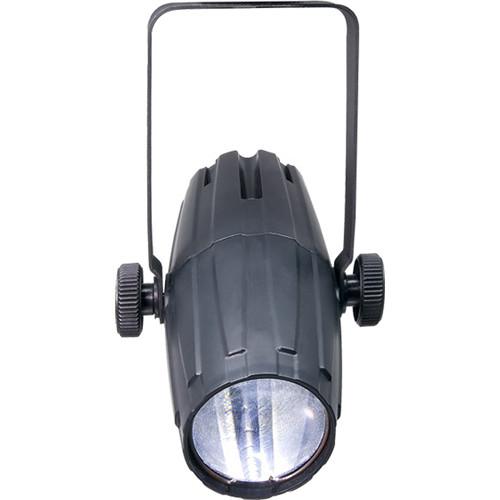

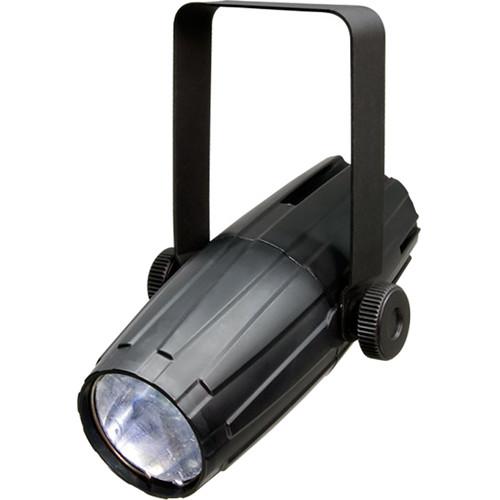

Product description The CHAUVET DJ LED Pinspot 2 is a spotlight fixture with a bright, 3W, white LED light source. It includes two front-focal lens options, which produce 6° and 9° hard-edge beams, ideal for shining on a mirror ball, lighting centerpieces, cake tables, buffets, floral arrangements, or accenting any object in a venue.The LED Pinspot 2 comes with four color gels (red, green, blue, yellow), which enable you to change colors to best fit your lighting design. Compact and lightweight (at 0.9 lb), the fixture can be easily mounted in any safe position, using the built-in hanging bracket and an appropriate C- or O-type clamp (available separately). -
- Hard-edged, 3W white LED spot light (6500K)
- Pinspot fixture for tables, mirror balls, effects
- Compact and lightweight (at 0.9 lb)
- Alter the beam angle using two front-focal lens options – 6° beam angle (installed lens), 9° beam angle (with included lens)
- Change color with the included color gels – red, green, blue, yellow

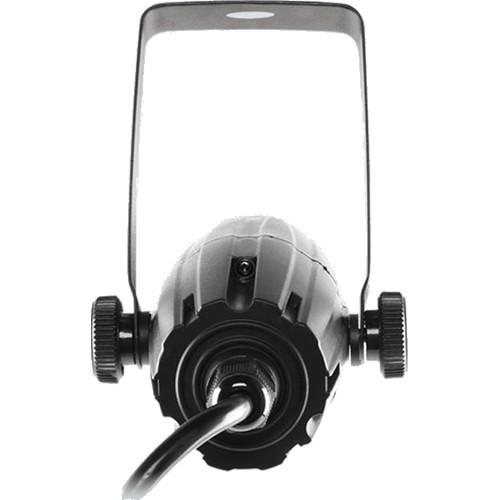

- Built-in mounting bracket
- 6-hour duty cycle
- Universal auto-ranging power supply (100-240 VAC, 50/60 Hz)
UPC: 781462204310 In the Box CHAUVET DJ LED Pinspot 2 - 3W White LED Spot Light 9° Lens 4-Pack Gels Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ LED Pinspot 2 - 3W White LED Spot Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ LED Pinspot 2 Specs | Light Source | 1 x 3 W white LED, (700 mA, 6500 K) | | Life Expectancy | 50,000 hours | | Beam Angle | 6° (installed lens)
9° (included lens) | | Illuminance | With 6° Lens: 4120 lux @ 6.6' / 2 m
With 9° Lens: 1335 lux @ 6.6' / 2 m | | Colors | White
Gels: Red, green, blue, yellow (included) | | Run Time | Up to 6 hours | | Approvals | CE | | Maximum Operating Temperature | 104°F / 40°C | | Input Voltage | 100-240 VAC, 50/60 Hz (auto-ranging) | | Power Consumption | 4 W, 0.1 A at 120 VAC, 60 Hz
4 W, 0.1 A at 230 VAC, 50 Hz | | Dimensions | 7.6 x 4.2 x 5.9" / 19.3 x 10.6 x 14.9 cm | | Weight | 0.9 lb / 0.4 kg | | | | Package Weight | 1.39 lb | | Box Dimensions (LxWxH) | 9.5 x 5.3 x 3.7" |
