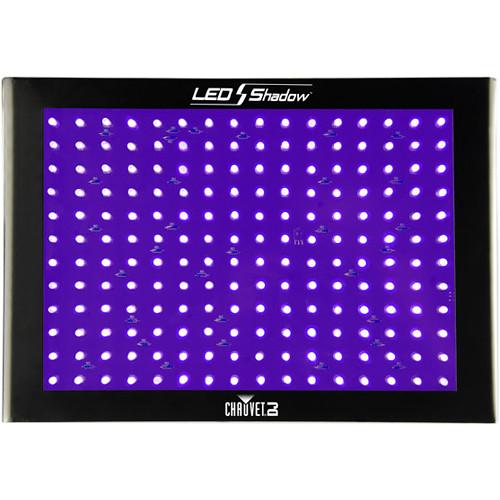

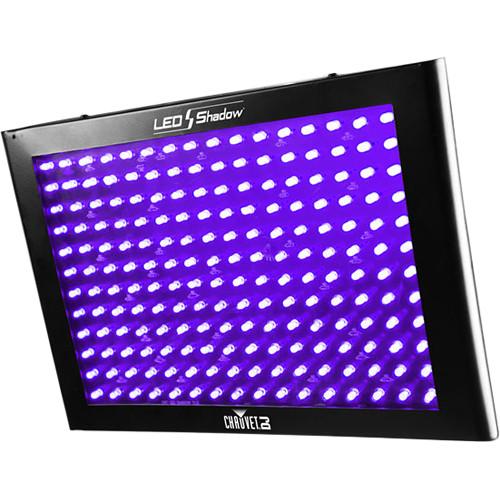

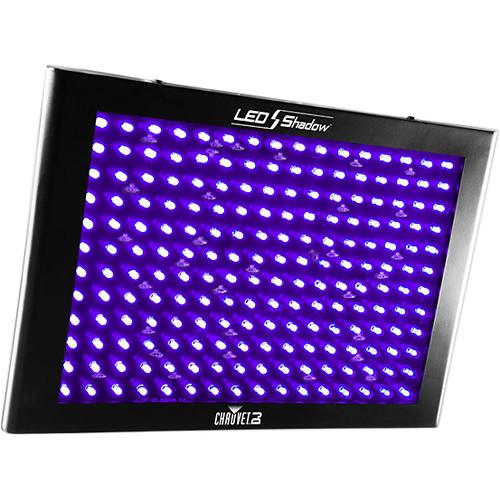

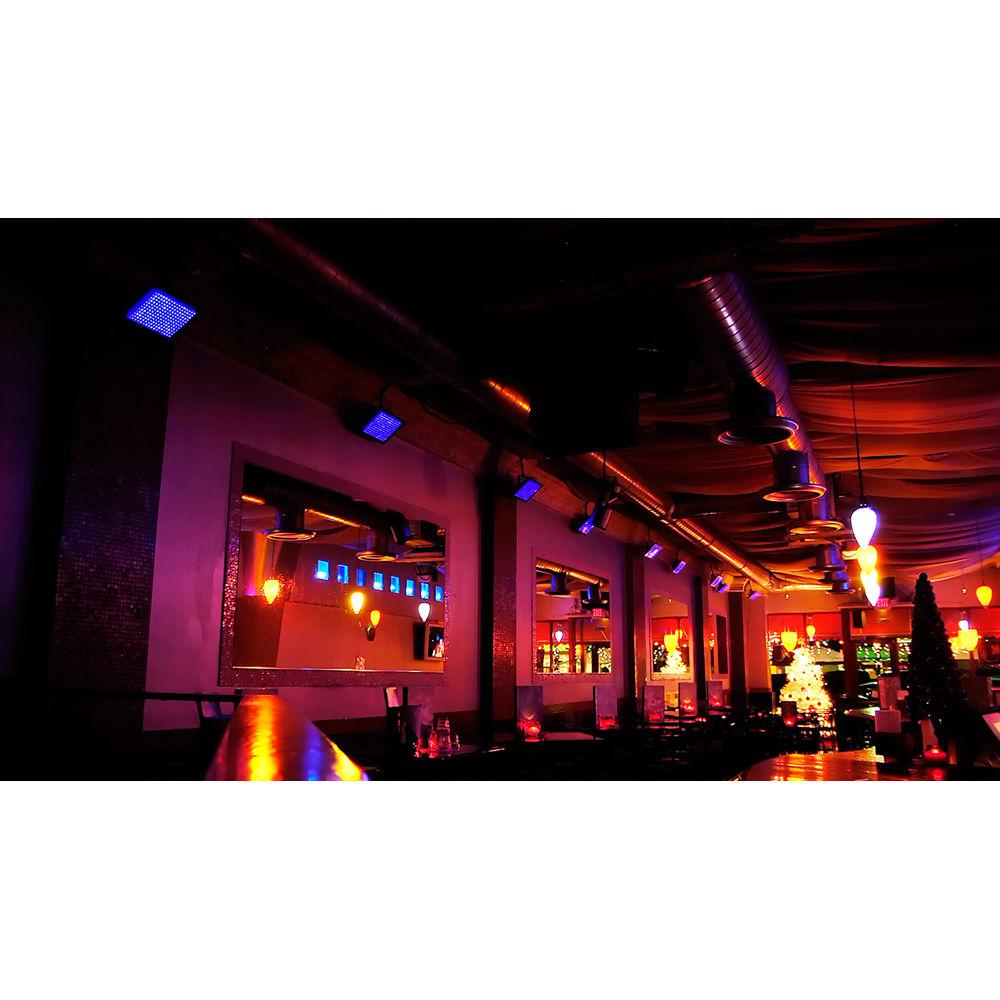

Product description The CHAUVET DJ LED Shadow is a blacklight LED panel designed to create wide ultraviolet color washes. Use to enhance the appearance of white or fluorescent colors with a supernatural glow. It is well suited for clubs, performance stages, theatrical productions, and special-effects installations.The LED Shadow features 192, UV (ultraviolet) LEDs with a wide, 28° coverage angle. It is equipped with mounting brackets, which can be adjusted to help achieve the desired position when mounting the fixture on walls, ceilings, or on the ground for wall washing.Easy to use, the LED Shadow can operate in standalone mode with eye-catching programs such as Sound-Active, variable-strobe, and dimming. It can also be controlled via DMX or wirelessly with the IRC-6 remote (available separately). The Master/Slave mode enables you to synchronize multiple fixtures without the need for a controller.The unit features an LED display with a 4-button menu for easy navigation and an auto-ranging universal power supply. You can also daisy-chain power for up to 43 fixtures at 120V, or 74 fixtures at 230V. - Key Features
-
- Black light panel with 192 UV LEDs for wide ultraviolet color washes
- Ideal for performance stages, theatrical productions, and special effects installations
- 28° coverage angle
- 0-100% dimming
- Strobe effect
- Dimensions (L x W x H): 14.0 x 9.8 x 6.5"
- Auto-run, sound active, UV dimmer, built-in program, DMX-controlled
- Easily adjust flash rate, dimmer, and static effects in standalone mode
- Master/Slave operation
- Daisy-chain power for up to 43 fixtures at 120V
- 4-button LED display on rear panel
- Compatible with IRC-6 wireless remote (available separately)
- Universal auto-ranging power supply
- Includes hanging bracket with mounting hardware to hang fixture on truss or mount on a wall
UPC: 781462214333 In the Box CHAUVET DJ LED Shadow - Black Light LED Panel Wash Power Cord Hanging Bracket with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ LED Shadow - Black Light LED Panel Wash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ LED Shadow Specs | Light Source | 192 x UV LEDs (ultraviolet)
Power: 0.25 W
Current: 20 mA | | Life Expectancy | 100,000 hours | | Wavelength | 405 nm | | Coverage Angle | 28° | | DMX Channel Modes | 3 | | DMX Connectors | Input: XLR 3-pin
Output: XLR 3-pin | | Dimming | 0-100%, electronic | | Operation Modes | Strobe (variable)
Sound-Active
Auto Programs
Master/Slave
Standalone
DMX | | Wireless Control | IRC-6 Remote (available separately) | | Input Voltage Range | 100-240 VAC, 50/60 Hz; auto-ranging | | Power Connectors | Input: IEC
Output: Edison | | Power Linking | 43 units at 120 V, 60 Hz
74 units at 230 V, 50 Hz | | Power Consumption | 12 W at 120 V, 60 Hz
11 W at 230 V, 50 Hz | | Operating Current | 0.1 A | | Fuse | F 1 A, 250 V | | Maximum Temperature | External: 104°F (40°C) | | Cooling System | Convection | | Approvals | CE, RoHS | | Dimensions (L x W x H) | 14. x 9.8 x 6.5" (356 x 248 x 165 mm) | | Weight | 4.9 lb (2.2 kg) | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 16.0 x 11.66 x 4.5" |
