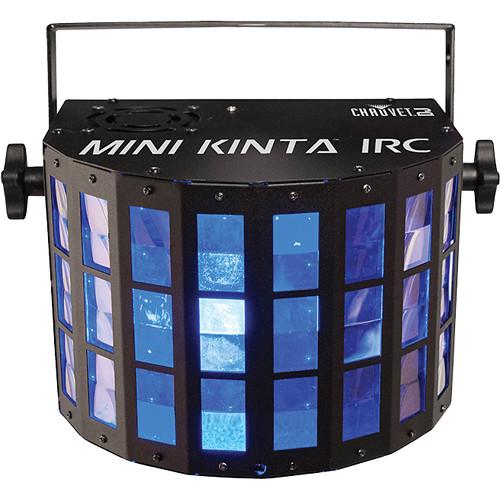

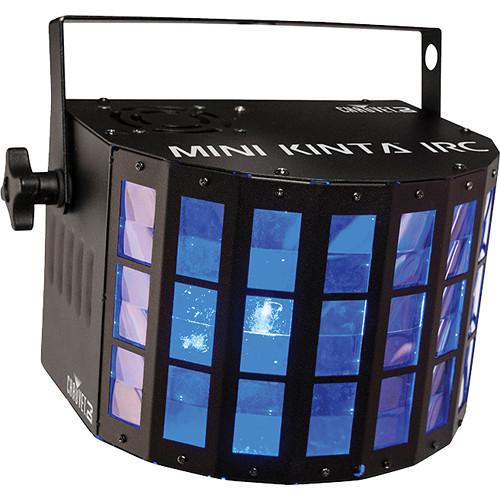

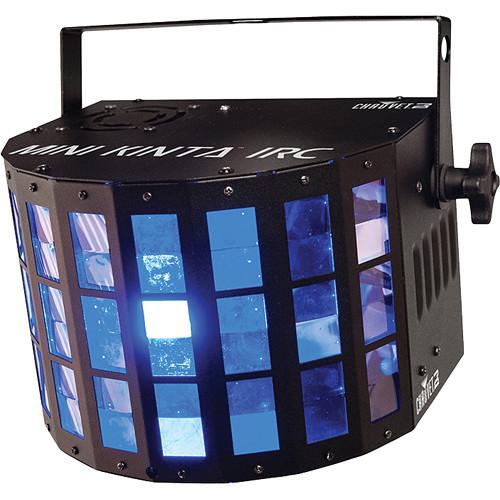

User Manual for CHAUVET DJ Mini Kinta IRC LED Effect Light Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Mini Kinta IRC LED
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ Mini Kinta IRC LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|
Product description The Mini Kinta IRC LED Effect Light is a compact RGBW fixture with a host of features aimed at adding visual excitement to clubs, parties and other entertainment venues. The fixtures wide 114 degree beam angle allows the Mini Kinta to bathe a large area with multi-colored light pumped through its 48 lens housing. The light offers DMX control of RGBW light output, strobing, auto sound activation and motor rotation speed. It's also compatible with the optional IRC-6 IR wireless remote which offers simple non-DMX control at distances up to 15'. Since the Mini-Kinta draws so little power it's possible to avoid a tangle of power cables by power-linking (daisy-chaining) up to 29 units at 120 V and 53 units at 230 V. The task is made easier still by the light's minimal weight of just 3.4 lb despite its all-metal housing. - Attributes
-
- Simple wireless, non-DMX control from optional IRC-6 remote
- Compact LED effect light projects countless beams of multicolor light
- Projects bright, colorful beams using high-power red, green, blue, and white LEDs
- Trigger built-in automated and sound-activated programs in Master/Slave or DMX mode
- Fills the room with eye-catching effects via 48 lenses
- Match the mood at any event by controlling the motor speed in DMX mode
- Save time running cables and extension cords by power linking multiple units
- Rugged metal housing made for mobile gigs
- Fits best in the optional CHS-30 VIP Gear Bag
UPC: 781462212988 In the Box CHAUVET DJ Mini Kinta IRC LED Effect Light Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Mini Kinta IRC LED Effect Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

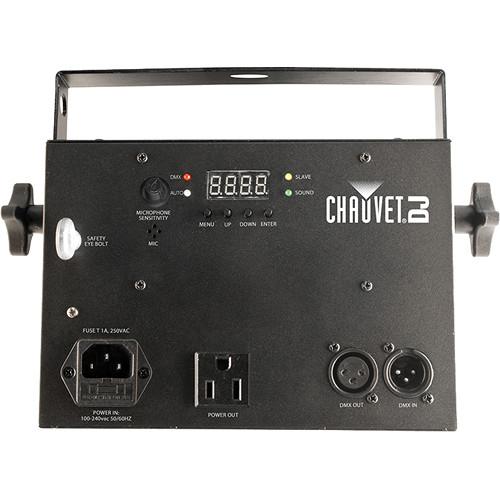

Technical parametersCHAUVET DJ Mini Kinta IRC Specs | DMX Channels | 4 Channel Modes: RGBW, Strobe, Motor Rotation, Auto Sound | | DMX Connectors | 3-Pin XLR in/out | | Light Source | 4 LEDs 1 red, 1 green, 1 blue, 1 white; 3.0 W, 680 mA, 50,000 hr life expectancy
48 Lenses in housing | | Coverage Angle | 114° | | Power Linking | 29 units @ 120 V
53 units @ 230 V | | Input Voltage | Auto-ranging 100-240 VAC, 50/60 Hz | | Power and Current | 19 W, 0.3 A @ 120 V, 60 Hz
18 W, 0.2 A @ 230 V, 50 Hz | | Approvals | CE | | Dimensions (H x W x D) | 7.2 x 10.1 x 7.5" (182 x 258 x 190 mm) | | Weight | 3.4 lb (1.6 kg) | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 12.5 x 10.6 x 8.2" |
