User Manual for CHAUVET DJ MotionDrape LED Backdrop Lighting Effect Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ MotionDrape LED Backdrop Lighting
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ MotionDrape LED Backdrop Lighting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

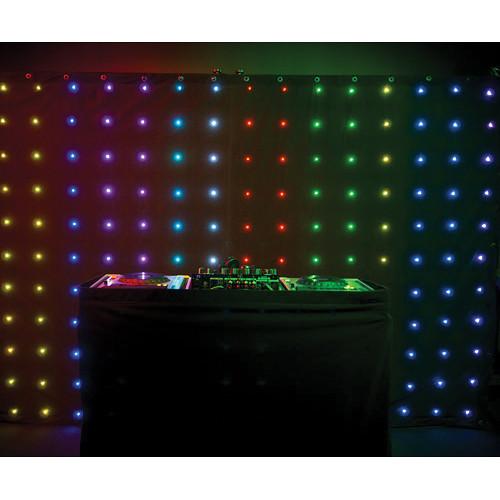

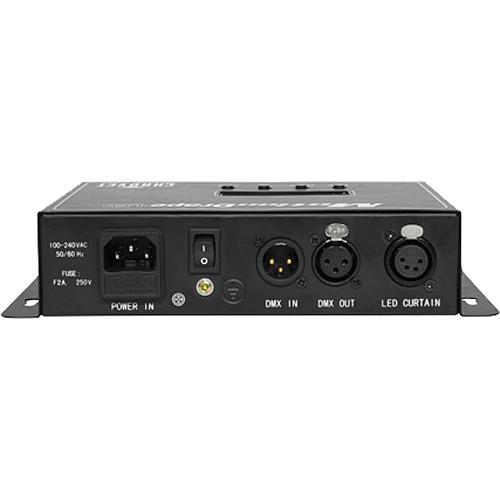

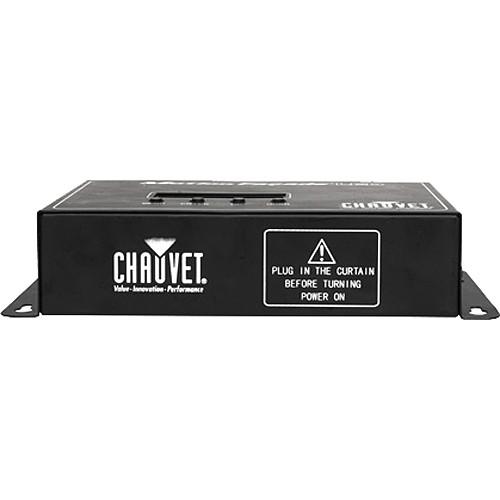

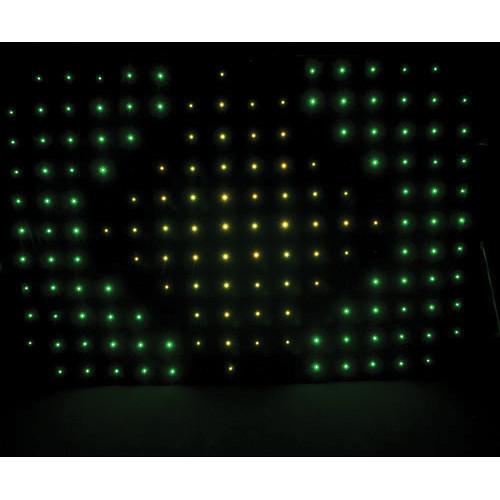

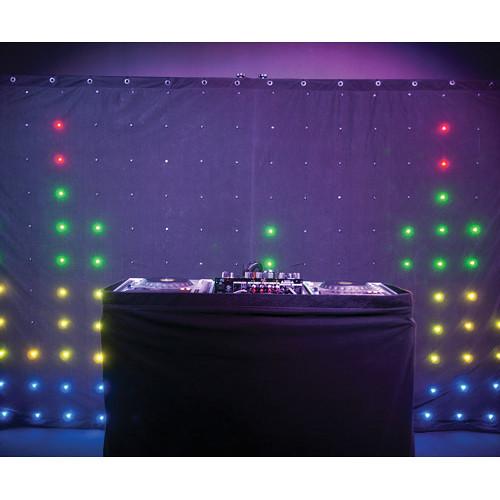

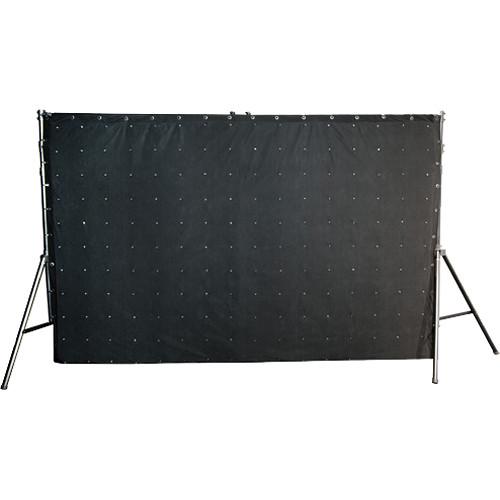

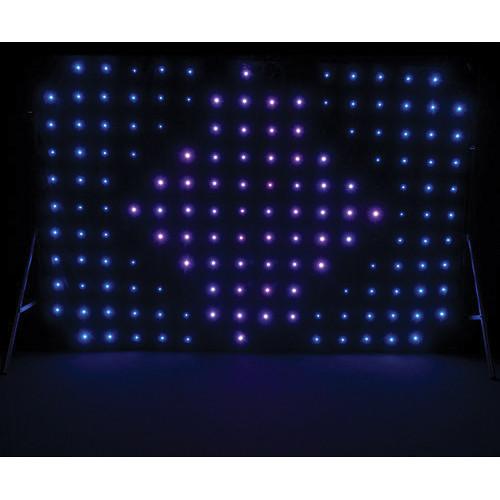

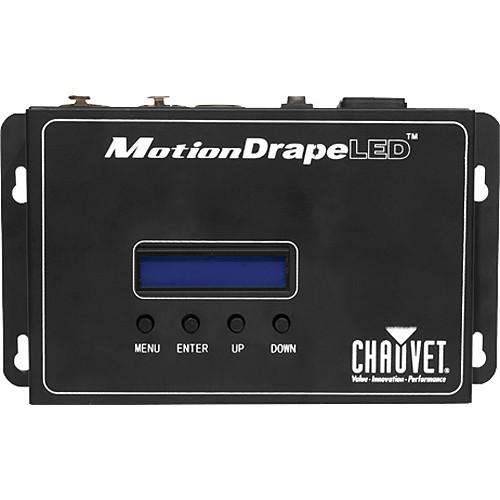

Product description The MotionDrape LED from Chauvet is a truss-mountable backdrop that offers motion graphics lighting effects to DJs, bands, clubs, stages and others. In addition to the drape it comes with the MotionDrape controller, replacement LEDs and a carrying bag. The 6.6 x 9.8' drape is equipped with 176 tri-color SMD LEDs and is capable of displaying 30 animated effects, including a rain effect and a graphic EQ pattern. It also features RGB color-mixing capability as well as eight channels of DMX control for maximum flexibility and control. In addition, the MotionDrape LED can be triggered without the use of DMX by utilizing its built-in sound-activated mode. - Manufactured with certified fire-retardant material
- Easily mount to truss using built-in grommets

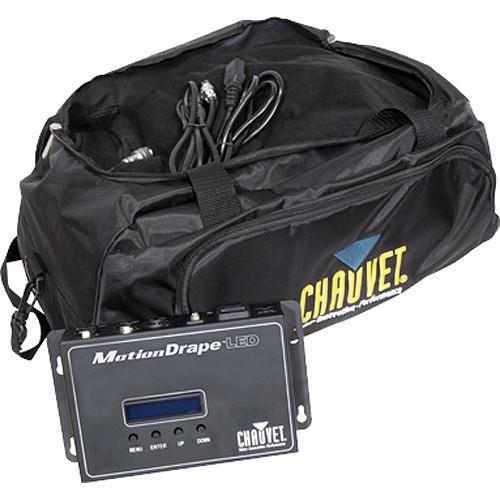

UPC: 781462207403 In the Box CHAUVET DJ MotionDrape LED Backdrop Lighting Effect MotionDrape LED MotionDrape Controller Power Cord Signal Cable Carrying Bag Replacement LEDs Reusable Zip Ties (Tie Wraps) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ MotionDrape LED Backdrop Lighting Effect in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ MotionDrape LED Specs | DMX Channels | 8 | | Connectors | 3-pin | | Light Source | 176 (tri-color) SMD (20 mA) LEDs 50,000 hrs | | Input Voltage | Auto-ranging 100 - 240 VAC 50/60 Hz | | Power | 51 W, 0.4 A @ 120 V 60 Hz
54 W, 0.2 A @ 230 V 50 Hz | | Dimensions | Controller: 5.3 x 9.6 x 2" (135 x 243 x 50 mm)
Drape: 6.6 x 9.8' (2 x 3 m) | | Weight | Controller: 1.8 lb (0.8 kg)
Drape: 9.8 lb (4.4 kg) | | | | Package Weight | 15.3 lb | | Box Dimensions (LxWxH) | 19.8 x 12.4 x 9.9" |
