User Manual for CHAUVET DJ Nimbus Dry Ice Machine with Power Cord Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Nimbus Dry Ice Machine
- Product category: Fog & Haze Machines CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ Fog & Haze Machines
 |
User manual for the CHAUVET DJ Nimbus Dry Ice Machine contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

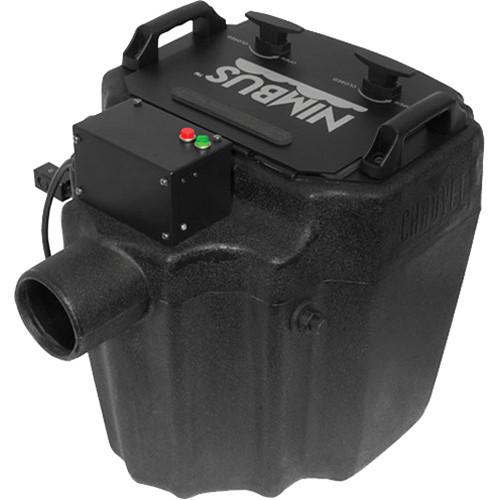

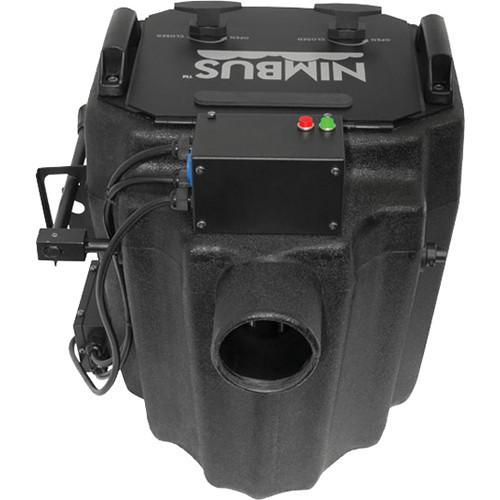

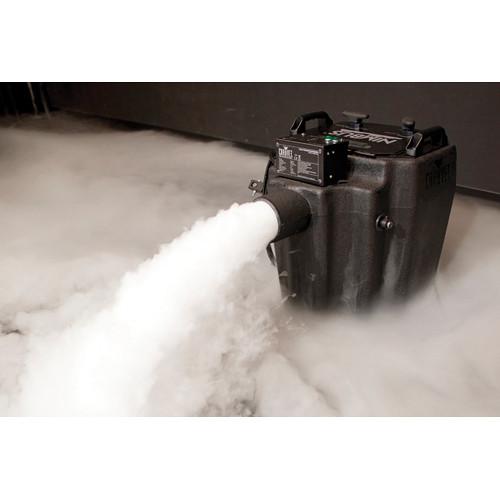

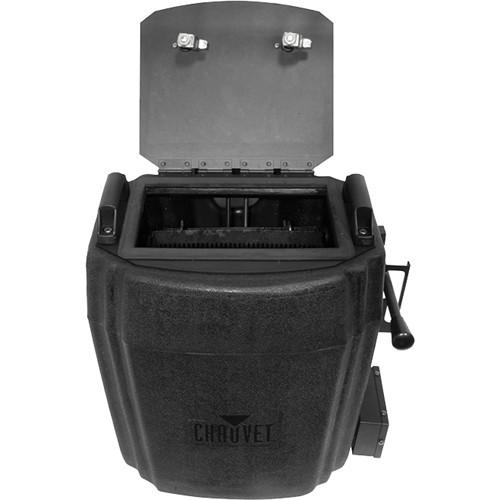

Product description The CHAUVET Nimbus Dry Ice Machine with Power Cord is designed for live performance applications such as for the theater or DJing. Simply fill the container with approximately 4.5 gallons of water, add up to 10 lb of dry ice, plug the unit into any standard wall outlet, and the device is ready to produce the dancing on a cloud effect in 50 minutes time. A second power cord is included with the unit which can be connected to engage a second heating element and reduce the heat-up time to only 30 minutes. This may require a separate power breaker to operate in dual-element mode.
The output and flow of the cloud effect can be controlled using the multi-level control handle with a run time of approximately 6 minutes. The average reheat time is 30 minutes in single heating element mode and 15 minutes in dual heating element mode. Low-water and temperature sensors will automatically shut down the heating elements to protect the device. - Creates a thick white cloud that hugs the floor
- Plug-n-play operation heats water to optimal operating temperature
- Ready to cloud in 50 minutes with single heating element mode, 30 minutes with dual heating element
- Manipulate the output and flow with the adjustable multi-level control handle
- Increase safety with low-water and temperature sensors that automatically shut off heaters
UPC: 781462207816 In the Box CHAUVET DJ Nimbus Dry Ice Machine with Power Cord Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Nimbus Dry Ice Machine with Power Cord in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Nimbus Specs | Input Voltage | 120 VAC 60 Hz | | Power and Current | Single element: 1,500 W, 12.6 A @ 120 V 60 Hz
Dual element: 3,000 W, 25.2 A @ 120 V 60 Hz | | Capacity | Tank: 4.5 gallons (17 liters)
Dry Ice : 10.0 lb (2.3 kg) | | Time | Single element heat-up: 50 minutes
Dual element heat up: 30 minutes
Reheat time single element: 30 minutes
Reheat time dual element: 15 minutes | | Run Time | Average: 6 minutes | | Temperature | Water: Maximum 175°F (79°C) | | Approvals | CE, MET | | Dimensions | 20.0 x 18.0 x 19.0" (513 x 465 x 470 mm) | | Weight | Empty: 28.6 lb (13 kg)
Full: 75.0 lb (34 kg) | | | | Package Weight | 42.35 lb | | Box Dimensions (LxWxH) | 23.78 x 22.52 x 22.284" |
