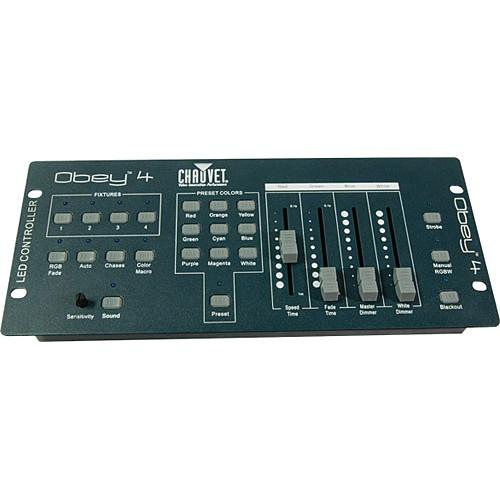

User Manual for CHAUVET DJ Obey 4 DMX Channel Controller Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Obey 4 DMX Channel
- Product category: Lighting Consoles & Controllers CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ Lighting Consoles & Controllers
|
User manual for the CHAUVET DJ Obey 4 DMX Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|
Product description What You Need to Know When Working with DMX Read More Chauvet's Obey 4 DMX Channel Controller (100-240 VAC) is a compact controller that's ideal for LED wash lights with 3- or 4-channel modes. Red, green, blue and white/amber channels are available for simple color-mixing control. The Obey 4 can control fixtures in 4 different zones independently of each other with one-touch buttons for pre-mixed colors, built-in chases and strobe and dimmer controls--it's great for anyone looking for an easy-to-learn way to control LED washes. The Obey 4 has built-in automated, sound-activated and manual playback options. Supplied for use with 100-240 VAC. - Compact DMX-512 controller for LED fixtures (up to 4 channels):
Channel 1: red
Channel 2: green
Channel 3: blue
Channel 4: white (or amber) - Controls up to 4 separate fixtures
- Each fixture can be in different playback modes simultaneously
- Playback options include automated, sound-activated or manual RGBW
- Playback modes:
Preset: 9 built-in colors
Chases: manually trigger automated programs
Color macro: manually scroll through the color spectrum
RGB fade: automatically scroll through the color spectrum
RGB fade delay: automatically scroll through the color spectrum with a small delay to each fixture
Auto: randomly selects different colors for each fixture - Variable fade times for all playback modes
- Variable strobing on the fly
- Adjustable blackout allows fixtures to fade in and out
- Adjustable audio sensitivity
UPC: 781462205621 In the Box CHAUVET DJ Obey 4 DMX Channel Controller Power Supply User Manual 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Obey 4 DMX Channel Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ OBEY 4 Specs | Power | Power: 12 VDC 500 mA (external power supply: 100-240 VAC, 50/60 Hz | | DMX Channel Modes | 1, 2, 3, 4 | | DMX Connectors | 3-Pin XLR | | Dimensions | 12.8 x 5.5 x 2.1" (32.5 x 14 x 5.2 cm) | | Weight | 3.0 lb (1.4 kg) | | | | Package Weight | 3.725 lb | | Box Dimensions (LxWxH) | 16.6 x 7.65 x 4.4" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
