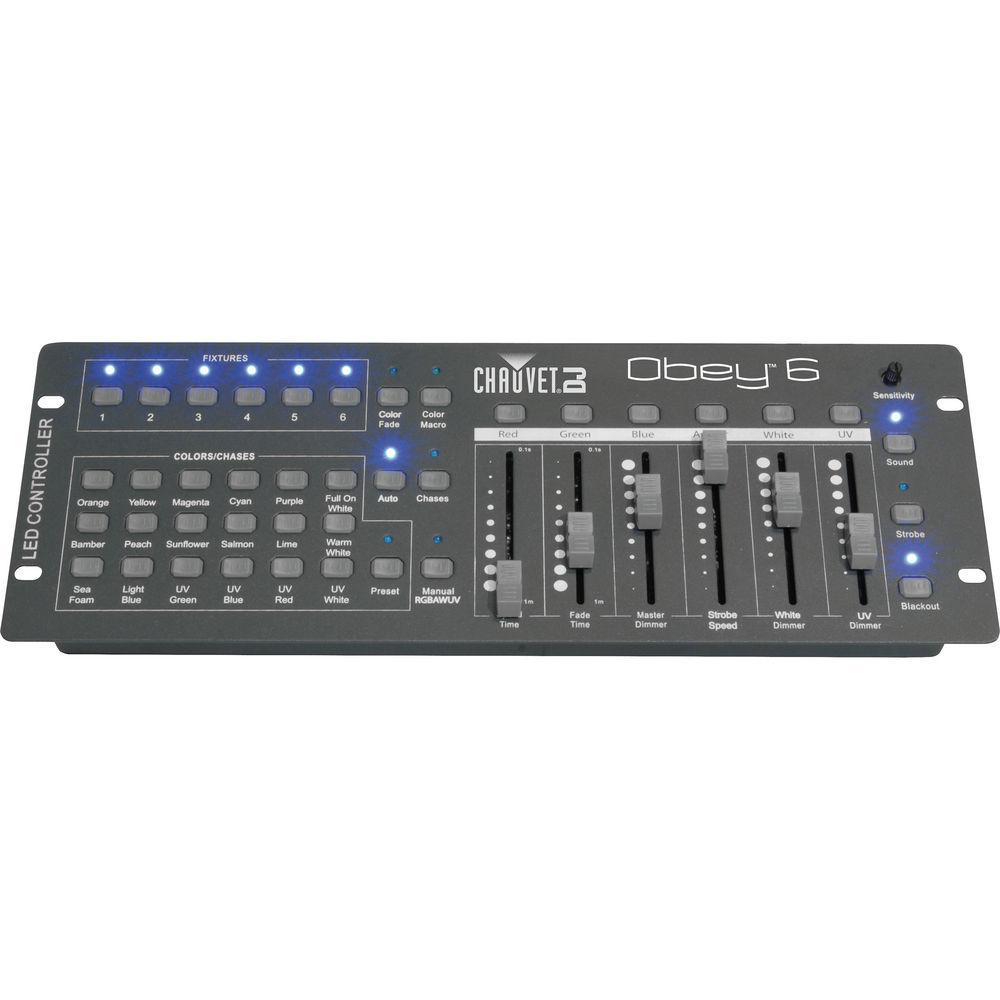

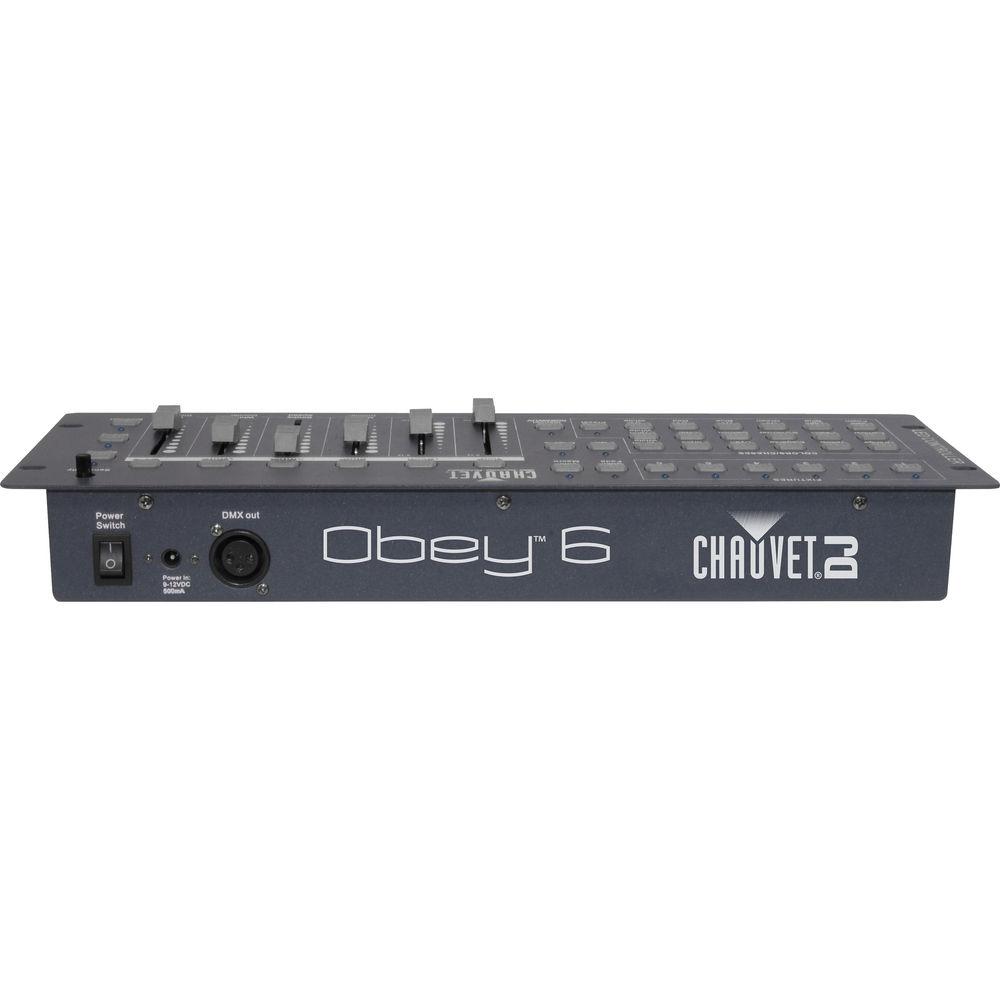

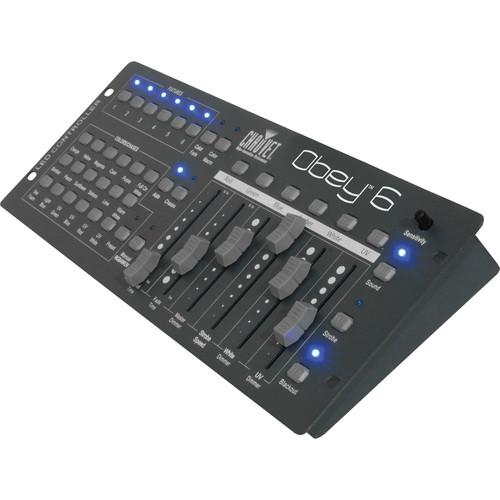

User Manual for CHAUVET DJ Obey 6 Compact Controller Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Obey 6 Compact Controller
- Product category: Lighting Consoles & Controllers CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ Lighting Consoles & Controllers
 |
User manual for the CHAUVET DJ Obey 6 Compact Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|
Product description What You Need to Know When Working with DMX Read More The Obey 6 Compact Controller from Chauvet is a universal controller capable of controlling 6 fixtures individually with up to 6 channels per fixture. It allows you to control effects by simultaneously operating each fixture in different playback modes with variable fade times. Increase flexibility with playback options that include manual RGBAW+UV, automated and sound-activated modes. Increase control with adjustable audio sensitivity, strobe, and blackout effects. - Attributes
-
- Universal compact DMX-512 controller well-suited to LED fixtures
- Controls up to 6 fixtures individually with up to 6 channels per fixture
- Pre-set color buttons let you quickly and effortlessly select colors on the fly
- Quick Color buttons allow you to easily add layered effects
- Increase effects by simultaneously operating each fixture in different playback modes with variable fade times
- Increase flexibility with playback options that include manual RGBAW+UV, automated and sound-activated mode
- Playback options include:
- Preset: 24 built-in colors
- Chases: 18 manually triggered automated programs
- Color macro: manually scroll through the color spectrum
- Color fade: automatically scroll through the color spectrum
- Color fade delay: automatically scroll through the color spectrum with a small delay to each fixture
- Auto: randomly selects different colors for each fixture
- Increase control with adjustable audio sensitivity, strobe, and blackout effects
- Optional CHS-25 VIP Gear Bag
UPC: 781462211073 In the Box CHAUVET DJ Obey 6 Compact Controller Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Obey 6 Compact Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ OBEY6 Specs | DMX Channels | 36 | | DMX Connectors | 3-Pin XLR | | Input Voltage | 9 VDC, external power supply: 100 - 240 VAC, 50/60 Hz | | Approvals | CE | | Dimensions | 15.5 x 5.5 x 1.9" (393 x 140 x 48 mm) | | Weight | 3.8 lb (1.72 kg) | | | | Package Weight | 4.44 lb | | Box Dimensions (LxWxH) | 19.0 x 7.6 x 4.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
