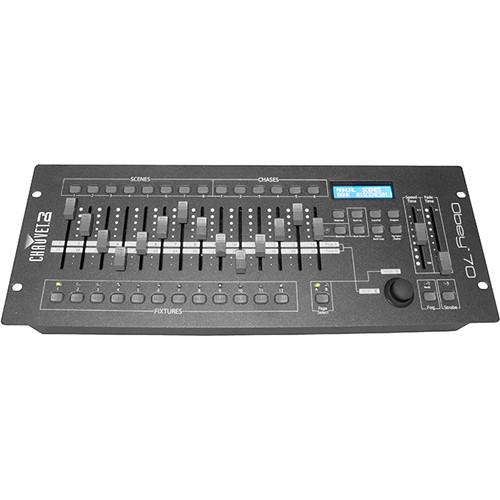

User Manual for CHAUVET DJ Obey 70 Universal DMX-512 Controller Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Obey 70 Universal DMX-512
- Product category: Lighting Consoles & Controllers CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ Lighting Consoles & Controllers
|
User manual for the CHAUVET DJ Obey 70 Universal DMX-512 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|
Product description What You Need to Know When Working with DMX Read More The Chauvet Obey 70 Universal DMX-512 Controller is a 4RU rack-mountable lighting controller. It can control up to 12 DMX-enabled lighting fixtures with up to 16 DMX channels of control per fixture. It can also control DMX enabled strobes and fog machines using dedicated buttons, a 1/4" connector for strobes, and a 5-pin connector for fog machines. The LED button on the strobe button will flash at the same rate as the strobe. It also features a tap-sync button and beat activation for coordinating the lighting to the music.
The device features 14 reversible faders, a speed time fader, a fade time fader, and an assignable pressure sensitive joystick for programming lighting shows. It can store up to 6 sets of sequentially linkable light chases, each with up to 240 scenes over 384 channels of DMX control. An LCD display provides visual feedback for operating the device. The unit is also MIDI compatible for programming shows using a computer and a MIDI interface or triggering changes using external MIDI devices. - Reversible Faders
- Provides variable control of lighting parameters such as dimming
- Pressure Sensitive Joystick
- Enables variable parameter assignments to different DMX-enabled lighting fixtures
- Bank Buttons
- Enables selection of 6 sets of chases containing 240 scenes
- Tap-Sync Button
- Enables synchronizing the lighting display to the tempo of the music
- DMX Polarity Switch
- Enables use of the controller with fixtures that use a reversed DMX polarity
- Strobe Button
- Triggers strobing in strobe-capable DMX-enabled fixtures
- Fog Button
- Triggers DMX-enabled fog machines
- MIDI Connector
- Enables integration with MIDI software and external MIDI devices
UPC: 781462202897 In the Box CHAUVET DJ Obey 70 Universal DMX-512 Controller 12 VDC, 500 mA External Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Obey 70 Universal DMX-512 Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Obey 70 Specs | DMX Channels | 384 | | DMX Connectors | 3-pin XLR | | Refresh Rate | 25 Hz | | Power Requirements | 100 to 240 VAC 50/60 Hz | | Input Voltage | 9 VDC at 500 mA | | Power Consumption | < 1 W | | Operating Current Consumption | 0.2 A | | Approvals | CE | | Dimensions (L x W x H) | 19.0 x 7.0 x 2.8" (48.0 x 18.0 x 7.1 cm) | | Weight | 7.3 lb (3.3 kg) | | | | Package Weight | 7.7 lb | | Box Dimensions (LxWxH) | 22.5 x 8.9 x 5.6" |
