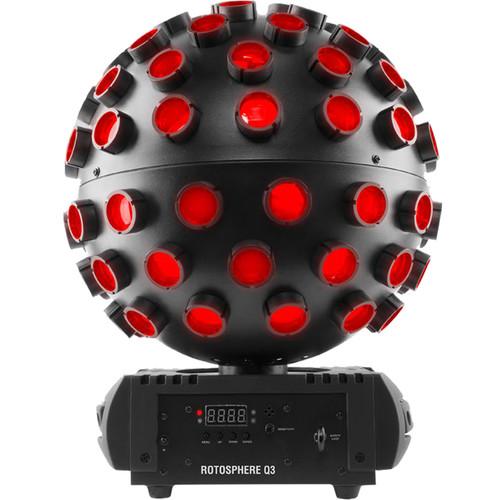

User Manual for CHAUVET DJ Rotosphere Q3 - RGBW LED Mirror Ball Simulator Effect with DMX Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Rotosphere Q3 - RGBW
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
|
User manual for the CHAUVET DJ Rotosphere Q3 - RGBW contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|
Product description The white CHAUVET DJ Rotosphere Q3 is a mirror ball simulator that emits multiple super-sharp, multicolor beams that react to sound or can be controlled by DMX. The light source consists of five 7W quad-color LEDs producing red, green, blue, and white that can be mixed to offer a wide palette of colors. Additionally, the Rotosphere operates with three zones, providing three separate colors simultaneously with 360° of coverage.The fixture can be mounted to the ceiling or placed on trussing and operates in auto-run, sound-active, or DMX control modes with 3, 9, or 19 channels. Additionally, the instrument may be controlled via the IRC-6 wireless infrared remote (available separately). A low power consumption of 46W allows for the daisy-chaining of up to 12 units from one 120V circuit. The Rotosphere Q3 ships with a hanging bracket and a standard IEC power cord. - Key Features
-
- Easy-to-use mirror ball simulator with high-power, quad-color RGBW (red, green, blue, white) LEDs
- 3 LED zones emit up to 3 different colors simultaneously
- Slow rotation speed creates a romantic atmosphere
- Digital display allows you to set a color and rotation speed without any controller
- Mount to truss with the included bracket or place on a stand as a centerpiece
- Generate eye-catching effects with sound-activated and automated programs
- Save time running cables and extension cords by power linking multiple units
- Easily control static colors and automated programs with the IRC-6 wireless remote (available separately)
- Includes hanging bracket with mounting hardware
UPC: 781462217815 In the Box CHAUVET DJ Rotosphere Q3 - RGBW LED Mirror Ball Simulator Effect with DMX (White) Hanging Bracket with Mounting Hardware IEC Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Rotosphere Q3 - RGBW LED Mirror Ball Simulator Effect with DMX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Rotosphere Q3 Specs | Light Source | 5 x LEDs (quad-color RGBW), 7 W (2.4 A) | | Life Expectancy | 50,000 hours | | Coverage Angle | 360° | | Rotation Speed | 2 to 19 rpm | | Shutter/Strobe | Electronic | | Strobe Rate | 0 to 20 Hz | | Color Mixing | RGBW | | Protocols | DMX | | DMX Connectors | Input: XLR 3-pin
Output: XLR 3-pin | | DMX Channel Modes | 3, 9, or 19 channels | | Built-In Programs | Yes | | Sound Active | Yes | | Master/Slave Support | Yes | | Remote Control Compatibility | IRC-6 (available separately) | | Input Voltage | 100-240 VAC, 50/60 Hz (auto-ranging) | | Power Linking | 120 VAC: 12 units
230 VAC: 21 units | | Power and Current | 120 V, 60 Hz: 46 W, 0.7 A
230 V, 50 Hz: 44 W, 0.4 A | | Approvals | CE | | Dimensions | 11.0 x 13.0 x 17.0" / 266 x 319 x 419 mm | | Weight | 8.6 lb / 3.9 kg |
