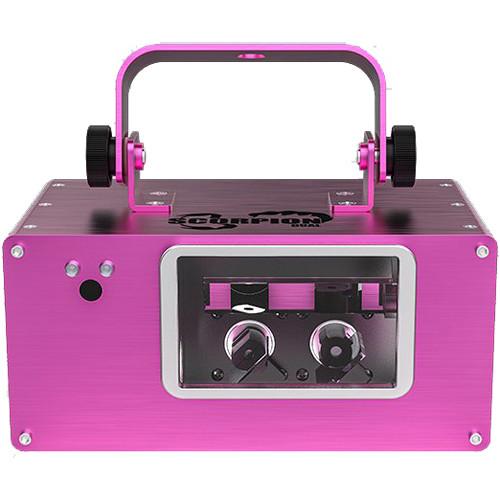

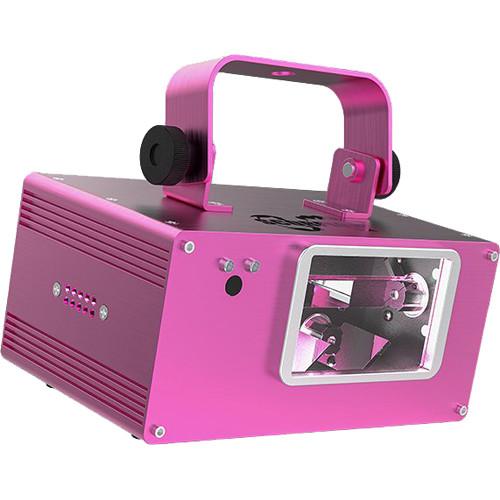

Product description The Chauvet DJ Scorpion Dual RGB is a dual red, green, and blue Fat Beam aerial effects laser that is well suited for applications with fog or haze effects, such as live stage, theater, or DJ setups. The dual mirror output works well as a centerpiece or side-accent when used in pairs. The Scorpion Dual RGB includes 32 built-in patterns, including the popular Laser Sky effect and can generate customized and perpetually changing laser shows using programmable pan, tilt, and zoom with separate X, Y, and Z rolling effects and scan/speed adjustment.The laser offers automatic, master/slave, and sound-activated modes for easy operation, while the manual 10-channel DMX mode provides custom programming for the more accurate and controlled show. Additionally, the Scorpion can be controlled wirelessly using the included IR remote control. The Chauvet DJ Scorpion Dual RGB includes a hanging bracket and ships with a power cord. -
- Dual RGB FAT BEAM aerial effect laser
- Works well with fog or haze
- Create remarkable color combinations by mixing red, green, and blue laser diodes
- Dual mirror output makes a great centerpiece or side accent in pairs
- 32 built-in patterns, including the popular Laser Sky effect
- Wireless control using the included IR remote
- Generate customized and ever-changing laser shows using programmable pan, tilt, and zoom effects with separate X, Y, and Z rolling effects and scan-speed adjustment
- Fully FDA compliant, variance-free and ready to use right out of the box
- Easily operate in automatic, master/slave, manual, or sound-activated mode
- Compatible with the CHS-40 VIP gear bag
UPC: 781462218904 In the Box CHAUVET DJ Scorpion Dual RGB FAT BEAM - Aerial Effect Laser Power Cord IRC-6 Infrared Remote Control 6 Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Scorpion Dual RGB FAT BEAM - Aerial Effect Laser in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

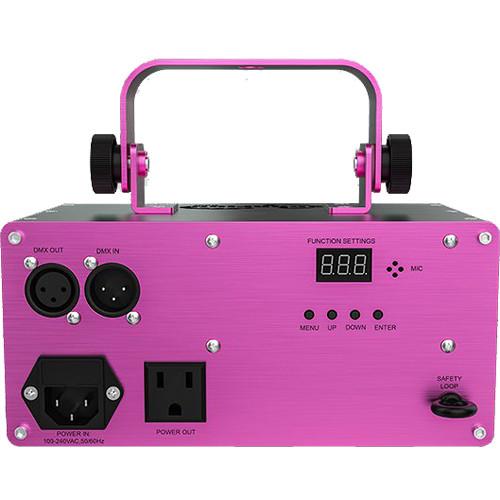

Technical parametersCHAUVET DJ Scorpion Dual RGB Specs | DMX Channels | 10 | | DMX Connectors | In/Out: 2 x 3-Pin XLR | | Pan/Tilt | 30°/30° (Variable) | | Light Source | Laser Diodes
638 nm / 30 mW (Red)
520 nm / 20 mW (Green)
450 nm / 50 mW (Blue) | | Strobe Rate | 0 to 27 Hz | | Coverage Angle | 36° | | Zoom | Angle: 1 to 29° | | Power Linking | 27 units at 120 V
48 units at 230 V | | Power | Input Voltage: 100 to 240 VAC, 50/60 Hz (Auto-Ranging)

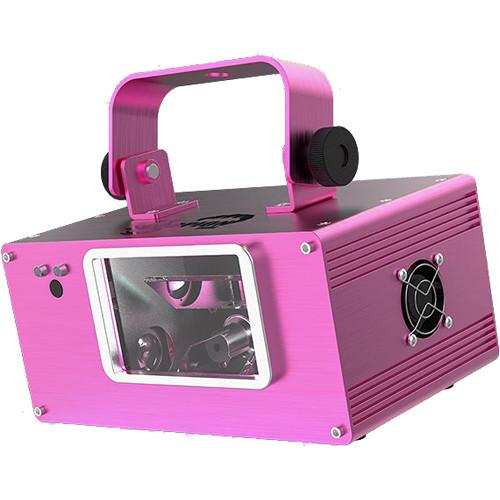

Power and Current: 20 W, 0.3 A at 120 V, 60 Hz; 19 W, 0.2 A at 230 V, 50 Hz | | Approvals | CE, FDA | | Classification | Classified per 21 CFR 1040.10 & .11 | | Standards | Complies with US FDA CDRH laser safety standards 21 CFR 1040.10 & 1040.11 | | Fuse | T 3.15 A, 250 V | | Cooling System | Fan-cooled | | Temperature | External: 104°F (40°C) maximum | | Power Connector | Input: IEC
Output: Edison
Cord Plug: Edison | | Compliance | RoHS | | Dimensions | 8.5 x 6.3 x 7.0" / 215.9 x 160.0 x 177.8 mm | | Weight | 3.8 lb / 1.7 kg | | | | Package Weight | 4.83 lb | | Box Dimensions (LxWxH) | 11.6 x 7.9 x 7.4" |
