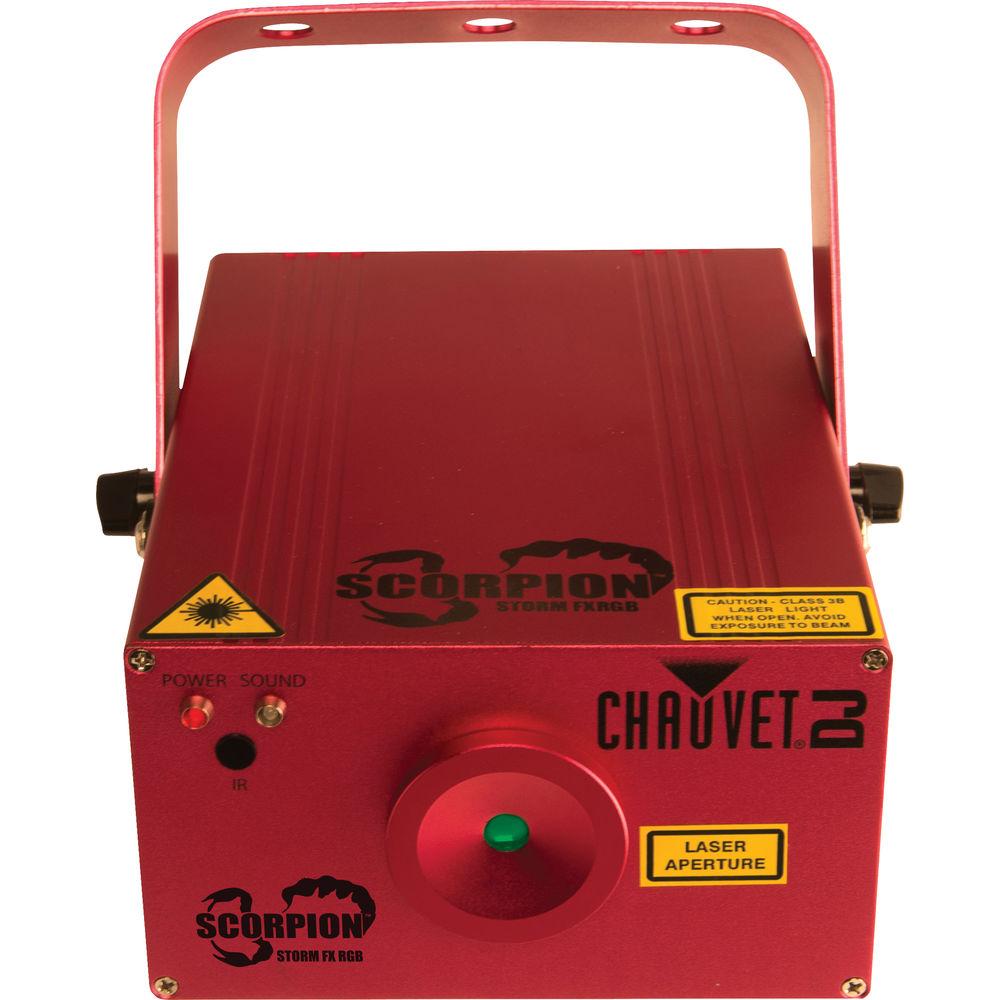

User Manual for CHAUVET DJ Scorpion Storm FX RGB Tri-Color Laser with Wireless Remote Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Scorpion Storm FX RGB
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ Scorpion Storm FX RGB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|
Product description - Scorpion STORM FX RGB by CHAUVET DJ

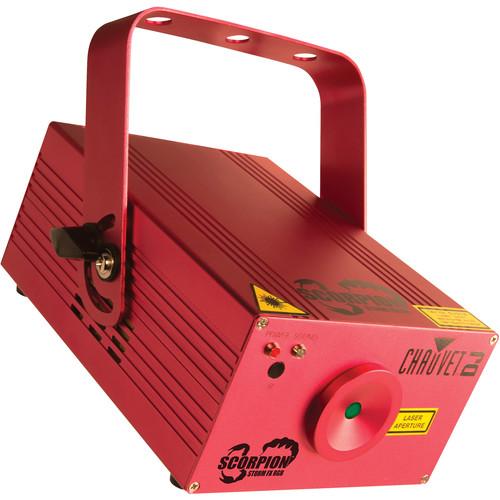

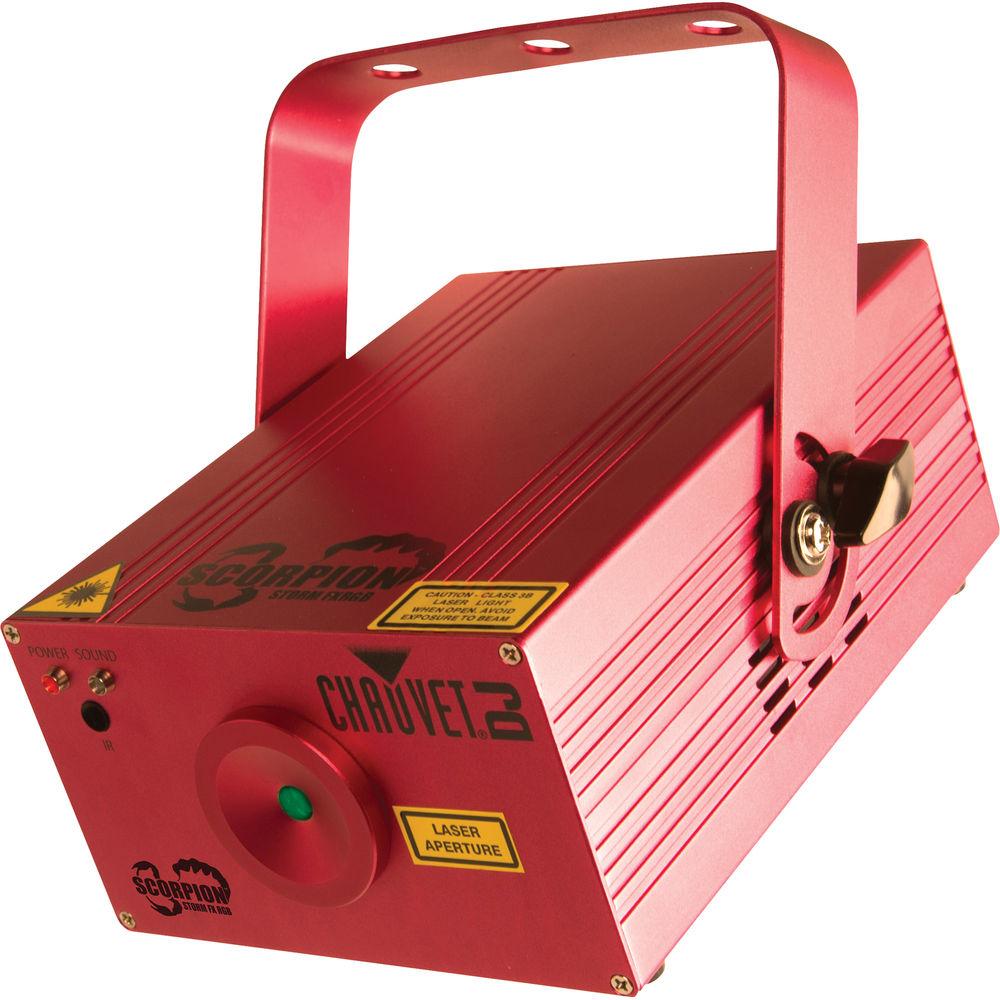

The compact CHAUVET DJ Scorpion Storm FX RGB is a variance-free, tri-color laser fixture, which projects hundreds of multi-colored laser beams and patterns with fast stutter and rotation effects. It features independent controls over the red, green, and blue laser diodes, a coverage angle of 100°, and automated programs, ideal for adding excitement to your dance floor, with or without fog (available separately).The Scorpion Storm FX RGB comes with a wireless remote which provides on/off control, auto-mode settings, sound-activation settings, as well as color selection, speed, and strobe. - Key Features
-
- Compact, tri-colored laser fixture projects hundreds of red, green, and blue laser beams and patterns
- Create customized looks with independent control of red, green, and blue laser diodes – with or without DMX
- Variance-free laser fixture, ready to use right out of the box
- 1 x DMX channel mode
- 100° coverage angle
- Use included IR wireless remote to trigger modes and colors
- Built-in, sound-activated and automated programs
- Strobe, stutter, rotation effects
- Stand-alone or master/slave configuration

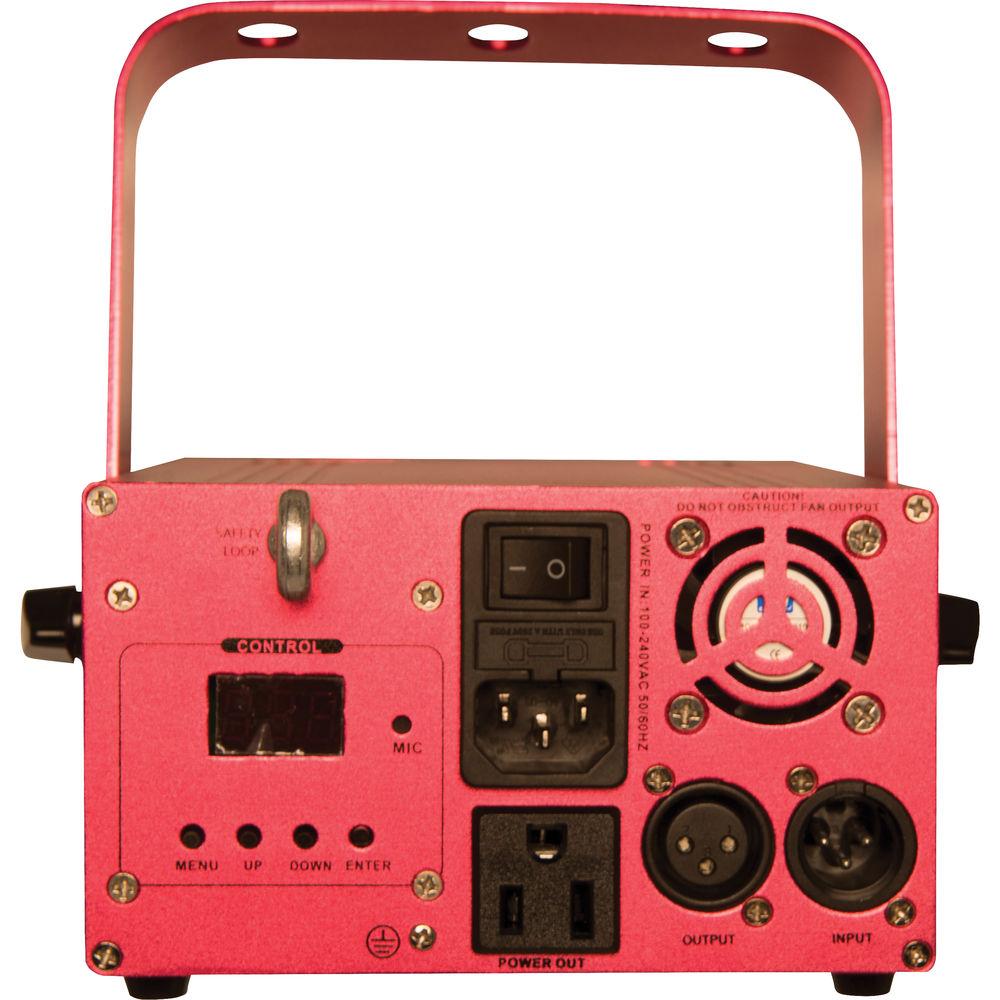

- LED display with 4-button menu for easy navigation
- Save time running cables and extension cords by power-linking up to 33 units at 120V or 55 units at 230 V
- Single-yoke mounting bracket
- Multi-voltage operation: 100-240 VAC, auto-ranging
UPC: 781462211141 In the Box CHAUVET DJ Scorpion Storm FX RGB Tri-Color Laser with Wireless Remote Power Cord IR Remote Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Scorpion Storm FX RGB Tri-Color Laser with Wireless Remote in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Scorpion Storm FX RGB Specs | Light Source | Red: 650 nm / 100 mW laser diode
Green: 532 nm / 40 mW laser diode
Blue: 450 nm / 100 mW laser diode
Class 3R lasers | | Coverage Angle | 100° | | Operating Modes | Stand-alone, sound-active
Master/slave
DMX | | Wireless Control | IR Remote (Included): On/off control, auto-mode settings, sound-activation settings, color selection, speed, and strobe | | Effects | Auto-programs
Color selection
Variable strobe
Stutter
Rotation | | DMX Channels | 7 | | DMX Connectors | 3-pin XLR, in/out | | Power Linking | 33 Units, 8 A at 120 VAC
55 Units, 8 A at 230 VAC | | Power Requirements | 100-240 VAC, 50/60 Hz, auto-ranging | | Power Connectors | Input: 1 x IEC
Output: 1 x Edison | | Power and Current | 120 VAC, 60 Hz: 26 W, 0.24 A
230 VAC, 50 Hz: 31 W, 0.14 A | | Fuse | T 1 A, 250 V | | Thermal Rating | Maximum External Temperature: 95°F / 35°C
Cooling System: Fan-cooled | | Approvals and Compliance | Classified per EN/IEC 60825-1:2007
Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
Approvals: CE, FDA | | Working Position | 9.8' / 3 m vertical separation between floor and fixture
9.8' / 3 m horizontal separation between audience and fixture | | Dimensions (L x W x H) | 9.1 x 7.6 x 7.5" / 231.1 x 193.0 x 190.5 mm | | Weight | 3.8 lb / 1.7 kg | | | | Package Weight | 5.4 lb | | Box Dimensions (LxWxH) | 10.7 x 8.8 x 6.0" |
