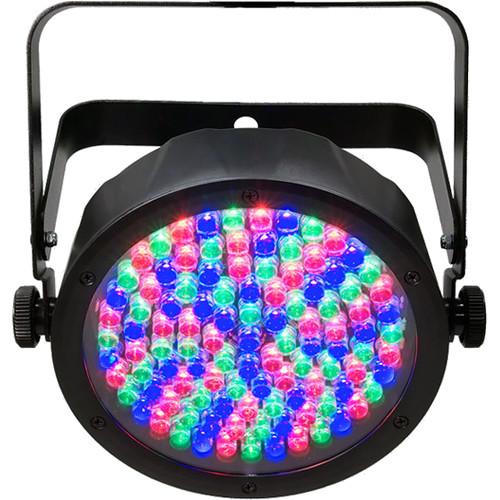

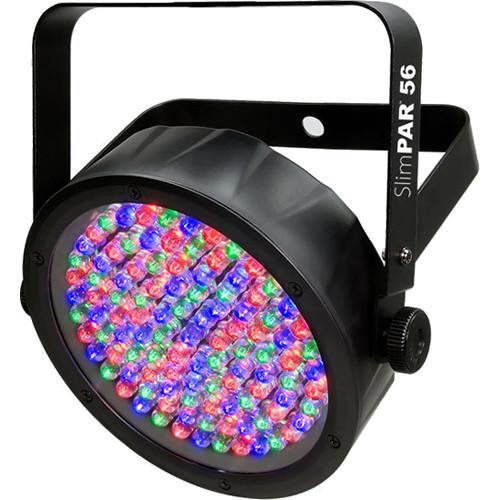

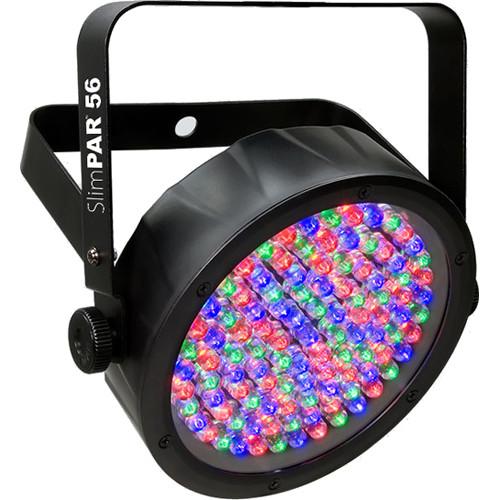

Product description The SlimPACK 56 LT Kit from CHAUVET is a mobile LED lighting setup designed to provide RGB color mixing and eye-catching effects. It includes four SlimPar 56 LED wash lights, three 5' DMX cables, four IEC power cords, and a carrying bag. - SlimPAR 56 - RGB LED PAR Wash Light (Black) The black CHAUVET DJ SlimPAR 56 is an RGB LED PAR wash light with a slim, 2.2" low profile and 108 LEDs (red, green, and blue). The fixture is an ideal choice for architectural illumination, object accenting, and mood lighting in nightclubs, restaurants, bars, and more. The SlimPAR 56 offers automated programs such as Sound-Active, Auto Program, Strobe, RGB Dimming, and Static Color for fast setup in standalone mode, as well as DMX mode for in-depth control. The master/slave option lets you coordinate multiple fixtures without the need for a controller. Other features include flicker-free operation (ideal when used for video applications) and an auto-ranging power supply. You can also daisy-chain power for up to 50 units at 120V. The fixture comes equipped with a double-bracket yoke, which can be used for conventional mounting to a truss or to create a variable-angle floor stand.
- Key Features
-
- 108 x 10mm RGB LEDs (red, green, blue), for bright color washes
- Compact, low-profile fixture fits most places
- Ideal for quiet applications due to silent operation and no moving parts
- 14° beam angle, 23° field angle
- Two DMX channel modes – 3 or 7
- Electronic dimmer – 0-100%
- Variable strobe – slow/fast
- Operation modes – Static Color, Auto Program, Sound-Active, RGB Dimming, DMX-Controlled
- Color macros – convenient access to RGB color mixing and static colors without DMX
- Produce eye-catching effects with built-in automated programs via Master/Slave or DMX mode
- Standalone versatility with multiple user-configurable settings
- Flicker-free light for use with video applications
- LED display with 4-button menu for easy navigation
- Daisy-chain power for up to 50 units at 120V
- Compatible with the Satellite battery-operated system (available separately)
- Multi-voltage operation – 100-240 VAC, 50/60 Hz
- Includes hanging bracket with mounting hardware
UPC: 781462204631 - 3-Pin DMX Cable (Black, 5') This black Chauvet 5' 3-Pin DMX Cable is specifically made for lighting, and meets stringent standards of suitability and quality to provide safety, shielding, and prevention of transmission interference. UPC: 781462203450
- IEC Power Cable (Black, 8') This 8', black Chauvet IEC Power Cable is made specifically for lighting products. It meets strict quality to provide safety and is shielded to prevent the transmission of interference. UPC: 781462203443
- CHS-SP4 -Vip Gear Bag For 4-Piece SlimPAR 56 and Obey 3 DMX Controller The Chauvet CHS-SP4-Vip Gear Bag For 4-Piece Slimpar 56 and Obey 3 DMX Controller is a custom designed carrying bag intended for storing and transporting up to four SlimPAR light fixtures, an Obey 3 DMX controller, and all the necessary interconnecting cables. The bag features five padded internal compartments for each fixture and the DMX controller. It also features two external compartments for cables and other accessories. UPC: 781462206918

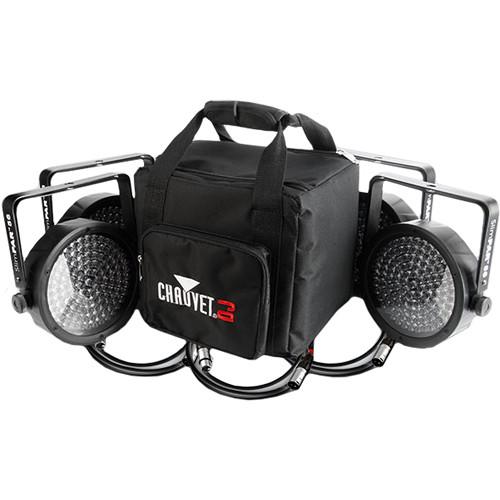

In the Box Bundle Items 4 x SlimPAR 56 - RGB LED PAR Wash Light (Black) eyvbuwxutxydsfbvas - Hanging Bracket with Mounting Hardware
3 x 3-Pin DMX Cable (Black, 5') eyvbuwxutxydsfbvas 4 x IEC Power Cable (Black, 8') CHS-SP4 -Vip Gear Bag For 4-Piece SlimPAR 56 and Obey 3 DMX Controller
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ SlimPACK 56 LT - RGB LED Light Kit with Bag and Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SlimPAR 56 - RGB LED PAR Wash Light (Black)
| Light Source | 108 x 10 mm RGB LEDs (36 x red, 36 x green, 36 x blue)
Current: 3 x 20 mA
Life Expectancy: 100,000 hours | | Beam and Field Angle | Beam Angle: 14°
Field Angle: 23° | | Illuminance | 876 lux at 6.5' (2.0 m) | | PWM Frequency | 1200 Hz | | DMX | DMX Channels: 3, 7
DMX Connectors: 3-pin XLR, in/out | | Dimming | 0-100%, electronic | | Operational Modes | Variable strobe, fast/slow
Static Color with color macros
Sound-Active
Auto Program
Standalone
Master/Slave
DMX-controlled | | Power Linking | 50 x units at 120 V
100 x units at 230 V | | Power Connectors | IEC, in/out | | Input Voltage | 100-240 VAC, 50/60 Hz, auto-ranging | | Power Consumption | 87 W, 0.2 A at 120 V, 60 Hz
27 W, 0.1 A at 230 V, 50 Hz | | Fuse | F 1 A, 250 V | | Maximum Operating Temperature | 104°F / 40°C
Cooling System: Convection | | Approvals | CE, MET | | Dimensions | 9.5 x 8.8 x 2.2" (241 x 224 x 56 mm) | | Weight | 2.7 lb (1.2 kg) | | | | Box Dimensions (LxWxH) | 9.9 x 8.9 x 3.4" | - 3-Pin DMX Cable (Black, 5')
| Length | 5' (1.5 m) | | Pin Configuration | 3-Pin | | | | Box Dimensions (LxWxH) | 8.5 x 7.8 x 1.1" | - IEC Power Cable (Black, 8')
| Connector | IEC | | Length | 8' (2.4 m) | | Pins | 3 | | Gauge | AWG: 16 | | Approvals | CE | | | | Box Dimensions (LxWxH) | 11.0 x 4.0 x 1.0" | - CHS-SP4 -Vip Gear Bag For 4-Piece SlimPAR 56 and Obey 3 DMX Controller
| | | Interior Dimensions | 9.5 x 8.8 x 2.2" / 241 x 224 x 56 mm | | | | Exterior Dimensions (W x H x D) | 9.5 x 8.8 x 15" / 241 x 224 x 381 mm | | Weight | 2 lb / 907 g | | | | Box Dimensions (LxWxH) | 22.3 x 12.25 x 10.35" |
